Tube Rolling Machine/Pipe Rolling Machine/Ring Rolling Machine

Tube Rolling Machine/Pipe Rolling Machine/Ring Rolling Machine thumbnail-1
Tube Rolling Machine/Pipe Rolling Machine/Ring Rolling Machine thumbnail-2
Tube Rolling Machine/Pipe Rolling Machine/Ring Rolling Machine thumbnail-3
Tube Rolling Machine/Pipe Rolling Machine/Ring Rolling Machine photo-1
Tube Rolling Machine/Pipe Rolling Machine/Ring Rolling Machine photo-2

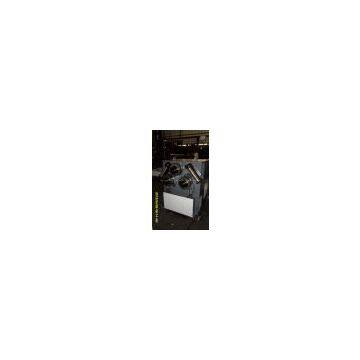

Tube Rolling Machine/Pipe Rolling Machine/Ring Rolling Machine photo-3
US$ 500 - 500 MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
Besco
Place of Origin:
China
Model Number:
ABS
Contact Supplier Request Quote Chat Now
Besco Machinery Industry Ltd
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
7 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name Besco
Place of Origin China
Model Number ABS
The tube rolling machine/pipe rolling machine/ring rolling machine Features:
1.The main three rollers and curvature adjustment of Besco tube rolling machine/pipe rolling machine/ring rolling machines is drove by hydraulic system, which with stability performance.
2.Besco tube rolling machine/pipe rolling machine/ring rolling machines adopt grating ruler for curvature range adjustment, which with high precision. Besco tube rolling machine/pipe rolling machine/ring rolling machines is allowed to adjust curvature either by two rollers meanwhile, or by single roller according to set, which is easy to operate.
3.Besco tube rolling machine/pipe rolling machine/ring rolling machines use touch panel and PLC electrical control system, with advanced technology and stable performance;
4.With fault auto-detecting system and alarm function, and Besco tube rolling machine/pipe rolling machine/ring rolling machines display error information and solving suggestion on screen;
5.Besco tube rolling machine/pipe rolling machine/ring rolling machines equipe counting function, to record the quantity of processed workpieces
6.All bending data can be saved in PLC of Besco tube rolling machine/pipe rolling machine/ring rolling machines as permanent memory, and can be use at any time.
7.Besco tube rolling machine/pipe rolling machine/ring rolling machines have manual, semi-automatic and automatic work mode. Powerful cooling system allows the Besco tube rolling machine/pipe rolling machine/ring rolling machines could be used in tropic area stably;
8.Besco tube rolling machine/pipe rolling machine/ring rolling machines allow to process varies of metal profile, such as angle iron, flat steel, round pipe and other material of abnormal section profile, through change the groove of bending dies;
9.Besco tube rolling machine/pipe rolling machine/ring rolling machines is able to bend large size profile, while no need to make super size bending die.
Parameters:
TPYE(W24Y/W24YPC/W25K-) 30 45 75 100 140 180 260 320 400 500
profile Max.bend section module(cm*2) 30 45 75 100 140 180 260 320 400 500
bending speed(m/min) 5 5 5 5 5 4 4 4 4 4
profile yield limit (Mpa) 250 250 250 250 250 250 250 250 250 250
Max hydraulic pressure(kw) 8 12 14 16 16 16 18 20 25 25
oil pump pressure(kw) 12 16 16 21 21 21 25 31.5 31.5 31.5
measure ment(L*W*H)(M) 1.6*1.2*11 1.8*1.5*1.2 2.1*1.8*1.6 2.2*1.9*1.6 2.5*2.2*1.6 3.1*2.3*1.8 3.6*2.6*1.8 4.0*3.2*2 4.5*3.5*2.2 5.5*4.0*2.5
weight(kg) 3400 5000 7000 9000 11000 16000 23000 30000 36000 4
