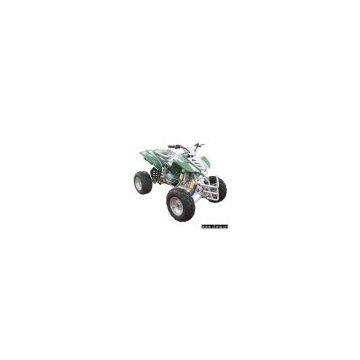

200cc ATV Model (EPA Approved)

Features: 1) Dimensions (L x W x H): 180 x 112 x 113cm 2) Wheelbase: 115cm 3) Engine type: 200cc, single cylinder, water-cooled, 4-stroke 4) Start mode: electric 5) Power: 10.3kW/7,500rpm 6) Max. torque: 15N.m/6,000rpm 7) Max. speed: 75km/h 8) Min. ground clearance: 120mm 9) Dry weight: 155kg 10) Transmission mode: chain 11) Break type (F/R): drum/disc 12) Power source: 12V, 9A 13) Climbing degree: 20 degrees 14) Fuel tank capacity: 4L 15) Front hanging: integral ballonet absorber 16) Rear hanging: inner ballonet absorber 17) Tires: a) Front wheels: 21 x 7 - 10 b) Rear wheels: 20 x 10 - 10 18) Cylinder size: 63.5 x 62.2mm 19) Displacement: 197ml 20) Transmission: 4 gears with one reverse gear, manual clutch 21) Seat height: 880mm 22) Min. turning radius: 2,650mm 23) Parking trig: mechanical lock 24) Ignition mode: CDI 25) Load capacity: 150kg 26) Engine oil: 1.1L 27) Gas cylinder number: 1 28) Max. number of riders: 1 29) Lubrication: press splash 30) Compression proportion: 9.2:1Outer packing: Carton dimensions: 148 x 95 x 88cm Conveyance: Qty/20' GP: 20 units Qty/40' GP: 44 units Qty/40' HQ: 66 units producing area:China payment:T/T, L/C at sight
