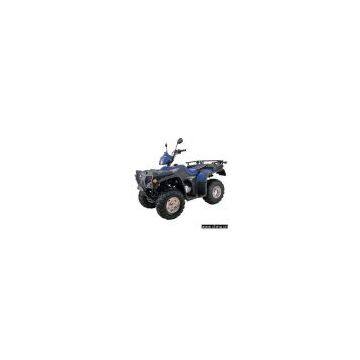

250cc EEC Approved ATV Model

Features:1) Dimensions (L x W x H): 192 x 103 x 120cm2) Wheel base: 116cm3) Engine type: single cylinder, air-cooling, 4-stroke4) Start mode: electric / manual5) Power: 10kW/7,500rpm6) Max. torque: 15N.m/6,000rpm7) Max. speed: 60km/h8) Min. ground clearance: 155mm9) Dry weight: 240kg10) Transmission mode: shaft drive11) Break type (F/R): disc / disc12) Power source: 12V, 14Ah13) Climbing degree: 25?4) Fuel tank capacity: 11L15) Front hanging: arm-swing16) Rear hanging: integral17) Tires: a) Front wheels: 22 x 7 - 10 b) Rear wheels: 22 x 10 - 1018) Cylinder size: 71 x 58mm19) Displacement: 229.6mL20) Transmission: 5 gears, automatic clutch21) Height of seats: 82cm22) Min. turning radius: 290cm23) Parking trig: mechanical lock24) Ignition mode: CDI25) Load capacity: 165kg26) Engine oil: 1.6L27) Gear oil: 0.25L28) Lubrication: press splash29) Gas cylinder number: 130) Max. number of riders: 2Outer packing:Dimensions: 197 x 112 x 88cmConveyance: Qty/20' GP: 10 unitsQty/40' GP: 24 unitsQty/40' HQ: 36 units producing area:China payment:T/T, L/C at sight
