Specifications

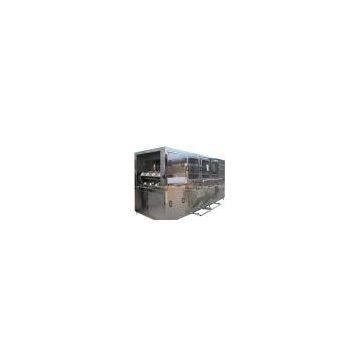

High efficient and stable 3 or 5 gallon filling system range from 120bph to 2000bph, can apply to mineral, pure, still water.
Composition :
-1. Decapper (optional)
-2. Auto-loader
-3. Bottle washer
-4. Filler
-5. Capper
1. Decapper
-After clamping the cap, gas crock move upwards together with piston and complete decapping. By the control of PLC, the machine claw release the cap and the gas crock reach the top.
2. Auto-loader
-Bottles automatic fixed at the carrier rings which holding the bottles on the neck while Bottles are turning upside down by carrier pockets
3. Bottle washer
-Inside and outside recycled washing with detergent temperature adjustable around 70°, with automatic water level control , and temperature is controlled by detect sensors .
- Inside final rinsing with spring water or by ozonized water. (Ozone generator is optional).Two final water rinsing cycles to ensure the cleaning of bottles.
4. Filler
-Overflow-Pressure type filling system controlled by pressure filling structure with very high stability.
-Filling accuracy: 99%
5. Capper
-Linear capping machine for press-on caps, completed with caps distributor, caps chute, releasing head and closing pressing head.
- Before capping is possible to spray into the caps a sterilized solution trough a nozzle located on the cap chute. (Optional) and UV light is equipped to guarantee the sterilization of caps. (Optional)
