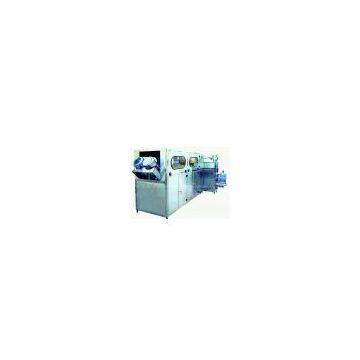

Automatic water bottle and bucket filling machine
- 100 Metric Ton / Metric Tons per Month
- T/T L/C D/P D/A
- 7 days
Product Details
Brand Name: | CHUANYI | Place of Origin: | China | Model Number: | CY |
Product Description
automatic water bottle and bucket filling machine
Automatic bottle and bucket filling machine is based on the introduction of foreign technology, combined with our years of manufacturing experience. The machine combines filling and capping, with scientific and rational design, beautiful shape. It is Easy in maintenance, with high automation. This machine is mainly used for glass hot beverage (juice, tea beverage) filling. Just a little change, but also applies to pure water, mineral water filling.
Automatic bottle and bucket filling machine is divided into seven main parts
filler
Pressure Capping part
worktable and transmission parts
backflow system
electrical, pneumatic parts
centralized lubricating
pipelines, etc
automatic bottle and bucket filling machine structural Characteristics
Frequency transmission, gear box open drive combination
Filling valve with high-precision mechanical filling valve spring
Used to enhance the Sino-oriented institutions
End table with cleaning structure
automatic bottle and bucket filling machine technical Features
a bottom supporting conveyor is used to make the line run more stable and reliable.
b Filling machine with large rotating bearing support structure, so the machine run more smoothly. The use of pressure filling principle makes filling fast, with accurate liquid level. This machine has no bottle no filling characteristics. Only a few micro-adjust the height of the various parts, replacement pieces can be produced to change the filling bottles of different sizes.
c The cap handler is the pneumatic rotary one. Cover the surface without damage, lack of caps automatically fill the caps and so on.
d Machine with centralized lubrication systems. Equipment maintenance,maintenance more convenient and faster..
e Advanced human-machine interface machine operation, PLC control, variable frequency stepless speed regulation and other automatic control technology. Valve does not open without bottles, cap chute covered within the short shut-down. The parts in contact with water are made of high quality stainless steel. Main electrical and pneumatic components are from internationally known manufacturers.
Main Technical Parameters
Filling Heads:32 Capping Heads:10
Capacity(300ml) :10000-12000P/h
Bottle Size
Height:160~330mm Diameter: Φ50~Φ98mm
Cap typ: theft proof cap screw Filling Temperature: 80~90°C
Total Powe: 7.88KW
Dimension:2600X2050X2850(L×W×H)
