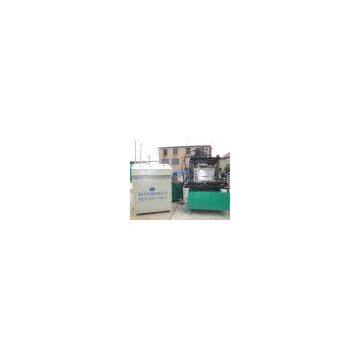

Help CenterC Purlin Steel Cold Roll Forming Machine
Related Products
Detailed Product Description
1.high forming speed,
2.good quality final products,
3.best after-sale service.
C Purlin Steel Cold Roll Forming Machine, C channel machine, roll forming machine, C Purlin Machine,
1. The Chart of Process Flow
Decoiling---active feeding---roll forming----measuring length--- cutting to length---product to stand
2. Main Equipment
Decoiler, main forming machine, hydraulic pressing, hydraulic cutting, product stand, hydraulic system, electric system.
3. Technical Parameters
1) automatic inner tight decoiler
A. Coil inner diameter: 450mm-700mm
B. Max width of coiling: 1200mm
C. Max weight of loading: 5000kg
2) Main forming machine
A. Number of forming steps: depend on the size
B. Material of shaft: 45# steel adjustable treatment. Outer diameter: 70mm
C. Material of roller: High grade 45# steel(plated chrome on surface)
D. Main motor power: 3.7kw
E. Forming speed: 2-6m/min
F. Stand: 350# steel welding
G. The plating chromium of roller surface: 0.05mm
Products Warranty: 12 month, and we will provide the technical support for the whole life of the equipment
Product Name: Z Purlin Roll Forming Machine
Place of Origin: Weifang
Trademark: HIGHFULL
Min. Order: 1/set
Delivery Date: within 30 working days after receiving deposit
Productivity: 30 sets per month
Packing: fit for ocean shipping
Payment Type: T/T, 30% advance payment, balance payment should be paid before delivery
