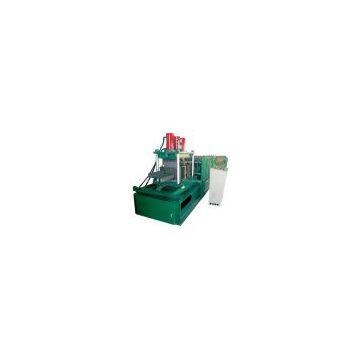

Z Purlin Cold Roll Forming Machine

Detailed Product Description

Z Purlin Steel Cold Roll Forming Machine, Z channel roll forming machine, Z purlin forming machine, roll forming  machine

 Description
1. The Chart of Process Flow
Decoiling---active feeding---roll forming----measuring length--- cutting to length---product to stand
2. Main Equipment
Decoiler, main forming machine, hydraulic pressing, hydraulic cutting, product stand, hydraulic system, electric system.
3. Technical Parameters
1) automatic inner tight decoiler
A. Coil inner diameter:                             450mm-700mm
B. Max width of coiling:                           1200mm
C. Max weight of loading:                         5000kg
2) Main forming machine
A. Number of forming steps: depend on the size
B. Material of shaft: 45# steel adjustable treatment. Outer diameter: 70mm
C. Material of roller: High grade 45# steel(plated chrome on surface)
D. Main motor power:                             3.7kw
E. Forming speed:                                 2-6m/min
F. Stand:                                              350# steel welding
G. The plating chromium of roller surface: 0.05mm

4. Products Warranty: 12 month, and we will provide the technical support for the whole life of the equipment
5. Product Name: Z Purlin Roll Forming Machine
Place of Origin: Weifang
Trademark: HUAFU/HIGHFULL
Min. Order: 1/set
Delivery Date: within 35 working days after receiving deposit
Productivity: 10 sets per month
Packing: fit for ocean shipping
Payment Type: T/T, 30% advance payment, balance payment should be paid before delivery
Export Markets: Global
