Tricycle Carriage Board Cold Formed Steel

Detailed Product Description

1.

       Carriage board molding equipment technical specification

No..1.Profile: (according to customer)

No.. 2.The main production line of institutions:

1.Cantilever type uncoiler................. 1set

2.Guiding device..........                       1set

3.Roll forming machine.................     1piece

4.Cutting system......................     1  set

5.Computer control system................... 1 set

6.Out table.........................            1 set

No.3.Equipment  mainly technological parameters:

1.Material thickness:                              0.6—0.8mm

2.Speed:                                                   0~12m/min

3.Total power :                                         about 10KW(power)

4. Passes :                                               20

No.4.Production flow:

Uncoiler  (Artificial feeding)··guiding··roll forming machine··cutting according to size··out table(Artificial unloading)

  Roll forming machine major parameter:

1 Cantilever type uncolier

(1) Max load :                                               3T

(2) Inner diameter:                                      450~~510mm

(3) Max inner diameter:                               510mm

(4) Max widht of the material :                    600mm

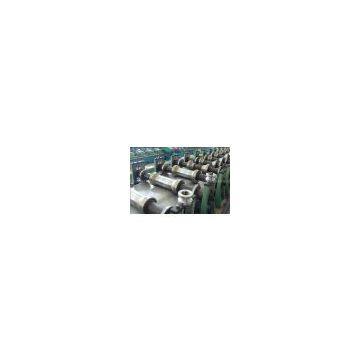

2 Roll forming machine:

(1)20passes roller

(2)shaft diameter:                                         55mm

(3)shaft material :                                          45#

(4)roller material :                                          GCr15

(5)chain wheel :                                              45#.

(6)wallboard  A3 steel,slider (HT200)

(7) reducer :                                                      ZQ350 one set.

(8)Power :                                                           7.5kw.

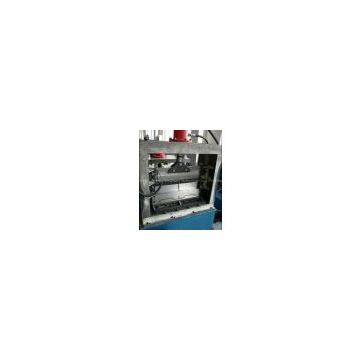

3.cutting system

  It is make up by saw cutting head ,body,walking dolly.Pneumatic device .cutting device.starting system.

4.Scale institutions:

  It is make up by unloader and Pneumatic orientation baffle.

6.electronic control system

It is make up by electric control box,operating table.

No.5.Commerce clause

1.Delivery time :                                              45  work days

2.warranty period:one year after install the machine

4. Payment :                                                      T/T
