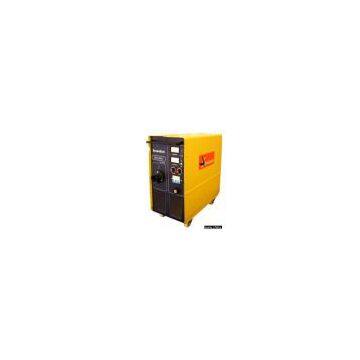

Sell Welding Machine

Model No.:MIG 200Y
Product Origin:China
Brand Name:
Price Terms:
Payment Terms:T/T, L/C
Certification:
Description:Product Name: Welding MachineModel Number: MIG 200YPlace of Origin: ChinaFeatures: 1) Suits for welding thick plate whose thickness is above 0.8mm 2) Low cost, high efficiency and good welding quality 3) Simply operation, economic and practical 4) High welding speed, easy arc-starting 5) Be able to weld continuously and interruptedly 6) Stable current, be able to balance voltage when voltage of power supply is waving 7) Be able to weld mild steel, alloy steel and also other kinds of wires 8) Little splash, deep bath, attractive welding seam 9) Input power voltage frequency (V/Hz): AC 380 (three phase)±15%, 50/60 10) Rate input power capacity (KVA): 6 11) Input current (A): 9.2 12) Rated output current (A): 200 13) Rated output voltage (V): 24 14) Duty cycle (%): 60 15) Output current range (A): 50-200 16) Output voltage range (V): 16.5-24 17) Insulation class B 18) Protection class of case IP21 19) Overall dimensions (mm): 655 x 295 x 610 20) Weight (kg): 35 21) Efficiency (%): 85 22) Feeding speed (m/min): 2.5-13 23) Diameter of coll (mm): 270 24) Post flow time (S): 1±0.5 25) Diameter of wire (mm²): 0.8/1.0 26) Power factor cos dia.: 0.93 27) Earth cable (mm2): ≥2.5 28) Thickness (mm): 0.8 29) Type of wire: reeder inside 30) Main export markets: Eastern Europe, North America, Asia, Western Europe, Australasia
