Lox/Lar/Lin/LN2 Liquid Gas Storage Tank

Name: Lox/Lar/Lin/LN2 Liquid Gas Storage Tank
Brand: Tianyuan
SKU: 145702996
Availability: InStock

Lox/Lar/Lin/LN2 Liquid Gas Storage Tank thumbnail-1

Lox/Lar/Lin/LN2 Liquid Gas Storage Tank photo-1

US$ 9000 - 35000 MOQ: 1 Unit

Key Specifications

Get Latest Price

Brand Name:

Tianyuan

Place of Origin:

China

Model Number:

CFL-100

Contact Supplier Request Quote Chat Now

Xinxiang Tianyuan Pressure Vessel Co., Ltd

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

60 days

Product Details
Company Profile
Contact Us

Brand Name Tianyuan

Place of Origin China

Model Number CFL-100

Certification ISO9001:2008

After-sales Service Provided Engineers available to service machinery overseas

Warranty 24 months

Weight 53T

Dimension(L*W*H) 3500x17000

Condition New

Voltage 100m3

Power(W) 115

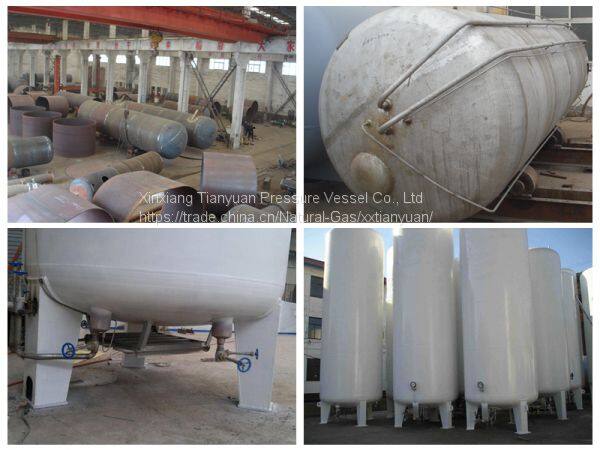

The Cryogenic Storage Tank of LNG, LO2, LN2, LAr
No.	Specification	Dimension Diameter×Height (mm)	Total Weight (KG)	Part Weight(KG)			Design Pressure（MPa）	Design Temperature （℃）	Effective Volume（M³）
No.	Specification	Dimension Diameter×Height (mm)	Total Weight (KG)	0Cr19Ni10	Q235-B	Perlite	Design Pressure（MPa）	Design Temperature （℃）	Effective Volume（M³）
1	CFL-5/0.8	φ1916×5260	4125	1050	2555	10.4M³	0.84	-196	5.0
2	CFL-5/1.6	φ1916×5260	4695	1620	2555	10.4M³	1.68	-196	5.0
3	CFL-10/0.8	φ2316×5980	6470	2280	3440	15M3	0.84	-196	10.0
4	CFL-10/1.6	φ2316×5980	7770	3580	3440	15M3	1.68	-196	10.0
5	CFL-15/0.8	φ2516×6875	8050	2780	4300	19.5M3	0.84	-196	15.0
6	CFL-15/1.6	φ2516×6875	9780	4530	4300	19.5M3	1.68	-196	15.0
7	CFL-20/0.8	φ2516×8630	10140	3600	5240	26M3	0.84	-196	20.0
8	CFL-20/1.6	φ2516×8630	12500	5960	5240	26M3	1.68	-196	20.0
9	CFL-30/0.8	φ2720×10240	15470	5950	8020	30M3	0.84	-196	30.0
10	CFL-30/1.6	φ2720×10240	18585	9075	8020	30M3	1.68	-196	30.0
11	CFL-50/0.8	φ3020×12670	22370	8550	11720	42M³	0.82	-196	50.0
12	CFL-50/1.6	φ3020×12670	26800	12980	11720	42M³	1.68	-196	50.0
13	CFL-100/0.8	φ3524×17040	44020	18400	21870	75M³	0.84	-196	100.0
14	CFL-100/1.6	φ3524×17040	53700	28080	21870	75M³	1.68	-196	100.0
15	CFL-120/0.8	φ3524×20090	50130	20500	25215	88 M³	0.85	-196	120.0
16	CFL-150/0.8	φ3824×21950	66750	26150	35400	104M³	0.8	-196	150.0
The Cryogenic Storage Tank of LCO2
No.	Specification	Dimension Diameter×Height (mm)	Total Weight (KG)	Part Weight(KG)			Design Pressure（MPa）	Design Temperature （℃）	Effective Volume（M³）
No.	Specification	Dimension Diameter×Height (mm)	Total Weight (KG)	16MnD R	Q235-B	Perlite	Design Pressure（MPa）	Design Temperature （℃）	Effective Volume（M³）
1	CFL-5/2.2	φ1916×5260	4980	1820	2310	10.4M³	2.35	-40	5.0
2	CFL-10/2.2	φ2316×5970	7580	3235	3290	15M³	2.35	-40	10.0
3	CFL-20/2.2	φ2316×10165	12630	5880	5250	27M³	2.35	-40	20.0
4	CFL-30/2.2	φ2720×10240	19300	9200	8100	33M³	2.35	-40	30.0
5	CFL-50/2.2	φ3020×12670	28360	14690	11420	42M³	2.35	-40	50.0
6	CFL-100/2.2	φ3624×17040	56010	27050	24100	82M³	2.35	-40	100.0
7	CFL-150/2.2	φ3728×21710	81840	36880	39050	101M³	2.2	-40	150.0

1 Q:What parameter do you company need to quote?
A: Capacity; Medium (LO2,LN2,LAR or LCO2); Working pressure: Vertical or horizontal.
2.Q:Do you company have equipment in stock?
A:Yes, we have normal standard equipment in stock, and we will deliver the equipment in 2 weeks after we get the down payment. If the equipment you need is non-standard, it usually takes more days according to the complexity level of equipment.
3.Q:Are you a production factory or a trading company for this equipment.?
  A: We are a direct factory, we design and manufacture the equipment all by ourselves.

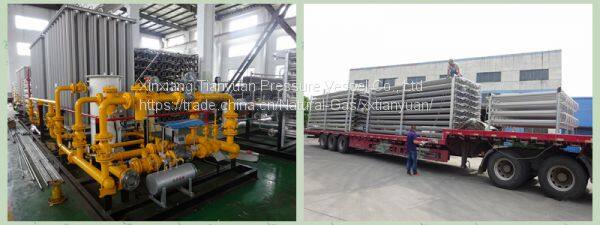

4.Q:Do you provide provide complete filling line?
  A: Yes, our company can supply complete filling lines for the liquid gas, including cryogenic storage tank, filling pump,pipes and vaporizer, etc
5.Q: Do you provide after-sale service?
  A: Yes, period life of the equipment is 12 months. We always test the whole equipment before delivering, If there is any quality problems, we will send our engineer to repair. If the problem is caused by users, we can still offer the after-sales service in charge.
6.Q: What is your production standard?
A: Our products are designed, manufactured and tested as per reference standards of GB150, which is equivalent to ASME VIII, Safety technology supervision regulations of pressure vessels and some other reference Chinese standards.
