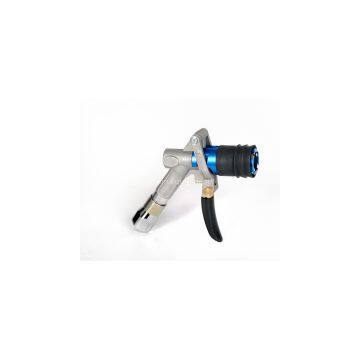

Help CenterLPG-K25U Auto Gas Fueling Nozzle
Related Products
AILELPG Auto Fueling Series Products are designed for the Italian-Type Coupling.Nozzle inlet has 1” NPTthread, all nozzles are designed and manufactured in strictly accordance withengineering standards to ensure LPG fueling safety and efficiency.
Material：
Internal Components: Brass and Steel;
Seals: Specially formulated polymers and elastomersspecific to LPG applications;
External Components:Brass, stainlesssteel, anodized aluminum;
Technical Specifications:
Max working pressure: 350psi (2.4MPa)
LPG Discharge ondisconnect：4.3ml
Weight: 3.08lb(1.40kg);
Locking Release：Trigger;
Coupling Style: Italian-type;
Temperature Range: -40°Fto 185°F
(-40°C to 85°C)
Features & Benefits:
UserFriendly Single Action Operation –Simply nozzle coupling to the receptacle witha single squeeze of the hand to initiate fueling;
AutomaticHammer Lock Technology – With maximum durability, designed specifically forfrequent coupling and uncoupling;
ErgonomicDesign–Insulated handle protects operator from temperature effects created byhigh-flowing LPG; Minimal force required for nozzle coupling;
DurableMaterial and Construction – Heavy duty brass, aluminum and stainless steelconstruction provides excellent corrosion resistance in the harsh fuelingenvironment;
Ease of Use– Incorporated with a single plane 360° inlet swivel;
Safety – Willnot dispense gas until securely coupled onto the receptacle. Once coupled, willnot disconnect until released by operator;
Individually Leak Tested and Inspected;
ReplaceableRubber Cover - deflects venting gasfrom operator’s hand;
Standards：NationalGB 19236-2013
European BS EN13760 2003
