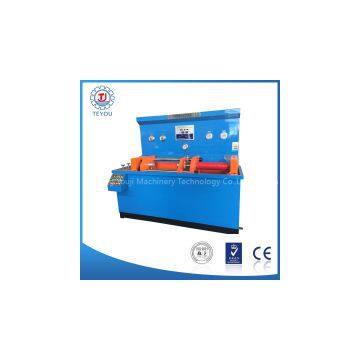

Help CenterDIVING VALVE TEST BENCH
Related Products
-
Hydaulic Valve Test BenchUS$ 10000 - 10000MOQ: 1 Set -
Top Pressure Valve Test StandUS$ 10000 - 10000MOQ: 1 Set
-
Dual Plate Check Valve Test MachineUS$ 10000 - 10000MOQ: 1 Piece
-
Clamping Valve Testing BenchUS$ 10000.00 - 10000.00MOQ: 1 Piece
-
Welding Valve Testing BenchUS$ 10000.00 - 10000.00MOQ: 1 Piece
Zhejiang YOUJI Machinery Technology Co.,Ltd.
valve testing
valve test bench
Technical performance and feature
● It's suitable for the pressure performance test of the small bore flange type, welding type,
internal and external thread type forge steel valves, fully meet the GB/T 13927-2008, JB/T 9092-99,
the API 598 requirements.
● It has the grip pressure hold and top press clamp type operation. Sink the test parts into the water tank,
which can lift up and down, especially suitable for gas pressure test, with the simple operation and use.
● The system equips with the high and low pressure water pump device to be used for
the test medium circulation storage.
● The pressure trial medium is water, air and kerosene that can be selected freely by users.
● During the course of presseure protection of water or air test, any button can not work under
the condition of which the tested valve cavity has high pressure, it can work nornmally until leaking
the pressure to no pressure (make sure safety while working).
● The test bench is equipped with an automatic oil pressure discharge system. As it is used,
a high pressure condition and pressure discharge condition can be changed over to effectively
reduce the oil temperature, elongate life of the test bench and save energy.
● It sets the pressure trial safe protective device.
● It can match with computer detection data management system.
