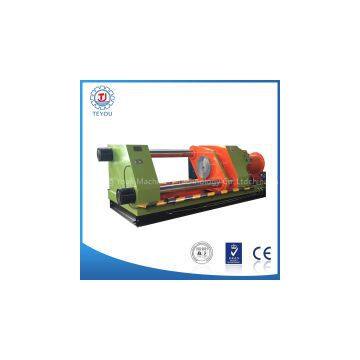

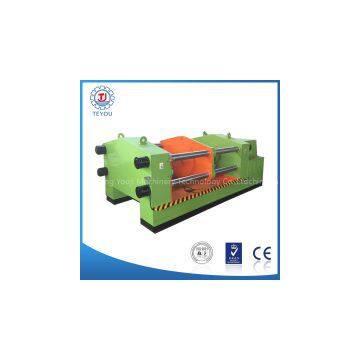

Help CenterTop Pressure Valve Test Stand
Related Products
-
Dual Plate Check Valve Test MachineUS$ 10000 - 10000MOQ: 1 Piece -
Clamping Valve Testing BenchUS$ 10000.00 - 10000.00MOQ: 1 Piece
-
Welding Valve Testing BenchUS$ 10000.00 - 10000.00MOQ: 1 Piece
-
Vertical Valve Testing BenchUS$ 10000.00 - 10000.00MOQ: 1 Piece
-
Butterfly Valve Testing BenchUS$ 10000.00 - 10000.00MOQ: 1 Piece
Zhejiang YOUJI Machinery Technology Co.,Ltd.
valve testing
valve test bench
Technical performance and feature
● It's mostly suitable for the welding valve and as well as uses to flange and thread valve extra-high pressure
under the condition ofmatching with the plane seal plate, high and middle pressure performance test,
adopts the hydraulic oil cylinder tip press method tocarry out the clamp operation, fully meet the
GB/T 13927-2008, JB/T 9092-99, the API 598 requirements.
● The system equips with the high and low pressure water pump device to be used for the test medium
circulation storage.
● The pressure trial medium is water, air and kerosene that can be selected freely by users.
● During the course of presseure protection of water or air test, any button can not work under the condition
of which the tested valve cavity has high pressure, it can work nornmally until leaking the pressure to no
pressure (make sure safety while working).
● The test bench is equipped with an automatic oil pressure discharge system. As it is used, a high pressure
condition and pressuredischarge condition can be changed over to effectively reduce the oil temperature,
elongate life of the test bench and save energy.
● It sets the pressure trial safe protective device.
● It can match with computer detection data management system.
