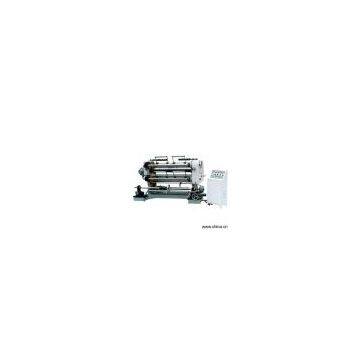

Help CenterSeparating & Cutting Machine(vertical Type)
Related Products
-
Die Cutting and Creasing MachineNegotiableMOQ: 1 Set -
Die Cutting and Creasing MachineNegotiableMOQ: 1 Set
-
Automatic Granular Packaging MachineNegotiableMOQ: 1 Set
-
Vertical Separating and Cutting MachineNegotiableMOQ: 1 Set
-
Automatic Teabag Hang Thread & Label Packing MachineNegotiableMOQ: 1 Set
Scope of Application:
This machine is suitable for cutting plastic film, grass paper, regular paper and aluminum foil. etc.
1, Main frame: both wall board and base are made of cast iron.
2, Moto: driven by magneapplied speed-adjusting motor
3, Unwind:1, rotated type bearing supporting, Fixed by taper bush and the horizontal movement is adjustable.
2, The unwinding tension is controlled by magnet powder brake
3, Photoelectric-mode deviation correction tracing system.
4, Rewind, 1, Air-expansion shaft supporting, the rewinding tension is controlled by magnet powder clutch
5, Slitting speed: 160m/min, machine will stop when arrives at the presetted quantity of meter counter.
6, accuracy deviation correcting system
7, The unwinding shaft adopts air-expansion shaft,
9, The aluminum roller with high hardness treatment.
Main Technical Parameters:
|
Max. diameter(mm) |
600/600 |
|
Max. width(mm) |
1000/1300 |
|
Inner core diameter(mm) |
76 |
|
Min. Cutting width(mm) |
20 |
|
Speed(m/min) |
160 |
|
Accuracy of adjustment(mm) |
1 |
|
Power(kw) |
3.8/4.8 |
|
Weight(kg) |
1500 |
|
Overall dimensions(L×W×H mm) |
2200×1300×1500/ |
