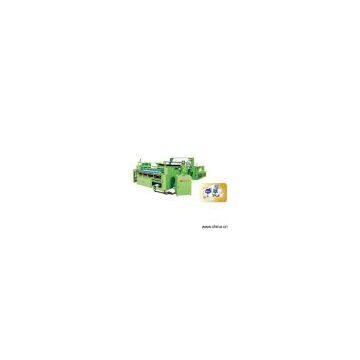

Sell Automatic Rewinding Punching Machine

Model No.:ZDJ-XJ (1092-2800)
Product Origin:China
Brand Name:
Price Terms:
Payment Terms:
Certification:
Description:1. Features: the whole machine adopts thick armor plate construction, flat belt, synchronous belt and gear driving, PLC controlling, frequency speed controlling, LCD touch screen display, automatic tension controlling and mechanical or pneumatic feeding. It features economical, high efficiency and energy saving 2. Technical parameters: A. Main part (1) Model: 1092, 1575, 1760, 2500, 2800 (2) Parent roll width: 1,300mm, 1,700mm, 1,800mm, 2,400mm, 2,700mm (3) Parent roll core: 3 inches (dia. 76mm) (other sizes to be ordered) (4) Parent roll diameter: dia. 1,200mm (other sizes to be ordered) (5) Unloading stand: two (others to be ordered) (6) Product size: dia. 80- 130mm (other sizes to be ordered), adjustable tightness (6) Perforating pitch: 90-130mm adjustable (other sizes to be ordered) (7) Product core: dia. 35- 55 adjustable (8) Controlling system: PLC controlling, frequency speed controlling and LCD touch screen display, electric-eye inspecting (9) Trimming and tail-gluing device: intermission stops, inside automatic trimming and tail-gluing (10) Production speed: 120-200m/min (speed differs according to different parent roll) (11) Installed power: AC 380V, 50Hz, 5.5-11kW (12) Air pressure: 0.6MPa (prepared by the purchaser) B. Optional parts: (1) Embossing device: steel-to-steel roller (model 1092, 1575, 1760), steel to rubber, or steel to wool roller (2) Tension controlling: automatically (3) Edge-embossing device: independently adjusting
