Sell Jumbo Roll Slitting Machine

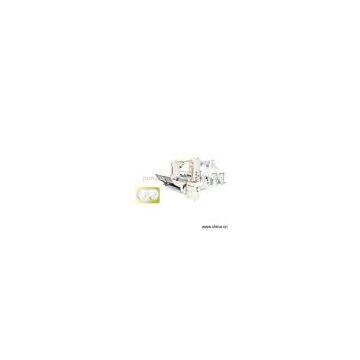

Sell Jumbo Roll Slitting Machine photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Trading Company
Year Established:
1997
Total Employees:
101 - 200 People
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
7 days
Model No.:PZJ-III
Product Origin:China
Brand Name:
Price Terms:
Payment Terms:
Certification:
Description:Product Name: Jumbo Roll Slitting MachineModel Number: PZJ-IIIPlace of Origin: ChinaMain features: PZJ-III jumbo roll slitting machine rewinds and slits the parent roll into 2-4 plies tissue rolls of different sizes, which are used to being folded into napkin, handkerchief and box-packing tissue enjoying high performance, compact structure, steady running and easy operation. It can also be equipped with embossing and printing device Technical parameters: (1) Model: 1575, 1760, 2500, 2850 (2) Parent roll width: 1,700mm, 1,900mm, 2,400mm, 2,750mm (3) Parent rol: 13-22g/sq.m. tissue paper (4) Parent roll diameter: max. dia.1,200mm (other sizes to be ordered) (5) Parent roll core: 3" (dia.76mm) (other sizes to be ordered) (6) Unloading stand: two (other sizes to be ordered) (7) Tension controlling system: cone pulley manual adjusting (8) Sheet diameter: max. dia.1,300mm (other sizes to be ordered) (9) Sheet width: adjustable, min. 150mm (10) Rewinding system: pneumatic expanding shaft rewinding, edge absorbing device (11) Installed power: AC 380V 50Hz, 7.5-30kW (main motor) (12) Air pressure: 0.5Mpa (prepared by the purchaser) (13) Production speed: 200-300m/min (speed differs according to different parent rolls) Optional parts (1) Calendaring device: steel-to-steel or steel to rubber roller (2) Pneumatic unloading device: min. unloading size dia.800mm
