Sell High Speed Slitting and Rewinding Machine

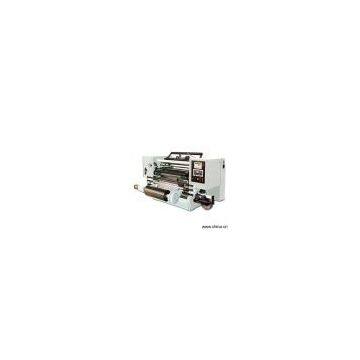

Sell High Speed Slitting and Rewinding Machine photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Trading Company
Year Established:
1999
Total Employees:
101 - 200 People
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
7 days
Model No.:GFQ-1300B
Product Origin:China
Brand Name:Jianshe
Price Terms:FOB, CIF, CFR, CPT, CIP, DDU
Payment Terms:T/T, L/C at sight
Certification:
Description:Product Name: High Speed Slitting and Rewinding MachineModel Number: GFQ-1300BPlace of Origin: ChinaThis machine is suitable for slitting and rewinding such materials as BOPP, PET, PVC, PE, aluminum foil and paper. Integrating advanced mechanical, electrical, optical and pneumatic technology and components, this model has proven to have high operational speed, high stability, and high slitting neatness. Specifications: 1) Material thickness: 0.012 - 0.15mm 2) Mechanical speed: 600m/min 3) Unwinding diameter: Φ3" or 6" / 700mm 4) Max. unwinding width: 1300mm 5) Width of final roll: 50 - 1300mm 6) Rewinding diameter: Φ3" / 148mm 7) Deviation-rectifying method: photoelectric track, track edge, track line 8) Automatic tension control method: constant / varied tension 9) Total power: 15kW 10) Machine weight: 3600kg 11) Overall dimensions: 3050 x 1950 x 1650mm Performance and features: 1) Whole machine is controlled by PLC system: a) Working parameters can be set using touch screen interface b) LCD screen display is used to monitor operational status c) Functions: start buffer, meter counter 2) Automatic tension control system maintains constant unwinding tension 3) Taper control can also control unwinding tension according to slitting requirements 4) 'MITSUHASHI' brand LPC photoelectric automatic alignment system imported from Japan enables edge position control 5) Track edge and track line automatically ensure the correct position of the running material 6) Shaftless pneumatic clutch for unwinding roll loading 7) Optional hydraulic pressure lift utility 8) Main drive and rewinding section is separately driven by two vector control motors 9) Rewinding tension is controlled by the automatic PLC digital taper system according to the preset parameters and rewinding diameter 10) Air differential shaft rewinding roller 11) Slip force automatically adjusts multi-rollers to accommodate various material thicknesses
