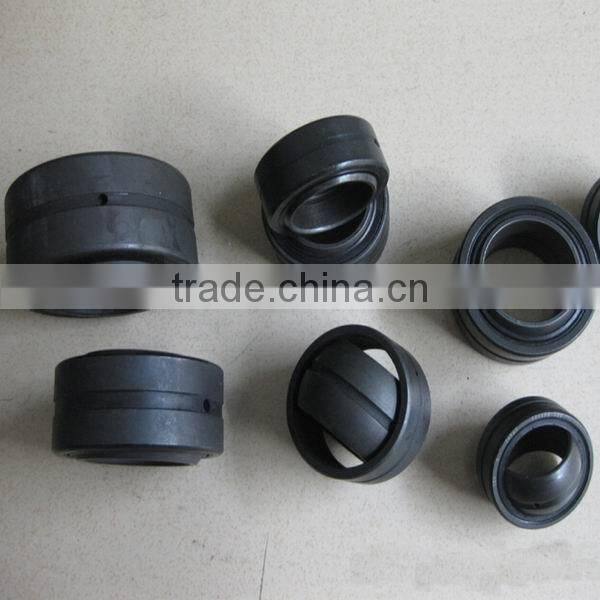

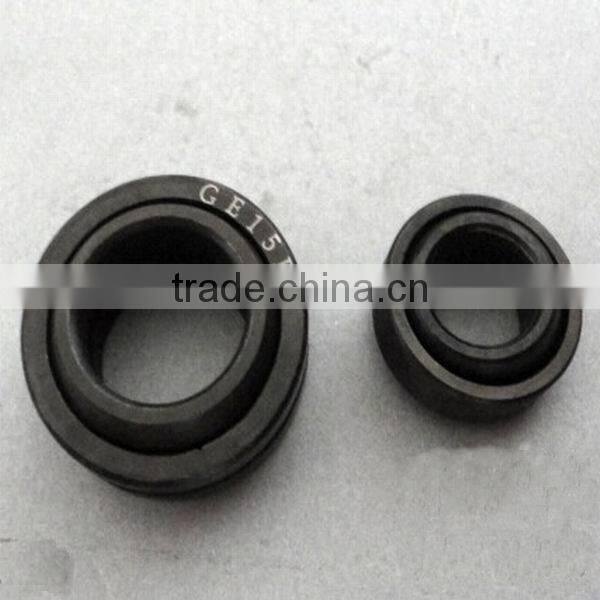

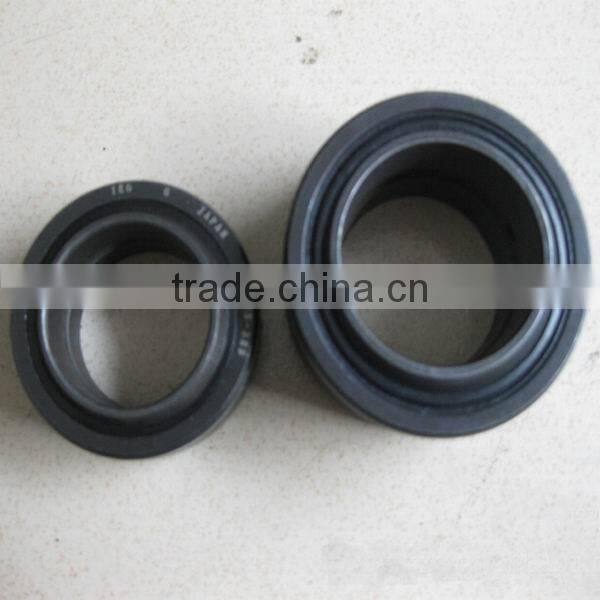

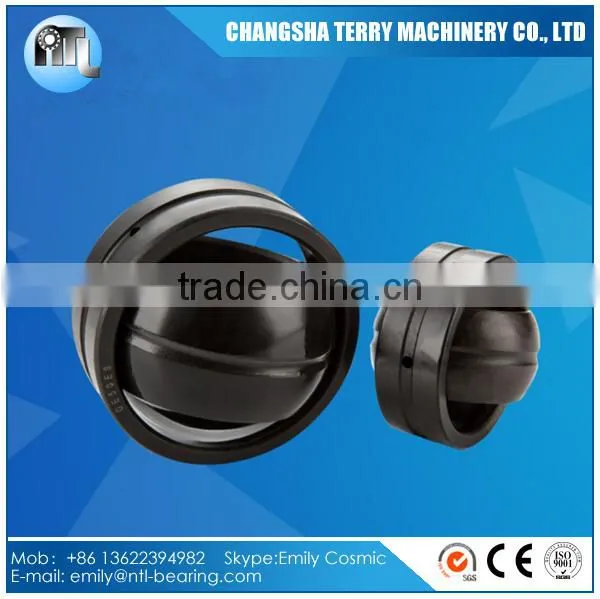

GE50ES Choose Size Steel Series Spherical Plain Bearing
Feature
Radial spherical plain bearings have an inner ring with a sphered convex outside diameter and an outer ring with a correspondingly sphered but concave inside surface. Their design makes them particularly suitable for bearing arrangements where alignment movements between shaft and housing have to be accommodated, or where oscillating or recurrent tilting or slewing movements must be possible at relatively slow sliding speeds.
Application
1. Hydraulic Cylinders
2. Metal Forming Machinery
3. Construction Machinery
4. Automation Equipment
5. Auto Shock Absorbers
6. Hydraulic Machinery
Contact information
Changsha Terry Machinery Co.,Ltd
Attn: Emily
E-mail: emily at
Skype: Emily Cosmic
Datasheet
| Item No. | d | D | B | C | dk | Angle | Weight |
| mm | mm | mm | mm | mm | Alpha | kg | |
| GE4E | 4 | 12 | 5 | 3 | 8 | 16 | 0.003 |
| GE5E | 5 | 14 | 6 | 4 | 10 | 1 | 0.005 |
| GE6E | 6 | 14 | 6 | 4 | 10 | 13 | 0.004 |
| GE8E | 8 | 16 | 8 | 5 | 13 | 15 | 0.008 |
| GE10E | 10 | 19 | 9 | 6 | 16 | 12 | 0.011 |
| GE12E | 12 | 22 | 10 | 7 | 18 | 10 | 0.015 |
| GE15ES | 15 | 26 | 12 | 9 | 22 | 8 | 0.025 |
| GE16ES | 16 | 30 | 14 | 10 | 25 | 10 | 0.038 |
| GE17ES | 17 | 30 | 14 | 10 | 25 | 10 | 0.041 |
| GE20ES | 20 | 35 | 16 | 12 | 29 | 9 | 0.061 |
| GE25ES | 25 | 42 | 20 | 16 | 35.5 | 7 | 0.11 |
| GE30ES | 30 | 47 | 22 | 18 | 40.7 | 6 | 0.14 |
| GE35ES | 35 | 55 | 25 | 20 | 47 | 6 | 0.22 |
| GE40ES | 40 | 62 | 28 | 22 | 53 | 7 | 0.3 |
| GE45ES | 45 | 68 | 32 | 25 | 60 | 7 | 0.4 |
| GE50ES | 50 | 75 | 35 | 28 | 66 | 6 | 0.54 |
| GE60ES | 60 | 90 | 44 | 36 | 80 | 6 | 1 |
| GE70ES | 70 | 105 | 49 | 40 | 92 | 6 | 1.5 |
| GE80ES | 80 | 120 | 55 | 45 | 105 | 6 | 2.2 |
| GE90ES | 90 | 130 | 60 | 50 | 115 | 5 | 2.7 |
| GE100ES | 100 | 150 | 70 | 55 | 130 | 7 | 4.3 |
| GE110ES | 110 | 160 | 70 | 55 | 140 | 6 | 4.7 |
| GE120ES | 120 | 180 | 85 | 70 | 160 | 6 | 8 |
| GE140ES | 140 | 210 | 90 | 70 | 180 | 7 | 11 |
| GE160ES | 160 | 230 | 105 | 80 | 200 | 8 | 13.5 |
| GE180ES | 180 | 260 | 105 | 80 | 225 | 6 | 18.5 |
| GE200ES | 200 | 290 | 130 | 100 | 250 | 7 | 28 |
| GE220ES | 220 | 320 | 135 | 100 | 275 | 8 | 35.5 |
| GE240ES | 240 | 340 | 140 | 100 | 300 | 8 | 40 |
| GE260ES | 260 | 370 | 150 | 110 | 325 | 7 | 50 |
| GE280ES | 280 | 400 | 155 | 120 | 350 | 6 | 64 |
| GE300ES | 300 | 430 | 165 | 120 | 375 | 7 | 75 |
Welcome to enquire for more details!
