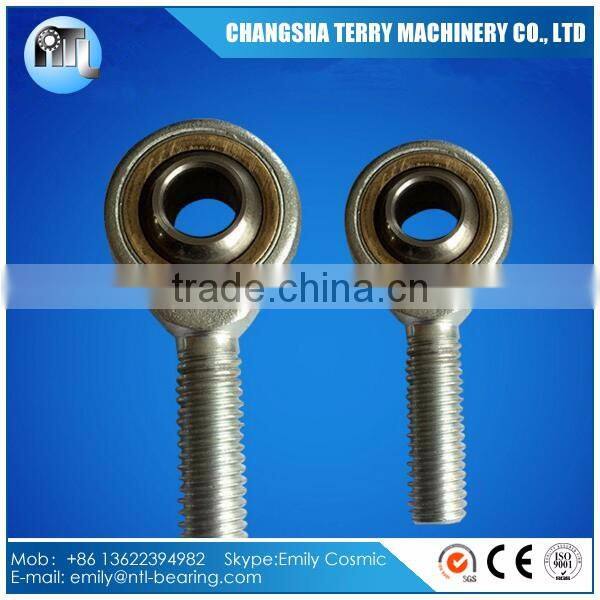

POSB5 Male Heim Joint Imperial Right Hand Thread Rod End
Joint bearing structure is simpler than the rolling bearing structure. its consist mostly of an inner ring with external sphere and an outer ring with internal sphere. Joint bearing is generally used in low speed swinging motion (namely, the angular motion. Due to the spherical sliding surface, it can make tilting motion in a certain angle range (namely, the heart movement), even if the non-concentricity between the supporting shaft and the shaft shell hole is bigger, it can still work normally.
Feature
1. Bearings with a stretching rod, stretching with right or left-hand male thread.
2. To plate zinc on the surface of rod body, the housing with a lubricartion hole or a grease nipple.
Application
It is widely used in the industry of engineering hydraulic oil cylinder, metal forming machine, engineering machinery, automation equipment, auto damper, Water Conservancy Machine and so on.
Datasheet
| Bearing Number | Dimensions(mm) | Load ratings (N) | ≈a° | Unit Weight (kg) | |||||||||
| d | d2 | B | C1 | d3 | L2 | L1 | h | d1 | Dynamic | Static | |||
| POSB3 | 0.19 | 0.625 | 0.312 | 0.25 | 0.19 | 1.536 | 0.75 | 1.25 | 0.306 | 780 | 1120 | 13 | 0.014 |
| 4.826 | 15.88 | 7.92 | 6.35 | -32UNF | 39.7 | 19.05 | 31.75 | 7.77 | |||||
| POSB4 | 0.25 | 0.75 | 0.375 | 0.281 | 0.25 | 1.937 | 1 | 1.562 | 0.355 | 1030 | 2040 | 13 | 0.023 |
| 6.35 | 19.05 | 9.53 | 7.14 | -28UNF | 49.2 | 25.4 | 39.67 | 9.02 | |||||
| POSB5 | 0.3125 | 0.875 | 0.437 | 0.344 | 0.3125 | 2.312 | 1.25 | 1.875 | 0.447 | 1530 | 3270 | 13 | 0.036 |
| 7.938 | 22.23 | 11.1 | 8.74 | -24UNF | 58.72 | 31.75 | 47.63 | 11.35 | |||||
| POSB6 | 0.375 | 1 | 0.5 | 0.406 | 0.375 | 2.438 | 1.25 | 1.938 | 0.517 | 2080 | 4980 | 13 | 0.054 |
| 9.525 | 25.4 | 12.7 | 10.31 | -24UNF | 61.93 | 31.75 | 49.23 | 13.13 | |||||
| POSB7 | 0.4375 | 1.125 | 0.562 | 0.437 | 0.4375 | 2.688 | 1.375 | 2.125 | 0.586 | 2520 | 6020 | 13 | 0.077 |
| 11.11 | 28.58 | 14.27 | 11.1 | -20UNF | 68.28 | 34.93 | 53.98 | 14.88 | |||||
| POSB8 | 0.5 | 1.312 | 0.625 | 0.5 | 0.5 | 3.094 | 1.5 | 2.438 | 0.698 | 3300 | 8370 | 13 | 0.127 |
| 12.7 | 33.32 | 15.88 | 12.7 | -20UNF | 78.59 | 38.1 | 61.93 | 17.73 | |||||
| POSB10 | 0.625 | 1.5 | 0.75 | 0.562 | 0.625 | 3.375 | 1.625 | 2.625 | 0.839 | 4500 | 9050 | 13 | 0.186 |
| 15.875 | 38.1 | 19.05 | 14.27 | -18UNF | 85.73 | 41.28 | 66.68 | 21.31 | |||||
| POSB12 | 0.75 | 1.75 | 0.875 | 0.687 | 0.75 | 3.75 | 1.75 | 2.875 | 0.978 | 6410 | 12700 | 13 | 0.295 |
| 19.05 | 44.46 | 22.23 | 17.45 | -16UNF | 95.25 | 44.45 | 73.03 | 24.84 | |||||
| POSB16 | 1 | 2.75 | 1.375 | 1 | 1.25 | 5.5 | 2.125 | 4.125 | 1.269 | 13300 | 19500 | 13 | 1.129 |
| 25.4 | 69.85 | 34.93 | 25.4 | -12UNF | 139.7 | 53.98 | 104.8 | 32.23 | |||||
Welcome to enquire for more details!
