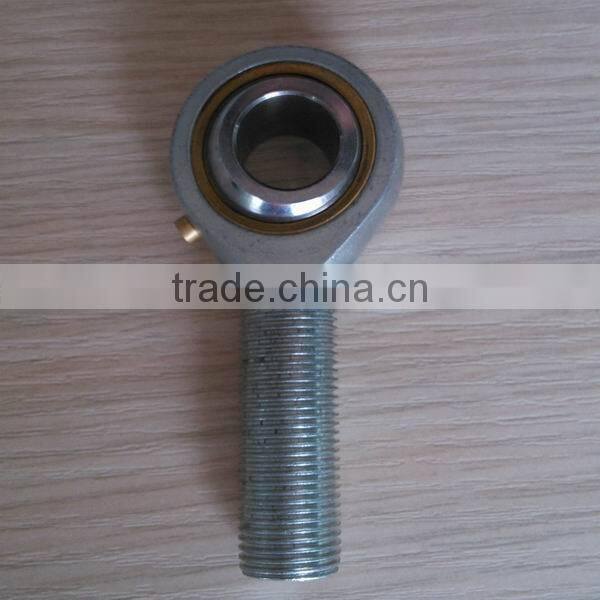

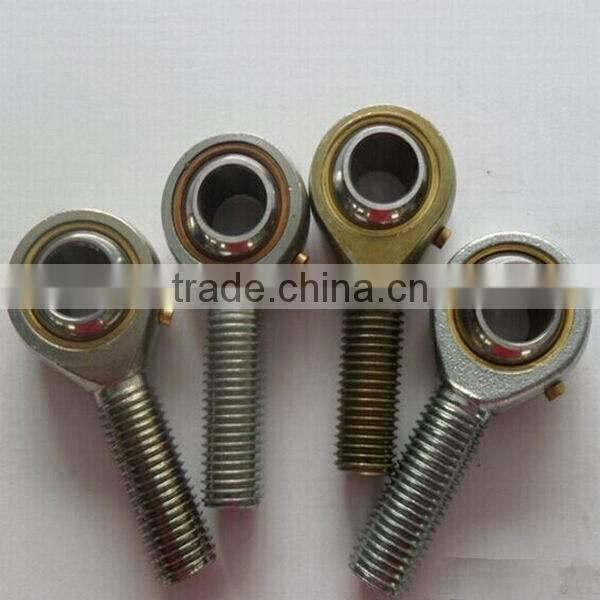

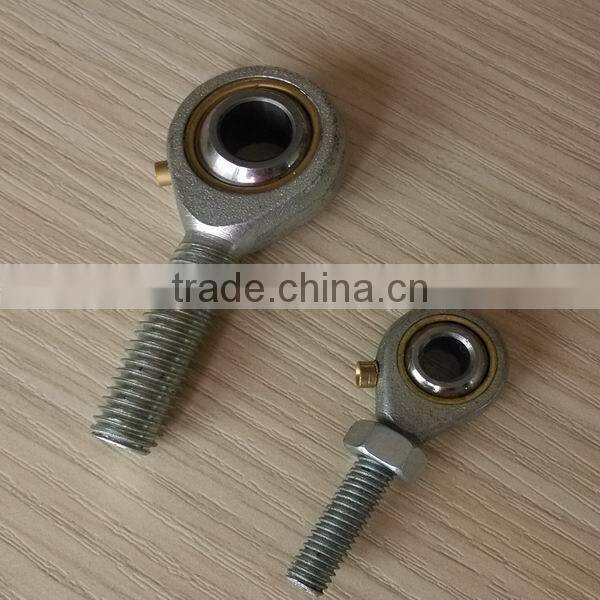

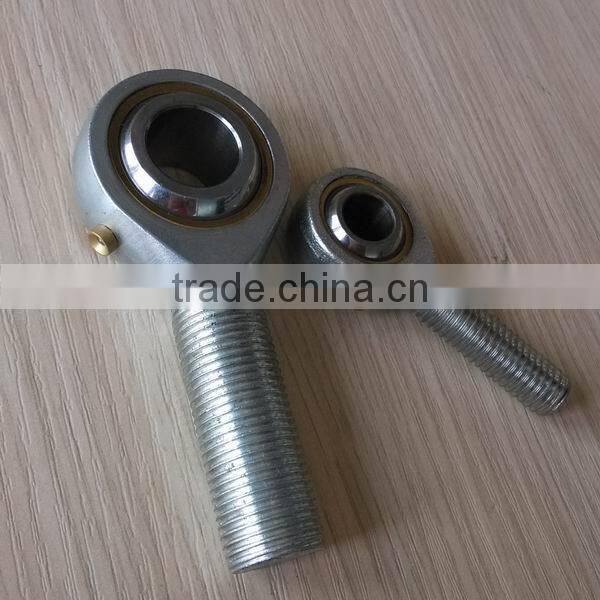

POS8 steel ball metric male threaded rod end bearings
Introduction
Joint bearing is a kind of special structure of sliding bearing. It is simple in structure than the rolling bearing, which is mainly composed of a spherical inner ring and a spherical outer ring, can bear larger load, according to the different types and structures, can be combined load to bear radial load, axial load and radial, axial exist at the same time.
Feature
1. Bearings with a stretching rod, stretching with right or left-hand male thread.
2. To plate zinc on the surface of rod body, the housing with a lubricartion hole or a grease nipple.
Application
It is widely used in the industry of engineering hydraulic oil cylinder, metal forming machine, engineering machinery, automation equipment, auto damper, Water Conservancy Machine and so on.
Datasheet
| Item No. | Dimensions mm | Load ratings KN | Weight | ||||||||||||
| d | d3 | B | C1 | l1 | d2 | h | l2 | dk | R1s | d1 | α° | C | Co | ≈kg | |
| max | max | max | max | min | ≈ | ||||||||||
| POS5 | 5 | M5 | 8 | 6 | 20 | 18 | 33 | 42 | 11.11 | 0.3 | 7.7 | 13 | 3.25 | 5.7 | 0.013 |
| POS6 | 6 | M6 | 9 | 6.75 | 23 | 20 | 36 | 46 | 12.7 | 0.3 | 8.9 | 13 | 4.3 | 72 | 0.02 |
| POS8 | 8 | M8 | 12 | 9 | 25 | 24 | 42 | 54 | 15.875 | 0.3 | 10.3 | 14 | 7.2 | 11.6 | 0.03 |
| POS10 | 10 | M10 | 14 | 10.5 | 30 | 26 | 48 | 61 | 19.05 | 0.3 | 12.9 | 13 | 10 | 14.5 | 0.055 |
| POS12 | 12 | M12 | 16 | 12 | 34 | 30 | 54 | 69 | 22.225 | 0.3 | 15.4 | 13 | 13.4 | 17 | 0.085 |
| POS14 | 14 | M14 | 19 | 13.5 | 37 | 34 | 60 | 77 | 25.4 | 0.3 | 16.8 | 16 | 17 | 24 | 0.14 |
| POS16 | 16 | M16 | 21 | 15 | 41 | 40 | 66 | 86 | 28.575 | 0.3 | 19.3 | 15 | 21.6 | 28.5 | 0.21 |
| POS18 | 18 | M18X1.5 | 23 | 16.5 | 45 | 44 | 72 | 94 | 31.75 | 0.3 | 21.8 | 15 | 26 | 42.5 | 0.28 |
| POS20 | 20 | M20X1.5 | 25 | 18 | 48 | 48 | 78 | 102 | 34.925 | 0.3 | 24.3 | 14 | 31.5 | 52.5 | 0.38 |
| POS22 | 22 | M22X1.5 | 28 | 20 | 52 | 54 | 84 | 111 | 38.1 | 0.3 | 25.8 | 15 | 38 | 57 | 0.48 |
| POS25 | 25 | M24X2 | 31 | 22 | 58 | 60 | 94 | 124 | 42.85 | 0.3 | 29.5 | 15 | 47.5 | 68 | 0.64 |
| POS28 | 28 | M27X2 | 35 | 24 | 63 | 66 | 103 | 136 | 47.6 | 0.3 | 33.7 | 15 | 58 | 75.5 | 0.96 |
| POS30 | 30 | M30X2 | 37 | 25 | 67 | 70 | 110 | 145 | 50.8 | 0.3 | 34.8 | 17 | 64 | 88 | 1.1 |
Welcome to enquire for more details!
