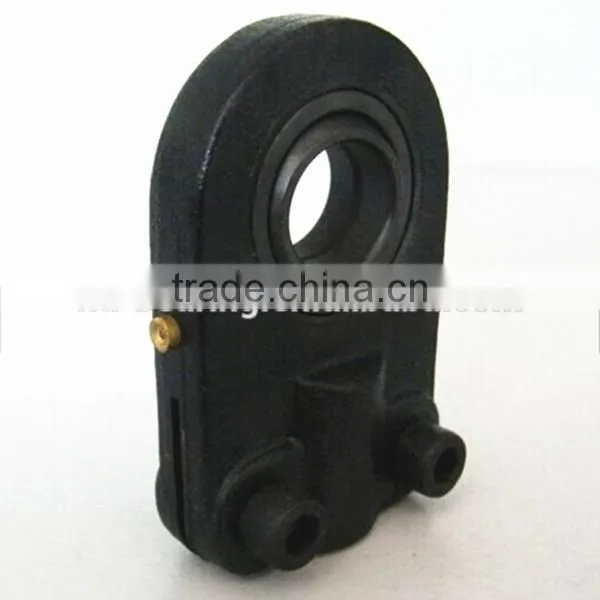

GK50DO Hydraulic Cylinder Rod End Bearing

GK50DO Hydraulic Cylinder Rod End Bearing thumbnail-1
GK50DO Hydraulic Cylinder Rod End Bearing photo-1
US$ 0.1 - 10 MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
NTL
Bore Size:
5, 100
Model Number:
GK50DO
Contact Supplier Request Quote Chat Now
Changsha Terry Machinery Co., Ltd.
Gold Verified Supplier
5Yrs
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name NTL
Bore Size 5, 100
Model Number GK50DO
Precision Rating high precsion

Hydraulic cylinder rod ends bearing



Part # Dimensions mm Load ratings kN Weight
kg
  d B C1 d3 d4 L3 d2 L4 h1 L7 C2 d5 dyn. stat.
        6H   min.       min.     C C0
GIHN-K12LO* 12 12 11 M12x1.25 16.5 17 32 54 38 14 11 32 10.8 24.5 0.1
GIHN-K16LO 16 16 14 M14x1.5 21 19 40 64 44 18 14 40 17.6 36.5 0.2
GIHN-K20LO 20 20 17 M16x1.5 25 23 47 77 52 22 17 47 30 48 0.4
GIHN-K25LO 25 25 22 M20x1.5 30 29 58 96 65 27 19 54 48 78 0.66
GIHN-K32LO 32 32 28 M27x2.0 38 37 71 118.5 80 32 22 66 67 114 1.2
GIHN-K40LO 40 40 33 M33x2.0 47 46 90 146 97 41 26 80 100 204 2.1
GIHN-K50LO 50 50 41 M42x2.0 58 57 109 179.5 120 50 32 96 156 310 4.4
GIHN-K63LO 63 63 53 M48x2.0 70 64 136 213 140 62 38 114 255 430 7.6
GIHN-K70LO 70 70 57 M56x2.0 80 76 155 245 160 70 42 135 315 540 9.5
GIHN-K80LO 80 80 66 M64x3.0 90 86 168 270 180 78 48 148 400 695 14.5
GIHN-K90LO 90 90 72 M72x3.0 100 91 185 296 195 85 52 160 490 750 17
GIHN-K100LO 100 100 84 M80x3.0 110 96 210 322 210 98 62 178 610 1060 28
GIHN-K110LO 110 110 88 M90x3.0 125 106 235 364 235 105 62 190 655 1200 32
GIHN-K125LO 125 125 102 M100x3.0 135 113 260 405 260 120 72 200 950 1430 43



Part # Dimensions mm Load ratings kN Weight kg
  d C1 B d2 L6 h2 dk d1 D L8 dyn. stat.
                      C C0
GF20DO 20 19 16 50 63 38 29 24.2 35 2 30 67 0.35
GF25DO 25 23 20 55 72.5 45 36 29.3 42 2 48 69.5 0.53
GF30DO 30 28 22 65 83.5 51 41 34.2 47 2 62 118 0.87
GF35DO 35 30 25 83 102.5 61 47 39.8 55 2 80 196 1.5
GF40DO 40 35 28 100 119 69 53 45 62 3 100 300 2.4
GF45DO 45 40 32 110 132 77 60 50.8 68 3 127 380 3.4
GF50DO 50 40 35 123 149.5 88 66 55.9 75 3 156 440 4.4
GF60DO 60 50 44 140 170 100 80 66.8 90 4 245 570 7.1
GF70DO 70 55 49 164 197 115 92 77.9 105 4 315 695 10.5
GF80DO 80 60 55 180 231 141 105 89.4 120 4 400 780 15
GF90DO 90 65 60 226 263 150 115 98.1 130 4 490 1340 23.5
GF100DO 100 70 70 250 295 170 130 109.5 150 4 610 1500 31.5
GF110DO 110 80 70 295 332.5 185 140 121.2 160 4 655 2160 48.5
GF120DO 120 90 85 360 390 210 160 135.5 180 4 950 3250 79



Part # Dimensions mm Load ratings kN Weight kg
  d B d1 h2 d2 C1 L6 a dyn. stat.
                ≈ C C0
GF20LO 20 20 25 38 50 19 63 4 30 74 0.36
GF25LO 25 25 30.5 45 55 23 72.5 4 48 95 0.54
GF32LO 32 32 38 65 70 27 100 4 62.5 168 1.12
GF40LO 40 40 46 69 100 35 119 4 100 268 2.5
GF50LO 50 50 57 88 123 40 149.5 4 156 362 4.6
GF63LO 63 63 71.5 107 145 50 179.5 4 248 570 9.3
GF70LO 70 70 79 115 164 55 197 4 315 800 11.25
GF80LO 80 80 91 141 180 60 231 4 400 874 15.75
GF90LO 90 90 99 150 226 65 263 4 490 1045 24
GF100LO 100 100 113 170 250 70 295 4 610 1330 33.95
GF110LO 110 110 124 185 295 80 332.5 4 655 1490 49



Part # Dimensions mm Load ratings Weight
kN kg
  d d1 B C1 dk d2 L4 h2 L7 L8 d3 d4 D a dyn. stat.
                  min         ≈ C C0
GK10DO* 10 13.2 9 7 16 29 38.5 24 15 1.5 3 15 19 12 8.15 15.6 0.041
GK12DO* 12 15 10 8 18 34 44 27 18 1.5 3 17.5 22 11 10.8 21.6 0.066
GK15DO 15 18.4 12 10 22 40 51 31 20 2 4 21 26 8 17 32 0.12
GK17DO 17 20.7 14 11 25 46 58 35 23 2 4 24 30 10 21.2 40 0.19
GK20DO 20 24.2 16 13 29 53 64.5 38 27.5 2 4 27.5 35 9 30 54 0.23
GK25DO 25 29.3 20 17 36 64 77 45 33 3 4 33.5 42 7 48 72 0.43
GK30DO 30 34.2 22 19 41 73 87.5 51 37.5 3 4 40 47 6 62 95 0.64
GK35DO 35 39.8 25 21 47 82 102 61 43 3 4 47 55 6 80 125 0.96
GK40DO 40 45 28 23 53 92 115 69 48 4 4 52 62 7 100 156 1.3
GK45DO 45 50.8 32 27 60 102 128 77 52 4 6 58 68 7 127 208 1.8
GK50DO 50 55.9 35 30 66 112 144 88 59 4 6 62 75 6 156 250 2.5
GK60DO 60 66.8 44 38 80 135 167.5 100 72.5 4 6 70 90 6 245 390 3.9
GK70DO 70 77.9 49 42 92 160 195 115 86 5 6 80 105 6 315 510 6.6
GK80DO 80 89.4 55 47 105 180 231 141 98 5 6 95 120 6 400 620 8.7



Part # Dimensions mm Load ratings kN Weight kg
  d d3 d4 L3 B C1 d2 L7 h1 L4 d5 d1 dk a dyn stat
    6H   min       min           ≈ C C0
GIHR-K20DO 20 M16x1.5 25 17 16 19 56 25 50 80 46 24.2 29 9 30 72 0.43
GIHR-K25DO 25 M16x1.5 25 17 20 23 56 28 50 80 46 29.3 35.5 7 48 72 0.48
GIHR-K30DO 30 M22x1.5 32 23 22 28 64 30 60 94 50 34.2 40.7 6 62 106 0.74
GIHR-K35DO 35 M28x1.5 40 29 25 30 78 38 70 112 66 39.8 47 6 80 153 1.2
GIHR-K40DO 40 M35x1.5 49 36 28 35 94 45 85 135 76 45 53 7 100 250 2
GIHR-K50DO 50 M45x1.5 61 46 35 40 116 55 105 168 90 55.9 66 6 156 365 3.8
GIHR-K60DO 60 M58x1.5 75 59 44 50 130 65 130 200 120 66.8 80 6 245 400 5.4
GIHR-K70DO 70 M65x1.5 86 66 49 55 154 75 150 237 130 77.9 92 6 315 540 8.5
GIHR-K80DO 80 M80x2.0 105 81 55 60 176 80 170 265 160 89.4 105 6 400 670 12
GIHR-K90DO 90 M100x2.0 124 101 60 65 206 90 210 323 180 98.1 115 5 490 980 21.5
GIHR-K100DO 100 M110x2.0 138 111 70 70 230 105 235 360 200 109.5 130 7 610 1120 27.5
GIHR-K110DO 110 M120x3.0 152 125 70 80 265 115 265 407.5 220 121.2 140 6 655 1700 40.5
GIHR-K120DO 120 M130x3.0 172 135 85 90 340 140 310 490 257 135.5 160 6 950 2900 76







GK50DO Hydraulic cylinder rod end bearing
