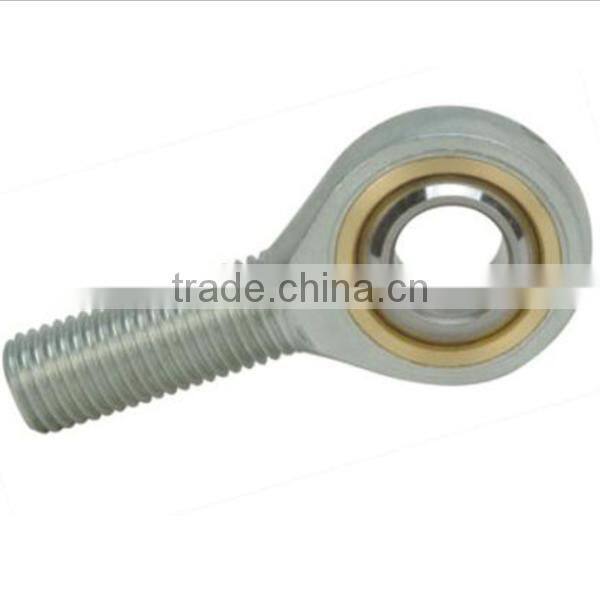

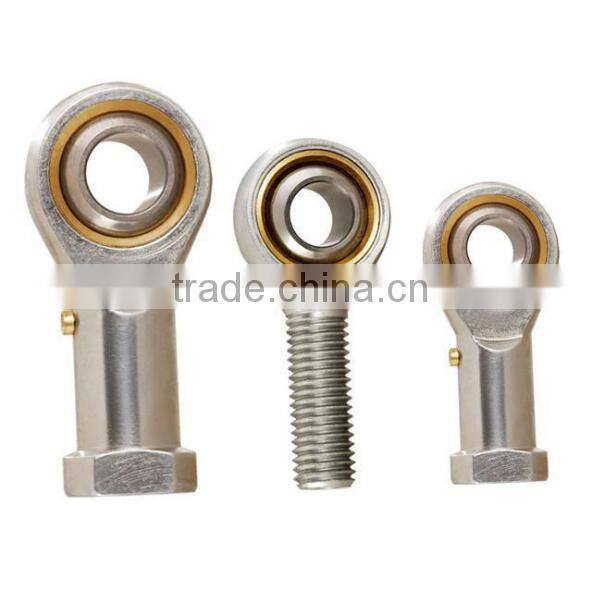

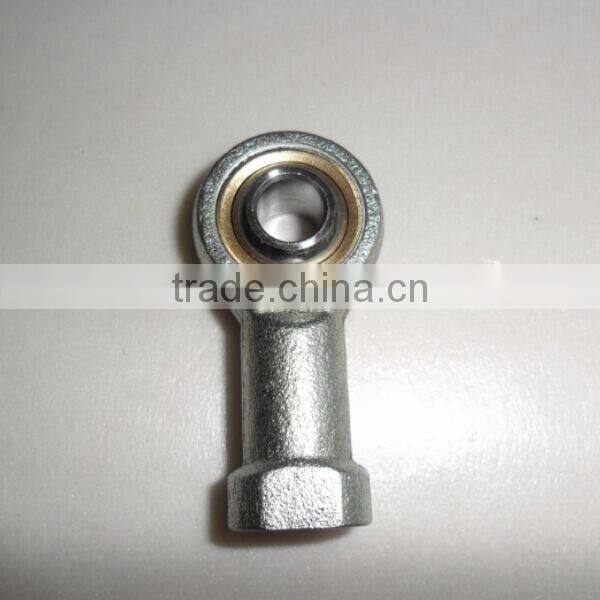

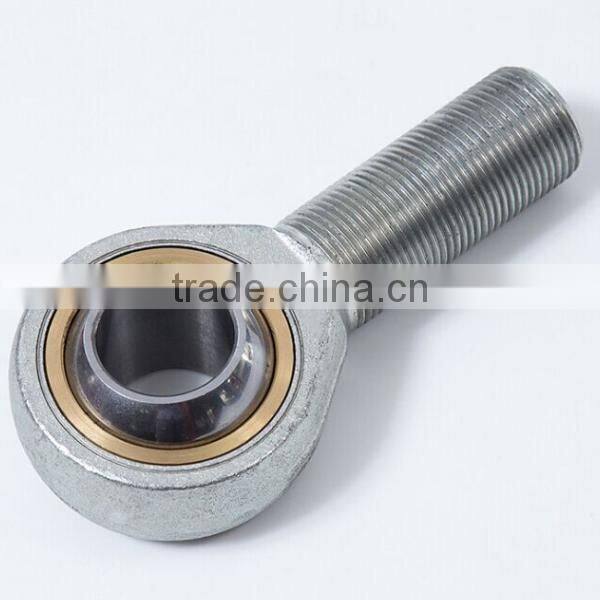

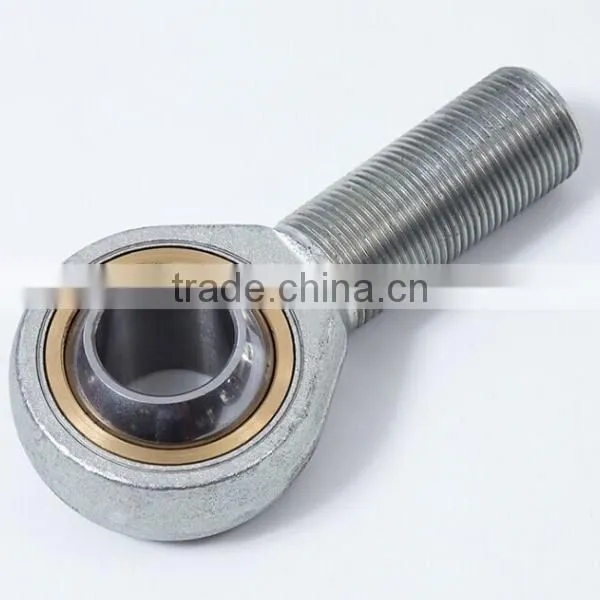

m6*0.8 high precision female rod end bearing SI6T/K
1 Low friction
2 Minimum lubrication
3 Wear resistant
4 Running in not required
5.The surface of spherical plzin with a brnze line
6.To plate zine on the surface of rod body, SF1 materiad on the surface of spherical plain.

specification:
| Types | SI..T/K | |||||||||||||||
| Material | Ball:Chromium Steel GCr15,heat treated,hard chrome plated; Liner:PTFE ; Outer ring:Copper alloy ; Body:Low carbon steel,heat treated,nickle Plated | |||||||||||||||
| Bearing No. | Dimensions (mm) | Basic Load Rating(KN) | Weight (g) | |||||||||||||
| d | d2 | B | C1 | S | d3 | d4 | d5 | L1 | L2 | L | L3 | d1 | Cd | Cs | ||
| SI5T/K | 5 | 18 | 8 | 6 | 9 | M5X0.8 | 9 | 11 | 27 | 10 | 36 | 4.5 | 7.7 | 6 | 7.5 | 18 |
| SI6T/K | 6 | 20 | 9 | 6.75 | 11 | M6X1 | 10 | 13 | 30 | 12 | 40 | 5 | 8.9 | 7.2 | 9.3 | 27 |
| SI8T/K | 8 | 24 | 12 | 9 | 13 | M8X1.25 | 12.5 | 16 | 36 | 16 | 48 | 5 | 10.4 | 11.6 | 16.7 | 46 |
| SI10T/K | 10 | 28 | 14 | 10.5 | 17 | M10X1.5 | 15 | 19 | 43 | 20 | 57 | 6.5 | 12.9 | 14.5 | 23.4 | 76 |
| SI12T/K | 12 | 32 | 16 | 12 | 19 | M12X1.75 | 17.5 | 22 | 50 | 22 | 66 | 6.5 | 15.4 | 17 | 32 | 115 |
| SI14T/K | 14 | 36 | 19 | 13.5 | 22 | M14X2 | 20 | 25 | 57 | 25 | 75 | 8 | 16.8 | 24 | 41.9 | 170 |
| SI16T/K | 16 | 42 | 21 | 15 | 22 | M16X2 | 22 | 27 | 64 | 28 | 85 | 8 | 19.3 | 28.5 | 52.7 | 230 |
| SI18T/K | 18 | 46 | 23 | 16.5 | 27 | M18X5 | 25 | 31 | 71 | 32 | 94 | 10 | 21.8 | 35 | 63.8 | 320 |
| SI20T/K | 20 | 50 | 25 | 18 | 32 | M20X5 | 27.5 | 34 | 77 | 33 | 102 | 10 | 24.3 | 40 | 78.1 | 415 |
| SI22T/K | 22 | 54 | 28 | 20 | 32 | M22X5 | 30 | 37 | 84 | 37 | 111 | 10 | 25.8 | 52 | 97.2 | 540 |
| SI25T/K | 25 | 60 | 31 | 22 | 36 | M24X2 | 33.5 | 42 | 94 | 42 | 124 | 12 | 29.6 | 60 | 122.1 | 750 |
Packing: Industy Packing
According to your requests
Shipping: By Air / By Sea / By Express
