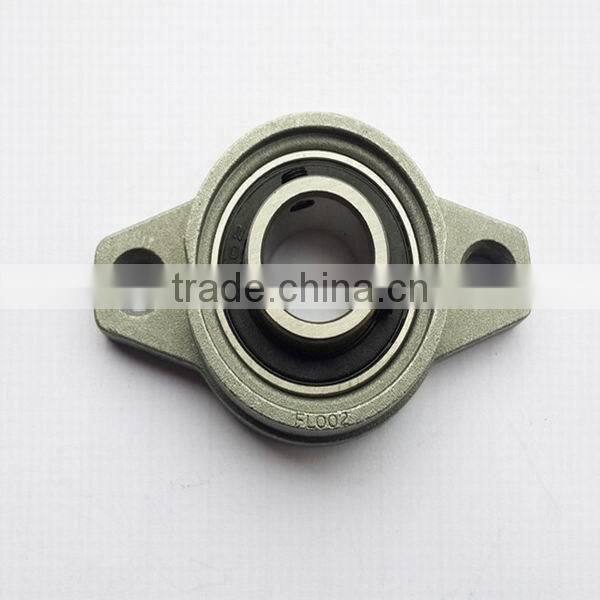

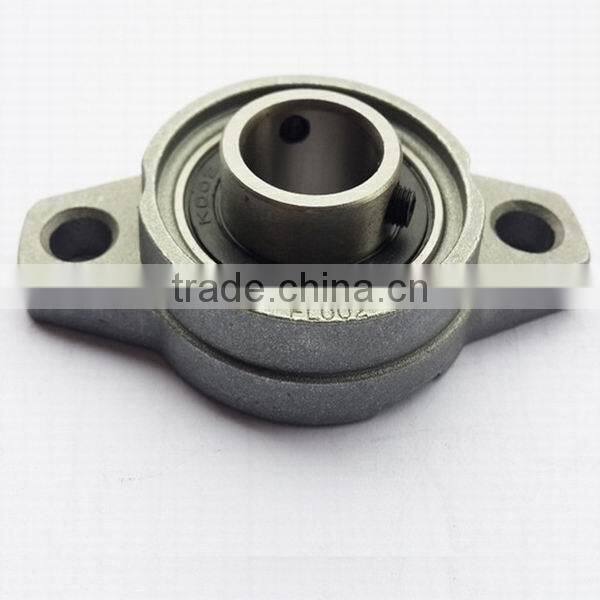

miniature pillow block bearing KFL006
Small Zinc pillow block bearing is a new type of bearing, to join other elements for zinc based alloy bearing.Often add alloy elements are aluminum, copper, magnesium, cadmium, lead, titanium, etc.Zinc base alloy low melting point, good liquidity, easy fusion welding, brazing and plastic processing, in the atmosphere corrosion, deformed material easy to recycle and remelting;But low creep strength, prone to natural aging changes size.The melting method, die casting and pressure processing timber.According to the manufacturing process can be divided into cast zinc-base alloy and deformation of zinc base alloy.
Application:
1.Economical housed bearing solution
2.Light and heavy industrial use Pillow Block Bearing
3.Agricultural and Automotive Pillow Block Bearing
4.Conveyor and Fan assemblies Pillow Block Bearing
5.Fabricated machine assembly Pillow Block Bearing
6.Great value quality parts dispatched the same day
Different types of bearing housings:
1)Pillow blocks – these include UCP, HCP, UCLP, UKP, UCPX, and UKPX.
These mounted bearings are used when support for a rotating shaft axis is required. Their design enables them to support the shaft in operations where the mounting surface is parallel to the shaft axis.
2)Flange type– includes UCF, HCF, UKF, UCFX, UKFX, UCFU, UCFC, UKFC, UCFS, UCFL, UKFL, UCFT.
The flange type bearing housing comes in various shapes and styles such as square, round, and rhombus flange types.
3)Take-up units type - UCT, HCT, and UKT.
These bearing housings have an inner surface which is concave sphered hence the bearing used has a convex sphered outer surface. They are designed to permit moderate initial misplacement. Widely used in conveyor chains and conveyor belts. A sliding slot at the side of the housing facilitates the free movement of the unit.
4)Cartridge type – UCC, HCC, and UKC.
This type of bearing housing has a cylindrical outer perimeter hence the bearing outer bore is spherical. The entire unit allows free movement in the axial direction and is self-aligning. This type can be used as free side bearings for long shafts because they are capable of accommodating shaft expansion or contraction due to temperature differences. Also suitable where there is adjustment of the axial direction is required.
5)Light duty types SAFD, SBFD, SAFW, SBFW, SALF, and SBLF.
| Bearing Unit NO. | Shaft Dia d | Dimensions(mm) | Bearing No. | Housing No. | Housing Wt (kg) | |||||||||
| (mm) | a | e | i | g | l | s | b | z | Bi | n | ||||
| KFL000 | 10 | 60 | 45 | 5.5 | 5.5 | 11.5 | 7 | 36 | 15.5 | 14 | 4 | K000 | FL000 | 0.032 |
| KFL001 | 12 | 63 | 48 | 5.5 | 5.5 | 11.5 | 7 | 38 | 16 | 14.5 | 4 | K001 | FL001 | 0.041 |
| KFL002 | 15 | 67 | 53 | 6.5 | 6.5 | 13 | 7 | 42 | 18.6 | 16.5 | 4.5 | K002 | FL002 | 0.05 |
| KFL003 | 17 | 71 | 56 | 7 | 7 | 14 | 7 | 46 | 19.5 | 17.5 | 5 | K003 | FL003 | 0.068 |
| KFL004 | 20 | 90 | 71 | 8 | 8 | 16 | 10 | 55 | 23 | 21 | 6 | K004 | FL004 | 0.104 |
| KFL005 | 25 | 95 | 75 | 8 | 8 | 16 | 10 | 60 | 24.5 | 22.5 | 6 | K005 | FL005 | 0.11 |
| KFL006 | 30 | 112 | 85 | 9 | 9 | 18 | 13 | 70 | 27 | 24.5 | 6.5 | K006 | FL006 | 0.168 |
if you are interested in this product, please contact me freely.
Attn:connie
Email:connie at
whatsapp:+8615073676619
wechat:empty919
