High Quality Pillow Block Bearing Ucp212 for Agricultural Machinery

High Quality Pillow Block Bearing Ucp212 for Agricultural Machinery thumbnail-1
High Quality Pillow Block Bearing Ucp212 for Agricultural Machinery thumbnail-2
High Quality Pillow Block Bearing Ucp212 for Agricultural Machinery photo-1

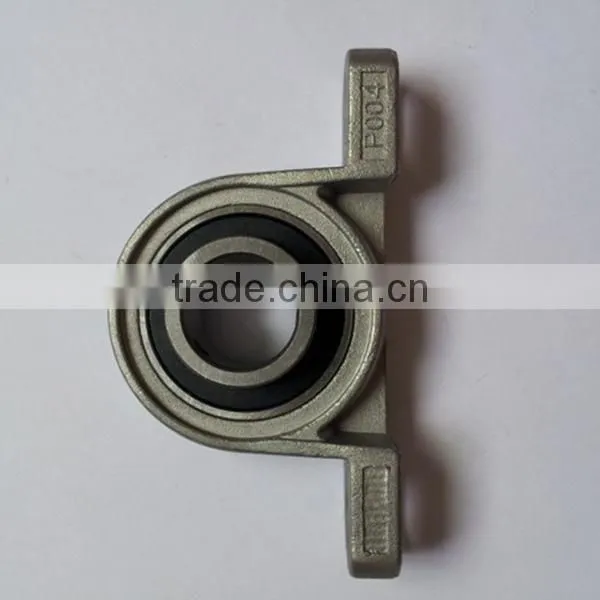

High Quality Pillow Block Bearing Ucp212 for Agricultural Machinery photo-2
US$ 7.5 - 9 MOQ: 100 Pieces
Key Specifications
Get Latest Price
Bore Size:
80,
Brand Name:
NTL
Model Number:
UCP216
Contact Supplier Request Quote Chat Now
Changsha Terry Machinery Co., Ltd.
Gold Verified Supplier
5Yrs
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Bore Size 80,
Brand Name NTL
Model Number UCP216
Place of Origin Zhejiang, China
 China Manufacturer Pillow Block Bearing UCP 216


Product Description



Pillow blocks are usually referred to the housings which have a bearing fitted into them and thus the user need not purchase the bearings separately. Pillow blocks are usually mounted in cleaner environments and generally are meant for lesser loads of general industry.

The fundamental application of both types is the same which is to mount bearings safely enabling their outer ring to be stationary while allowing rotation of the inner ring. The housing is bolted to a foundation through the holes in the base. Bearing housings are either split type or unsplit type. Split type housings are usually two piece housings where the cap and base can be detached, while certain series are one single piece housings. Various seals are provided to prevent dust and other contaminants from entering the housing. Thus the housing provides a clean environment for the expensive bearings to freely rotate, hence increasing their performance and duty cycle.

Bearing housings are usually made of grey cast iron. However various grades of metals can be used to manufacture the same.




Different types of bearing housings

1)Pillow blocks – these include UCP, HCP, UCLP, UKP, UCPX, and UKPX.

These mounted bearings are used when support for a rotating shaft axis is required. Their design enables them to support the shaft in operations where the mounting surface is parallel to the shaft axis.

2)Flange type– includes UCF, HCF, UKF, UCFX, UKFX, UCFU, UCFC, UKFC, UCFS, UCFL, UKFL, UCFT.

The flange type bearing housing comes in various shapes and styles such as square, round, and rhombus flange types.

3)Take-up units type - UCT, HCT, and UKT.

These bearing housings have an inner surface which is concave sphered hence the bearing used has a convex sphered outer surface. They are designed to permit moderate initial misplacement. Widely used in conveyor chains and conveyor belts. A sliding slot at the side of the housing facilitates the free movement of the unit.

4)Cartridge type – UCC, HCC, and UKC.

This type of bearing housing has a cylindrical outer perimeter hence the bearing outer bore is spherical. The entire unit allows free movement in the axial direction and is self-aligning. This type can be used as free side bearings for long shafts because they are capable of accommodating shaft expansion or contraction due to temperature differences. Also suitable where there is adjustment of the axial direction is required.

5)Light duty types  SAFD, SBFD, SAFW, SBFW, SALF, and SBLF.


Pillow block application:

Pillow block used for agricultural machinery , transportation systems or construction machinery , textile machinery , ceramics machinery



high quality pillow block bearing ucp212 for Agricultural Machinery

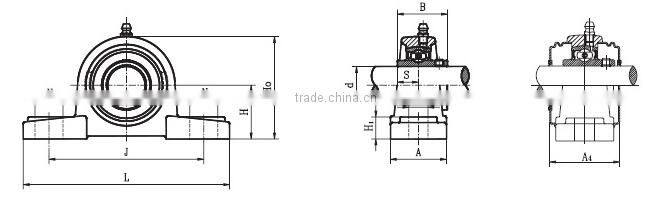

Unit No. Dimensions(mm) Bolt Size Bearing No. Housing No
  d h a e b s1 s2 g w t B n
UCP201 12 30.2 127 95 38 13 19 14 62 44.5 31 12.7 M10  UC201  P203
UCP202 15 30.2 127 95 38 13 19 14 62 44.5 31 12.7 M10  UC202  P203
UCP203  17 30.2 127 95 38 13 19 14 62 44.5 31 12.7 M10  UC203 P203
UCP204 20 33.3 127 95 38 13 19 15 71 48 34 14.3 M10  UC204  P204
UCP205  25 36.5 140 105 38 13 19 15 71 48 34 14.3 M10  UC205  P205
UCP206  30 42.9 165 121 48 17 20 17 84 53 38 15.9 M14  UC206  P206
UCP207  35 47.6 167 127 48 17 20 18 93 59.5 43 17.5 M14  UC207  P207
UCP208  40 49.2 184 137 54 17 20 18 100 69 49 19 M14  UC208  P208
UCP209  45 54 190 146 54 17 20 20 106 69 49 19 M14  UC209  P209
UCP210  50 57.2 200 159 60 20 23 21 113 74.5 52 19 M16  UC210  P210
UCP211  55 63.5 219 171 60 20 23 23 125 76 56 22.2 M16  UC211  P211
UCP212  60 69.8 241 184 70 20 23 25 138 89 65 25.4 M16  UC212  P212
UCP213  65 76.2 265 203 70 25 28 27 150 89 65 25.4 M20  UC213  P213
UCP214  70 79.4 266 210 72 25 28 27 156   75 30.2 M20  UC214  P214
UCP215  75 82.6 275 217 74 25 28 28 162   78 33.3 M20  UC215  P215
UCP216  80 88.9 292 232 78 25 28 30 174   83 33.3 M20  UC216  P216
UCP217  85 95.2 310 247 83 25 28 32 185   86 34.1 M20  UC217 P217
UCP218 90 101.6 327 262 88 27 30 33 198   96 39.7 M22 UC218

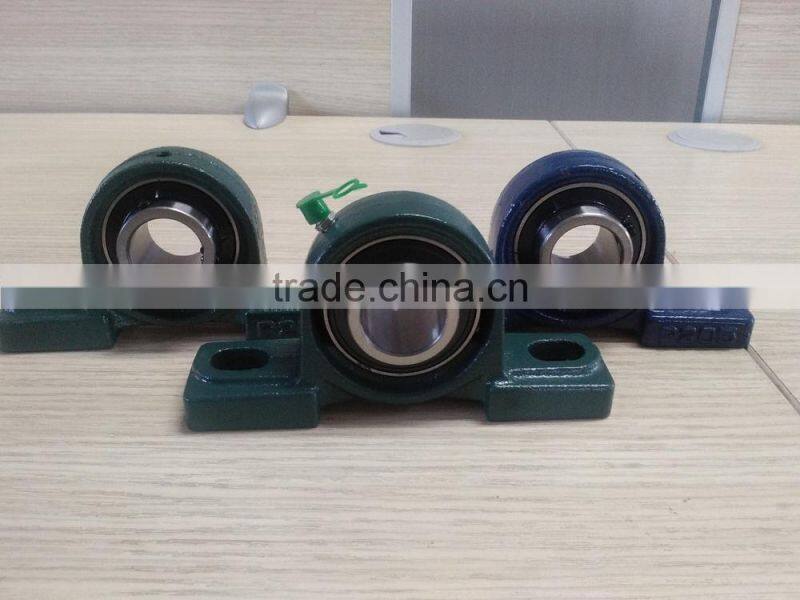

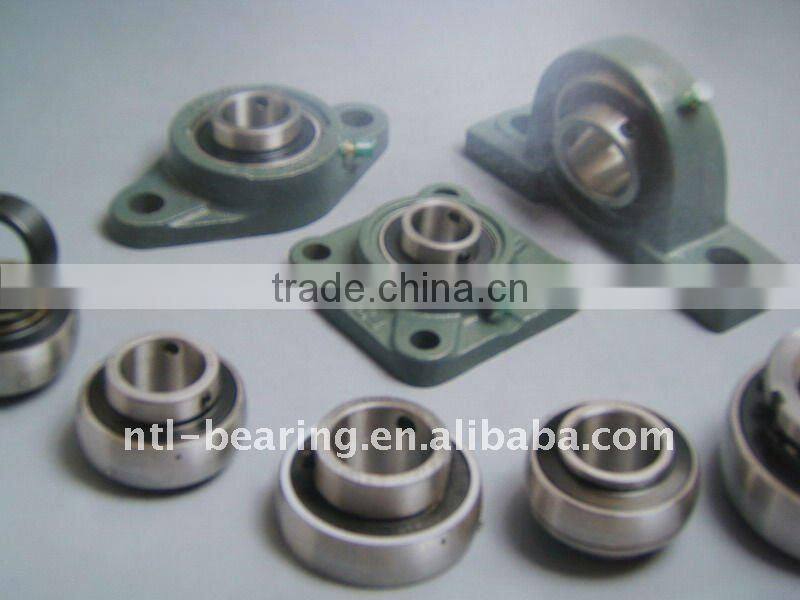

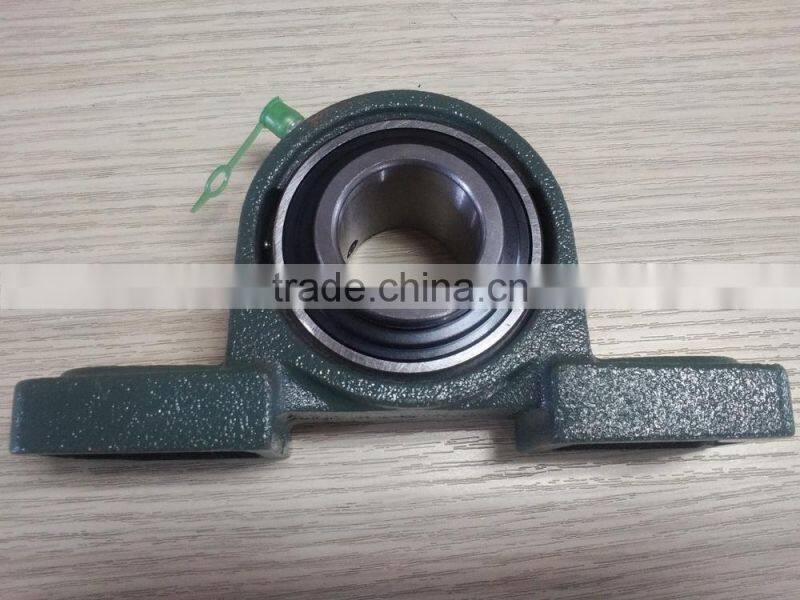

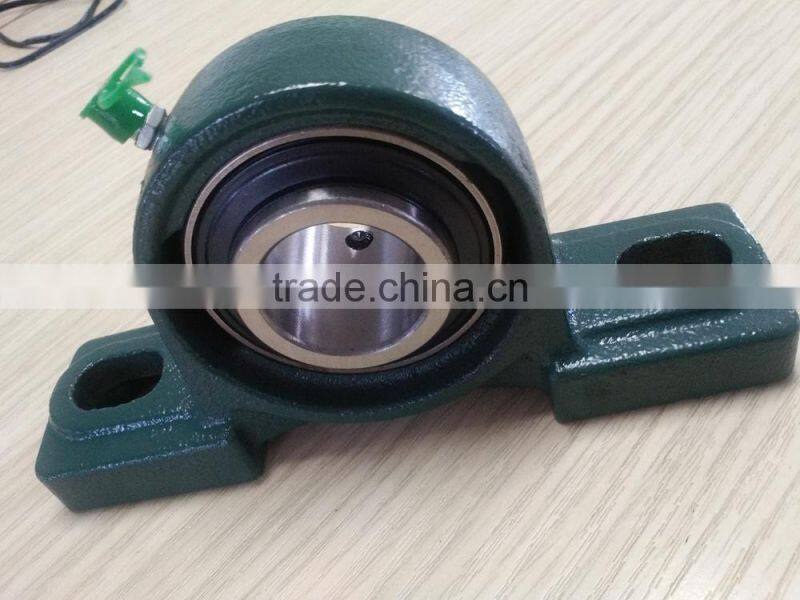

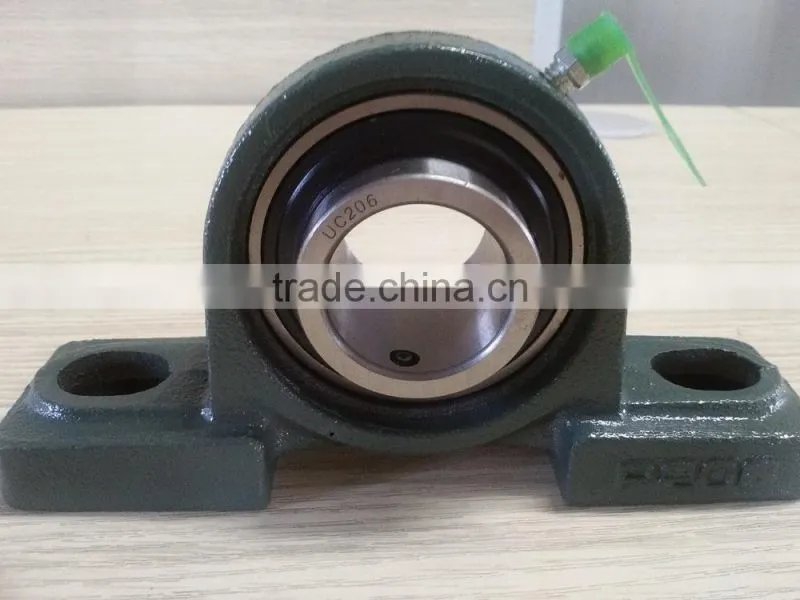

Product Show

high quality pillow block bearing ucp212 for Agricultural Machineryhigh quality pillow block bearing ucp212 for Agricultural Machineryhigh quality pillow block bearing ucp212 for Agricultural Machinery

high quality pillow block bearing ucp212 for Agricultural Machineryhigh quality pillow block bearing ucp212 for Agricultural Machineryhigh quality pillow block bearing ucp212 for Agricultural Machineryhigh quality pillow block bearing ucp212 for Agricultural Machinery



high quality pillow block bearing ucp212 for Agricultural Machinery

high quality pillow block bearing ucp212 for Agricultural Machinery







 if you are interested in our prodcut, please contact me freely:)



Attn:connie



email:connie at



whatsapp:+8615073676619



wechat:empty919
