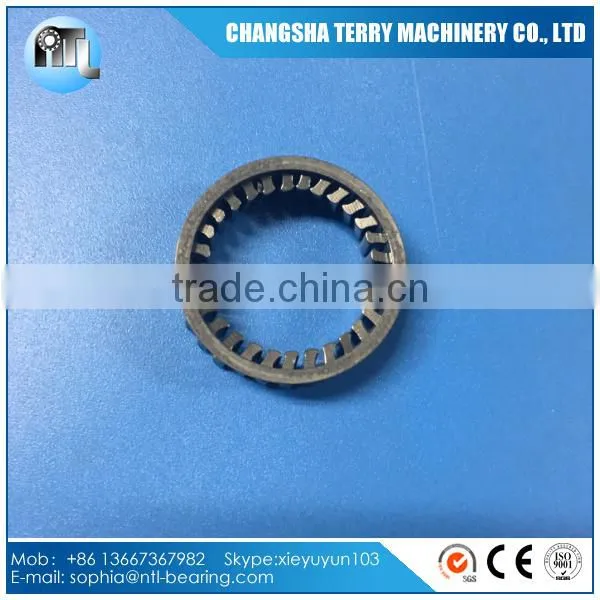

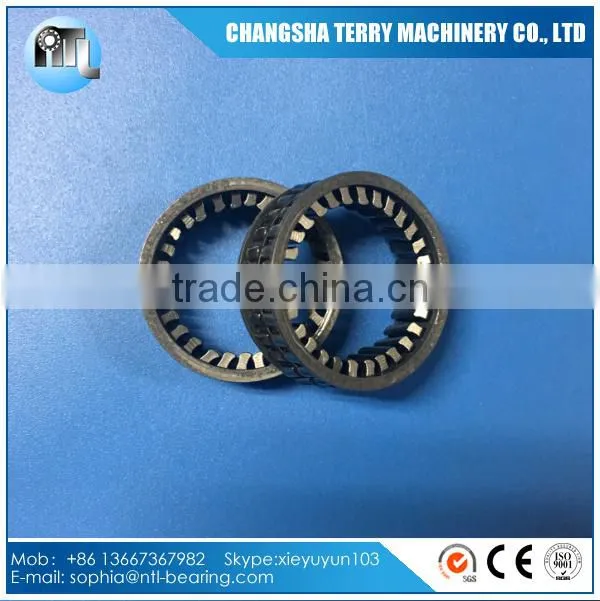

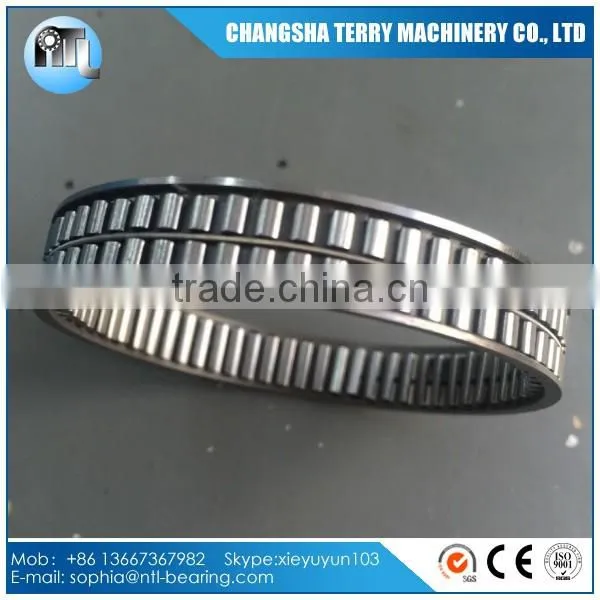

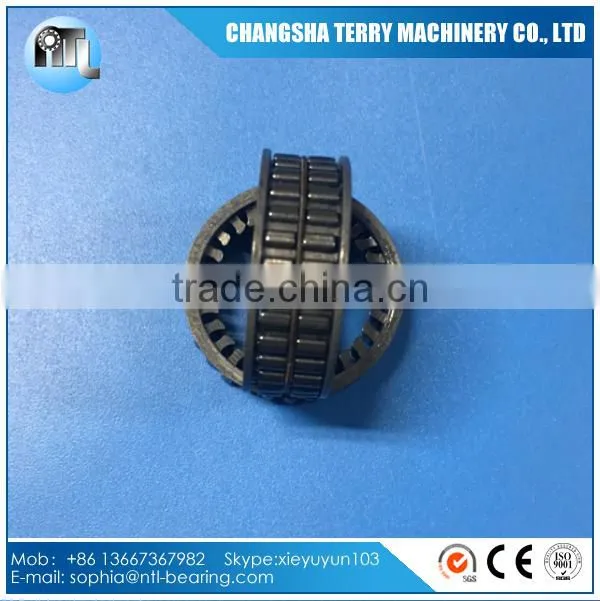

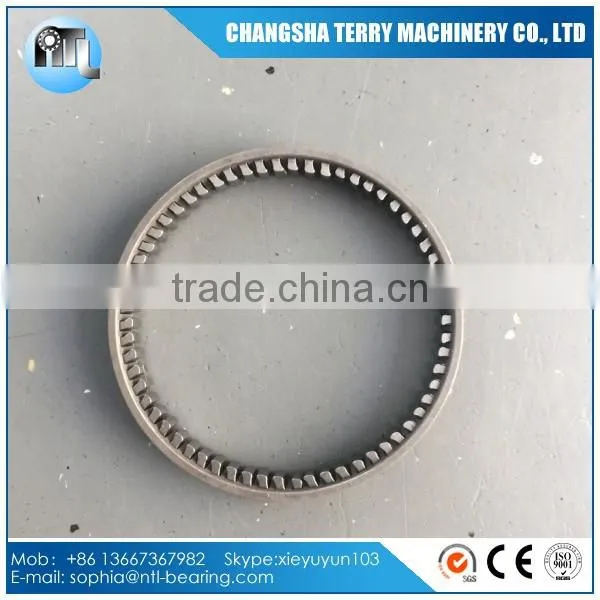

FE438 sprag one way clutch and freewheel clutch cage bearing

FOB Price

USD $10 - $10 / Piece

10 Pieces(Min.Order)

Supply Ability 100000 Piece / Pieces per Month
Port shanghai
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	NTL	Bore Size	30,
Outside Diameter	38,	Model Number	FE438Z
Number of Row	Single Row

Product Description

FE438 sprag one way clutch and freewheel clutch cage bearing

FE series Freewheel-clutches transmit or support torque moment by friction contact in one direction and permit idling in the opposite direction.

USED AS:
1.Indexing elements to change from oscillating to intermittent rotary motion.
2.Backstops to prevent self reversing due to load condition when the machine is not activated.
3.Overrunning clutches to maintain driven unit activated even during slowdown, or in the case of

two speed operation (by independent motors) to switch to the higher speed by passing the slower.

LUBRICATION
Lubrication is especially important to obtain maximum life of freewheel clutches.
Good lubrication decreases drag. Please refer to our Lubrication Selection Table for proper

selection.
Clutches (except the sealed Clutches of series FND, FPD, FK 62...-RS, FK 62...-2RS, FKN...-RS , and FKN...-2RS) are shipped rust protected not lubricated.

Dimensions		FE 400		FE 400 Z		FE 400 Z2		Idling speed Clutch

[mm]
dL	DL	Part Number	Torque	Part Number	Torque M	Part	Torque	nmax [RPM]

			M		[N.m]	Number	M

			[N.m]				[N.m]
2	10					FE 410 Z2	0.3	10,000
4	12			FE 412 Z	3	FE 412 Z2	1.8	10,000
5	13					FE 413 Z2	2.9	9,000
6	14			FE 414 Z	7	FE 414 Z2	2.6	8,500
8	16			FE 416 Z	12	FE 416 Z2	7.6	7,500
14	22	FE 422	48	FE 422 Z	44	FE 422 Z2	21	5,300
15	23	FE 423	55	FE 423 Z	48	FE 423 Z2	24	5,200
17	25	FE 425	68	FE 425 Z	58	FE 425 Z2	30	4,700
19	27	FE 427	80	FE 427 Z	66	FE 427 Z2	36	4,400
20	28	FE 428	87	FE 428 Z	75	FE 428 Z2	39	4,200
22	30	FE 430	101	FE 430 Z	87	FE 430 Z2	46	4,000
24	32	FE 432	116	FE 432 Z	97	FE 432 Z2	52	3,700
25	33	FE 433	124	FE 433 Z	107	FE 433 Z2	56	3,600
27	35	FE 435	141	FE 435 Z	121	FE 435 Z2	64	3,400
29	37	FE 437	158	FE 437 Z	137	FE 437 Z2	71	3,200
30	38	FE 438	168	FE 438 Z	144	FE 438 Z2	76	3,100
34	42	FE 442	207	FE 442 Z	178	FE 442 Z2	93	2,800
35	43	FE 443	217	FE 443 Z	187	FE 443 Z2	98	2,700
40	48	FE 448	272	FE 448 Z	235	FE 448 Z2	122	2,500
45	53	FE 453	333	FE 453 Z	281	FE 453 Z2	146	2,200
50	58	FE 458	400	FE 458 Z	345	FE 458 Z2	178	2,000
51	59	FE 459	414	FE 459 Z	357
55	63	FE 463	472	FE 463 Z	407	FE 463 Z2	202	1,900
60	68	FE 468	550	FE 468 Z	474	FE 468 Z2	243	1,750
62	70	FE 470	583	FE 470 Z	502			1,700
65	73	FE 473	633	FE 473 Z	545			1,600
70	78	FE 478	722	FE 478 Z	622			1,500
80	88	FE 488	914	FE 488 Z	788			1,300

If you need,just feel free to contact with us.
