FE435Z Sprag One Way Clutch Bearing Cage

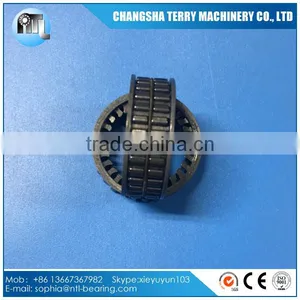

FE435Z Sprag One Way Clutch Bearing Cage thumbnail-1

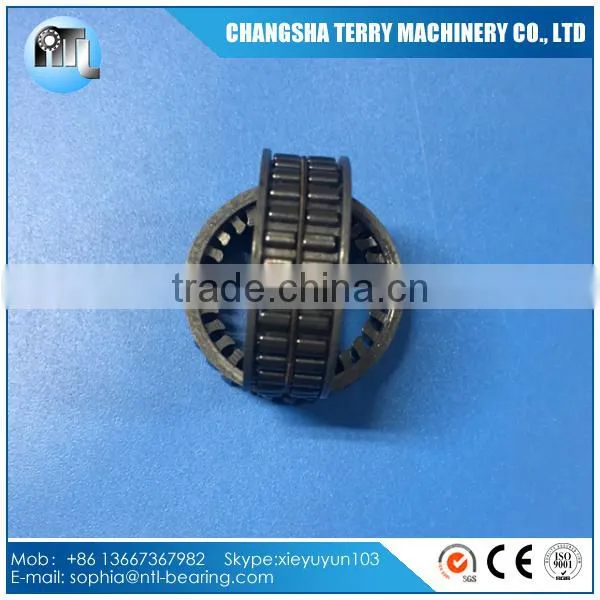

FE435Z Sprag One Way Clutch Bearing Cage photo-1
US$ 8 - 8 MOQ: 10 Pieces
Key Specifications
Get Latest Price
Brand Name:
NTL
Bore Size:
27,
Outside Diameter:
35,
Contact Supplier Request Quote Chat Now
Changsha Terry Machinery Co., Ltd.
Gold Verified Supplier
5Yrs
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name NTL
Bore Size 27,
Outside Diameter 35,
Model Number FE435Z
Number of Row Single Row

FE435Z  Sprag One Way Clutch Bearing Cage







FE series Freewheel-clutches transmit or support torque moment by friction contact in  one  direction and permit idling in the opposite direction.


USED AS:
1.Indexing elements to change from oscillating to intermittent rotary motion.
2.Backstops to prevent self reversing due to load condition when the machine is not activated.
3.Overrunning clutches to maintain driven unit activated even during slowdown, or in the case of

 two speed operation (by independent motors) to switch to the higher speed by passing the slower.



LUBRICATION
Lubrication is especially important to obtain maximum life of freewheel clutches.
Good lubrication decreases drag. Please refer to our Lubrication Selection Table for proper

selection.
Clutches (except the sealed Clutches of series FND, FPD, FK 62...-RS, FK 62...-2RS, FKN...-RS , and FKN...-2RS) are shipped rust protected not lubricated.





Dimensions    FE 400 FE 400 Z FE 400 Z2 Idling speed Clutch

[mm]
dL DL Part Number Torque  Part Number Torque M  Part  Torque  nmax [RPM]

M   [N.m] Number M

[N.m]     [N.m]
2 10         FE 410 Z2 0.3 10,000
4 12     FE 412 Z 3 FE 412 Z2 1.8 10,000
5 13         FE 413 Z2 2.9 9,000
6 14     FE 414 Z 7 FE 414 Z2 2.6 8,500
8 16     FE 416 Z 12 FE 416 Z2 7.6 7,500
14 22 FE 422 48 FE 422 Z 44 FE 422 Z2 21 5,300
15 23 FE 423 55 FE 423 Z 48 FE 423 Z2 24 5,200
17 25 FE 425 68 FE 425 Z 58 FE 425 Z2 30 4,700
19 27 FE 427 80 FE 427 Z 66 FE 427 Z2 36 4,400
20 28 FE 428 87 FE 428 Z 75 FE 428 Z2 39 4,200
22 30 FE 430 101 FE 430 Z 87 FE 430 Z2 46 4,000
24 32 FE 432 116 FE 432 Z 97 FE 432 Z2 52 3,700
25 33 FE 433 124 FE 433 Z 107 FE 433 Z2 56 3,600
27 35 FE 435 141 FE 435 Z 121 FE 435 Z2 64 3,400
29 37 FE 437 158 FE 437 Z 137 FE 437 Z2 71 3,200
30 38 FE 438 168 FE 438 Z 144 FE 438 Z2 76 3,100
34 42 FE 442 207 FE 442 Z 178 FE 442 Z2 93 2,800
35 43 FE 443 217 FE 443 Z 187 FE 443 Z2 98 2,700
40 48 FE 448 272 FE 448 Z 235 FE 448 Z2 122 2,500
45 53 FE 453 333 FE 453 Z 281 FE 453 Z2 146 2,200
50 58 FE 458 400 FE 458 Z 345 FE 458 Z2 178 2,000
51 59 FE 459 414 FE 459 Z 357
55 63 FE 463 472 FE 463 Z 407 FE 463 Z2 202 1,900
60 68 FE 468 550 FE 468 Z 474 FE 468 Z2 243 1,750
62 70 FE 470 583 FE 470 Z 502     1,700
65 73 FE 473 633 FE 473 Z 545     1,600
70 78 FE 478 722 FE 478 Z 622     1,500
80 88 FE 488 914 FE 488 Z 788     1,300





FE435Z Sprag One Way Clutch Bearing CageFE435Z Sprag One Way Clutch Bearing Cage





 FE435Z Sprag One Way Clutch Bearing CageFE435Z Sprag One Way Clutch Bearing CageFE435Z Sprag One Way Clutch Bearing CageFE435Z Sprag One Way Clutch Bearing Cage

If you need,just feel free to contact with us.



Sophia



Skype:xieyuyun103



Tel:+86 13667367982
