Home > Products > One way clutch bearing > DC 7969C(5C) Overrunning Clutch Bearing with sprag type

DC 7969C(5C) Overrunning Clutch Bearing with sprag type

FOB Price

USD $15 - $15 / Piece

1 Piece(Min.Order)

Supply Ability 100000 Piece / Pieces per Month
Port shanghai
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	NTL	Bore Size	79.698,
Outside Diameter	96.358,	Model Number	DC 7969C(5C)
Number of Row	Single Row	Place of Origin	Jiangsu, China

Product Description

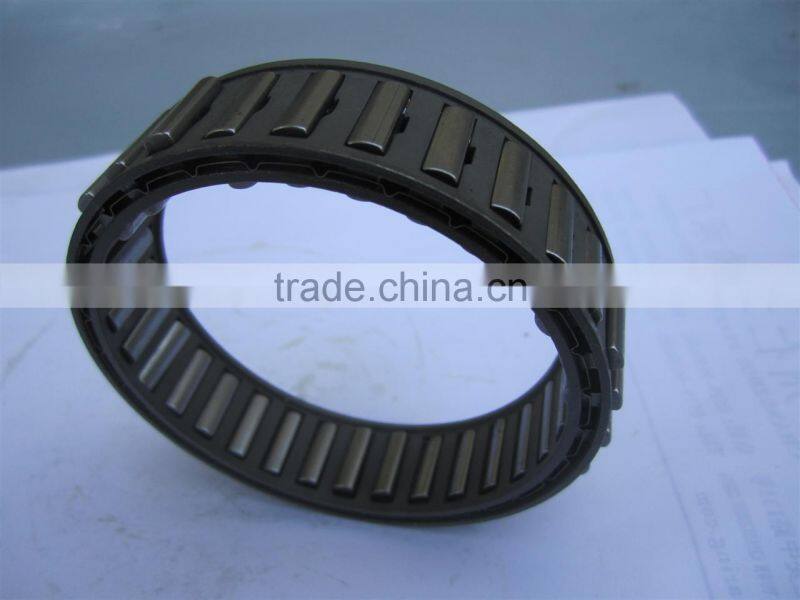

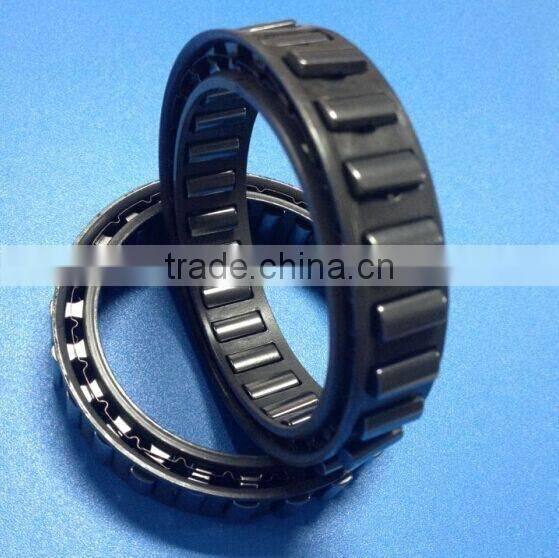

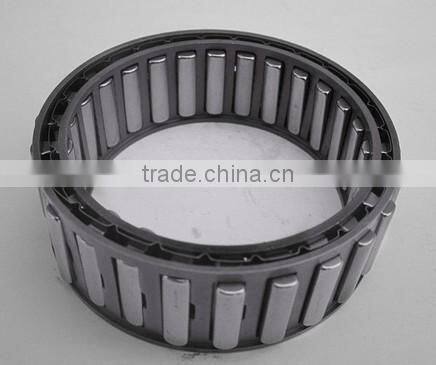

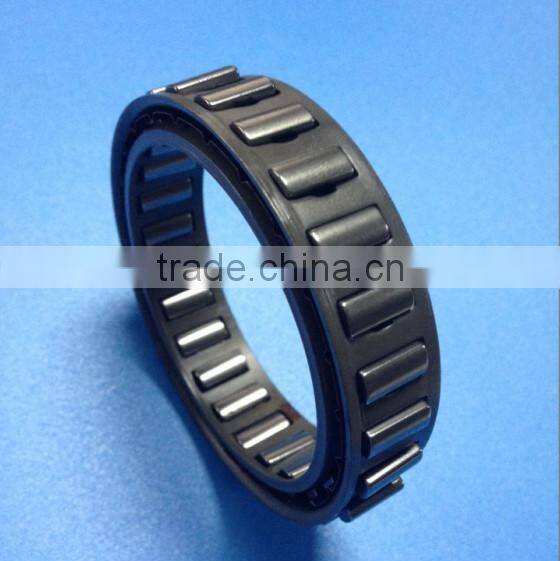

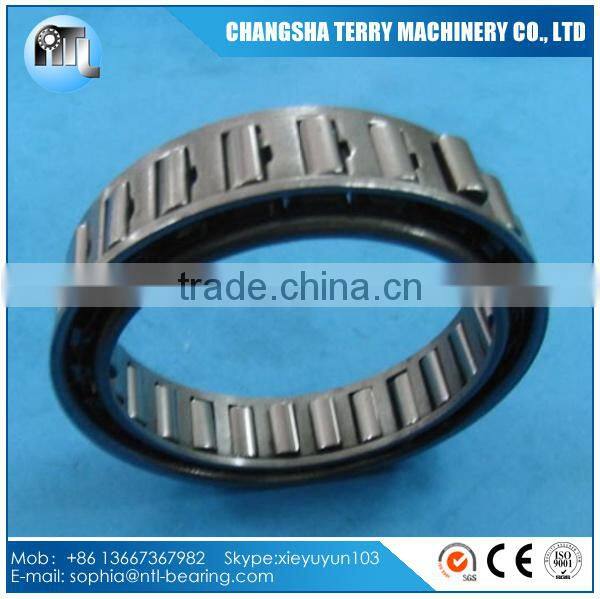

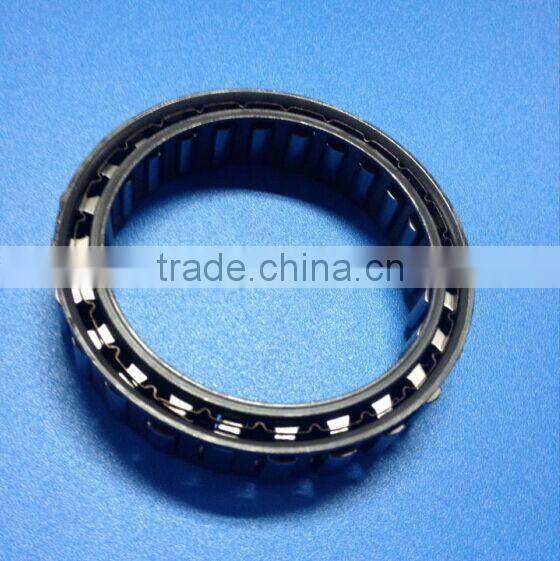

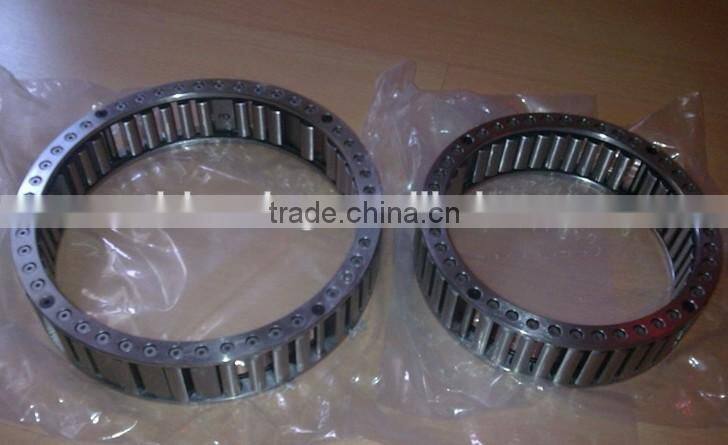

DC 7969C(5C) Overrunning Clutch Bearing with sprag type

1.Type DC is a sprag type freewheel cage without inner or outer races.

2.It must be installed in a design providing races, bearing support for axial and radial loads, lubrication and sealing. The DC type version -N accepts all types of lubricants currently used in power transmissions including gear oils with EP additives.

3.The sprag space tolerance must not be exceeded. Inner and outer races must both have a minimum plain width "e", without any recess, to ensure the freewheel functions correctly as shown on following pages

Alternatively, races can be made in case hardened steel shafts, or housings, to the specification below.

4.Surface hardness of the finished part should be HRC 60 to 62, for a depth of 0,6 mm minimum.

Core hardness to be HRC35 to 45. Surface roughness not to exceed 22CLA. Maximum taper between races : 0,007 mm for 25 mm width.

Modle No

TKN1

Φc+0.003mm

emin

Φdmin

Φdmax

DC2222G

22.225

38.885

8.33±0.075

DC2776

27.762

44.422

8.33±0.075

13.5

DC3034

30.34

8.33±0.075

13.5

DC3175(3G)

127

31.75

48.41

8.33±0.075

13.5

DC3809A

220

38.092

54.752

8.33±0.075

DC4127(3G)

179

41.275

57.935

8.33±0.075

13.5

DC4445A

290

44.45

61.11

8.33±0.075

DC4912(4C)

245

49.721

66.381

8.33±0.075

13.5

DC5476A

420

54.766

71.425

8.33±0.075

DC5476A(4G)

420

54.765

71.425

8.33±0.075

DC5476B(4G)

615

54.765

71.425

8.33±0.075

DC5476C(4G)

792

54.765

71.425

8.33±0.075

25.4

DC5776A

483

57.76

74.42

8.33±0.075

DC63348

645

63.34

8.33±0.075

104

DC7221(5G)

540

72.217

88.877

8.33±0.075

13.5

115

DC7221B

1023

72.217

88.877

8.33±0.075

115

DC7221B(5G)

1023

72.217

88.877

8.33±0.075

115

DC7969C(5C)

1630

79.698

96.358

8.33±0.075

25.4

124

DC8334C

1645

83.34

100

8.33±0.075

25.4

132

DC8729A

1000

87.29

103.96

8.33±0.075

134

DC10323A(3C)*

1290

103.231**

119.891

8.33±0.075

155

DC12334C*

3840

123.340**

140

8.33±0.075

25.4

184

DC12388C(11C)

3900

123.881

142.88

9.50±0.10

25.4

186

If you need,just feel free to contact with us.
