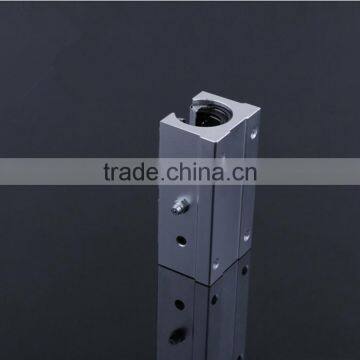

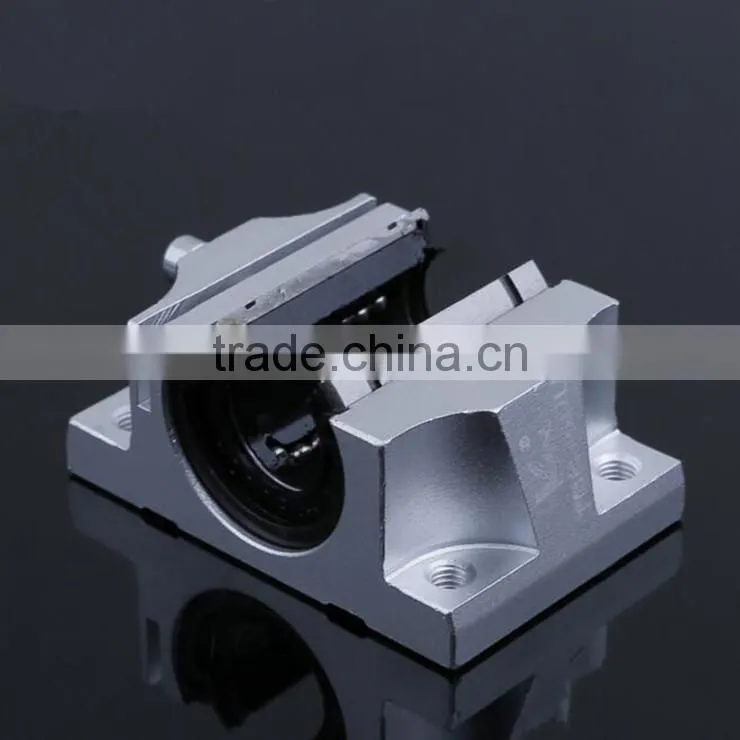

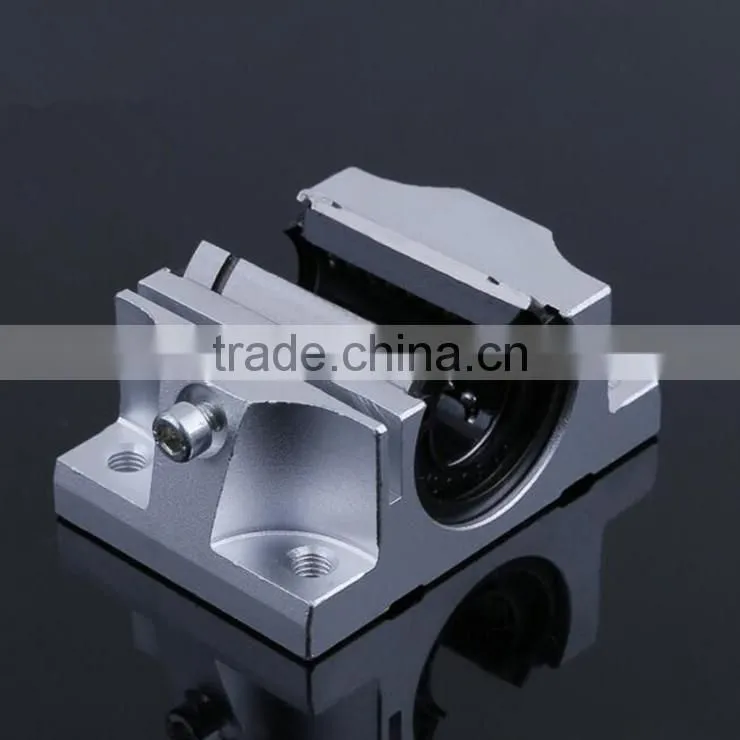

Durable Linear Slider TBR20UU for CNC Machine
Feature

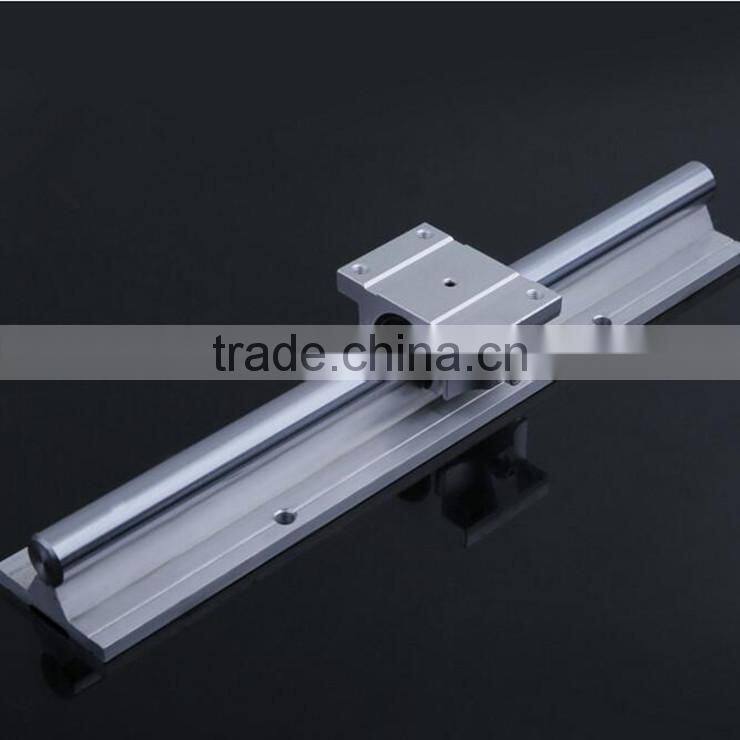

1. SBR/TBR Cylindrical linear guide rail is composed of a rail support, a shaft (rail), and number of blocks. They are provided as a unit or as respective components as well. All components are standardized to be fully interchangable.
2. Linear Guide rail TBR/SBR Series with smooth serface, little friction,low noise,they are widely used in linear motion system.For example, punch, tool grinding machine, automatic cutting machine, printer, card sorting machine, Food Packing Machine, other sliding parts on industrial machinery.
Application
Application of the CNC machine used linear bearing linear slide unit TBR series TBR20UU :
Machine tool spindle, high frequency motor, gas turbine, centrifugal separator, small car front wheel,differential pinion shaft, booster pump, drilling platform, food machinery, dividing head, filling machine, low noise type cooling tower, electrical equipment, coating equipment, machine tool trough plate, arc welding machine
Oil pump, roots blower, air compressor, all kinds of transmission, fuel injection pump, printing machinery, planetary reducer,Food packaging machinery, electric welding machine, electric, square box, gravity type spray gun, wire stripping machine

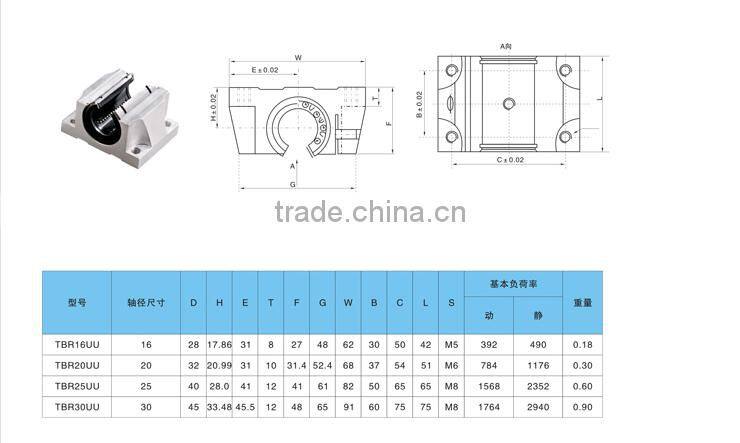

Datasheet
Shaft: GCr15/100Cr6/SUJ2, 440C, C45
Hardness: HRC60+5
Shaft surface: Chrome plating
Surface roughness: 0.5um
Rail & housing: Aluminum-Anodizing/sandblast
Linearity: 1000mm≤ 50um
Asia metric: G6 Europe Metric: H6
Company introduce
ChangshaTerry Machinery Co.,Ltd is a leading international trading company. The growing economics and convenient transportation of Changsha benefits the development of Terry Machinery.
Our products are utilized in commercial, industrial and custom application. Terry Machinery is specialized in engineering machinery bearing and vehicle industrial bearing. Our products have been exported over 46 countries.
The goal of Terry Machinery is to provide out customers with widest range of bearing at lowest price, backed with the best service.
FAQ
1. Do you like to accept small orders?
We enjoy to grow up together with all our clients, whatever big or small. You will become bigger and bigger to be with us.
2. Will you send me free sample?
Yes
3. Could you accept OEM and customization?
YES, we can customize for you according to sample or drawing.
4. Is it your company factory or Trade Company?
We have our own factory and you welcome to come and visit.
5. Do your factory have CE?
Yes, we have ISO 9001, If you want other CE, we can do for you.
6. Could you tell me the packing of your goods?
Single plastic bag—put in single box—put in carton or wooden case—at last packing in pallet.
7. Could you tell me the payment term of your company can accept?
We accept the TT, Pyapal, Western union, alibaba. The custome can choose the way to delivery their goods by sea or Air. We will do our best to serve our customers.
8. Could you tell me the delivery time of your goods?
3-7 days stock goods and other goods according to the quantity about 3-21 days.
9. Can you give me discount on bearing?
Yes, of course. Pls. send me your Email, you’ll get more.
Contact
Attn: Emily dong
E-mail: emily at
Whatsapp:+8618374976461
Skype: emily-xin
Welcome to enquire for more details!
