6x12x22mm linear bearing KH0622
Linear bearing is a low-cost production of linear motion system for unlimited travel in conjunction with the cylinder axis. Since carrying the ball point contact with the shaft, so the use of small loads. With minimal friction ball rotation, which can obtain high-precision smooth movement.Low noise, low friction, high precision, high life.Because of point contact between ball and straight axis, friction small, motion precision is high.
Linear bearings are used in conjunction with hardened linear shaft. For an infinite linear motion systems. Ball and hardened shaft because it is the point of contact, allowing the load is small, but the linear motion of the minimum friction, high precision, fast movement. Mainly used for linear motion passed.
Application:
Linear bearings are widely used in electronic equipment, tensile testing machine
and the digital three-dimensional coordinate measuring equipment, precision equipment,
and multi axis machine tools, presses, tool grinder, automatic gas cutting machine,
printer, card sorting machine, food packing machines and other industrial machinery sliding components

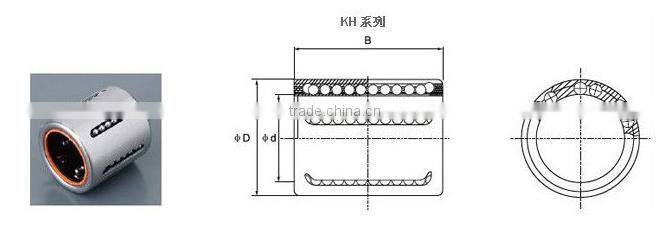

| TYPE | ROW NUMBER | MAIN DIMENSIONS | NASIC LOAD RATING | ||||
| WEIGHT | |||||||
| c(kgf) | Co(kgf) | ||||||
| d | D | B | |||||
| KH0824 | 4 | 11.3 | 8 | 15 | 24 | 44 | 29 |
| KH1026 | 4 | 14.4 | 10 | 17 | 26 | 51 | 38 |
| KH1228 | 5 | 18.1 | 12 | 19 | 28 | 63 | 52 |
| KH1428 | 5 | 20.6 | 14 | 21 | 28 | 63 | 52 |
| KH1630 | 5 | 27.2 | 16 | 24 | 30 | 82 | 63 |
| KH2030 | 6 | 32.7 | 20 | 28 | 30 | 97 | 81 |
| KH2540 | 6 | 66 | 25 | 35 | 40 | 203 | 170 |
| KH3050 | 7 | 95 | 30 | 40 | 50 | 286 | 276 |
| KH4060 | 8 | 180 | 40 | 52 | 60 | 449 | 454 |
| KH5070 | 9 | 250 | 50 | 62 | 70 | 561 | 643 |
if you are interested in our product, please feel free to contact with me:)
Attn:connie
email:connie at
whatsapp:+8615073676619
wechat:empty919
