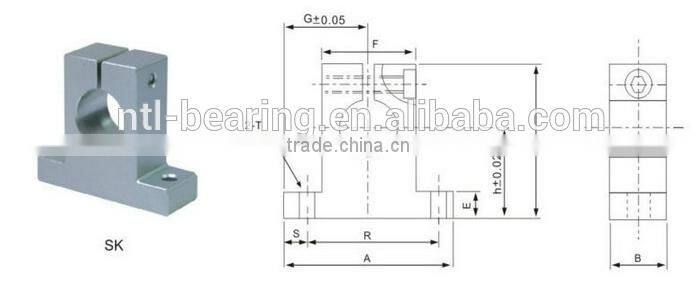

SK Series Linear Bearing Slide Support SK10
Low noise, low friction, high precision, high life.Because of point contact between ball and straight axis, friction small, motion precision is high.
Linear bearing is a low-cost production of linear motion system for unlimited travel in conjunction with the cylinder axis. Since carrying the ball point contact with the shaft, so the use of small loads. With minimal friction ball rotation, which can obtain high-precision smooth movement.
Linear bearings are used in conjunction with hardened linear shaft. For an infinite linear motion systems. Ball and hardened shaft because it is the point of contact, allowing the load is small, but the linear motion of the minimum friction, high precision, fast movement. Mainly used for linear motion passed.
We manufacture full range products of linear motion bearings,Linear shaft, linear guide, ballscrew, linear bushing,support rail unit and Linear Bearing Unit.

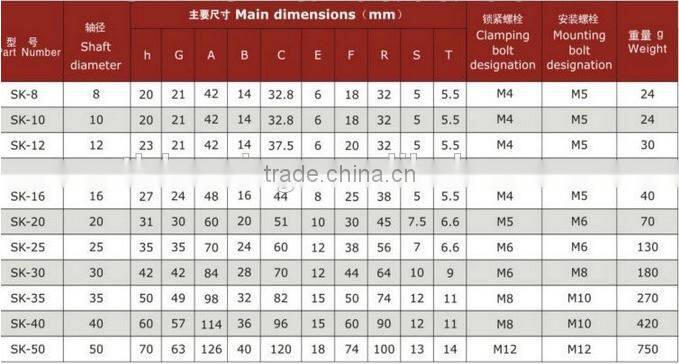

Other Model:
SK-8, SK-10., SK-12, SK-13, SK-16, SK-20, SK-25, SK-30, SK-35, SK-40, SK-50
SH8A, SH10A, SH12A, SH13A, SHA16A, SH20A,SH25A, SH30A,SH35A, SH40A, SH50A, SH60A.
