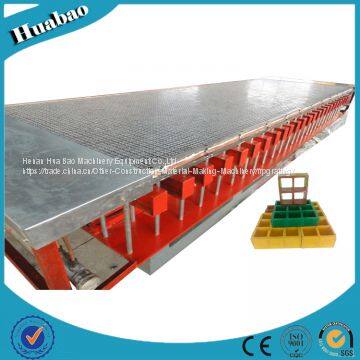

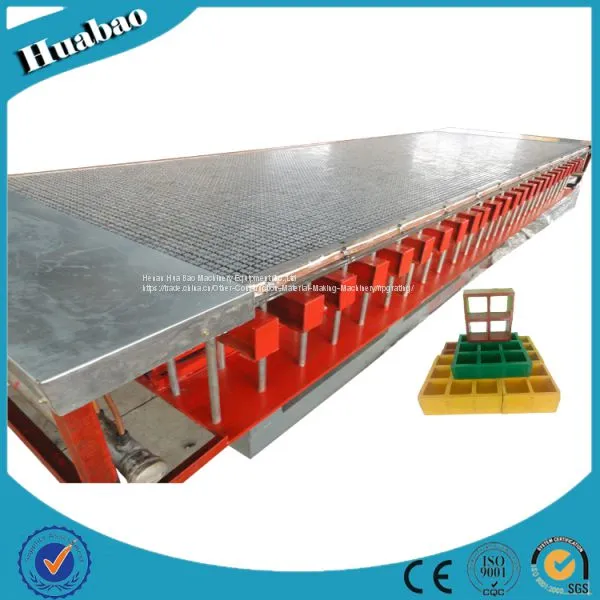

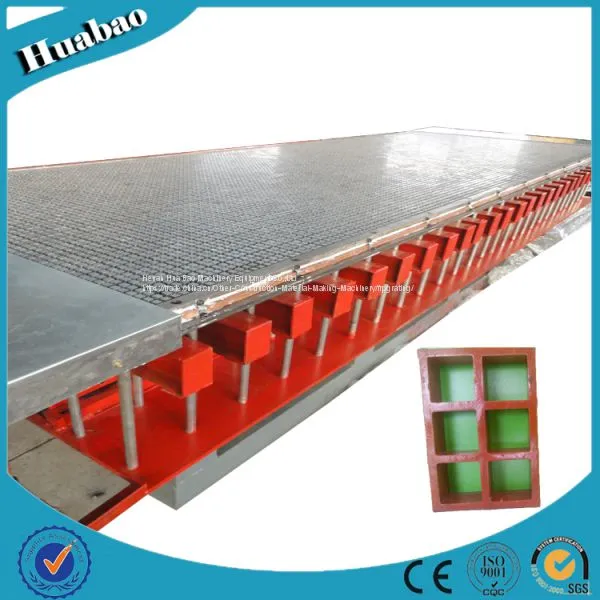

FRP grating machine
Ejector rod lifting device is two cylinder to parallel advance ,smooth ,no waveing.
Stripping plate and stripping beam adopt elasticity connection, go up and down is parallel and steady.

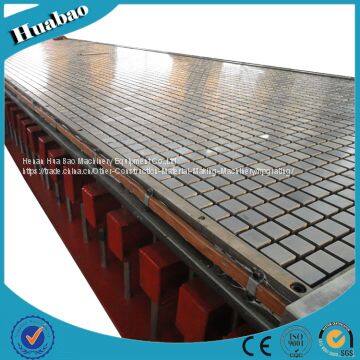

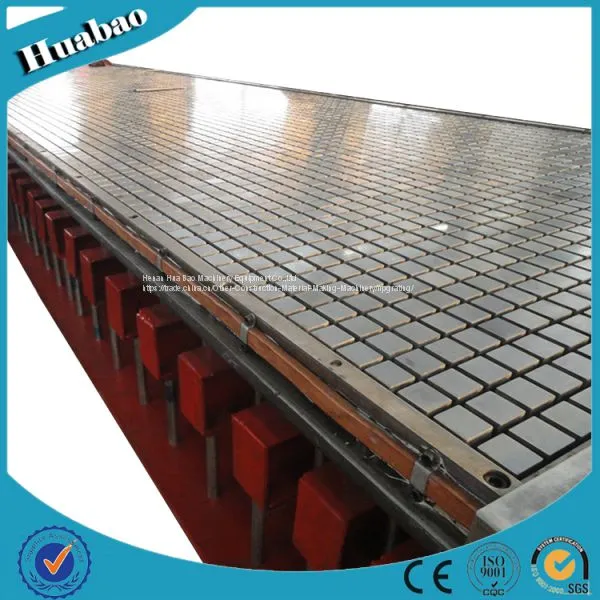

The module using delicate 45# steel,grinding,polishing and the surface is plating.It has antiseptic function,smooth and easy to demould.
Ejector rod can go up and down along with lifting device,easy to change and easy maintenance.
Ejector rod is made from steel parts grinding ,surface smooth,firmness and wear resistance.
Hydraulic station adopt hydraulic parts made by Sino-Japanese joint venture, it is long-life and durable
Mould temperature rise and drop are achieved by rectangular copper pipe, which have large contact area with template, temperature rise and drop fastly, and it can heat the mould top surface. In terms of the four borders of the mould, it is anti-corrosion and durable. Joint adopt stainless soft joint, joint destuffing is convenience, anti-corrosion and durable
Specification

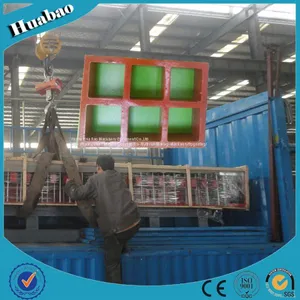

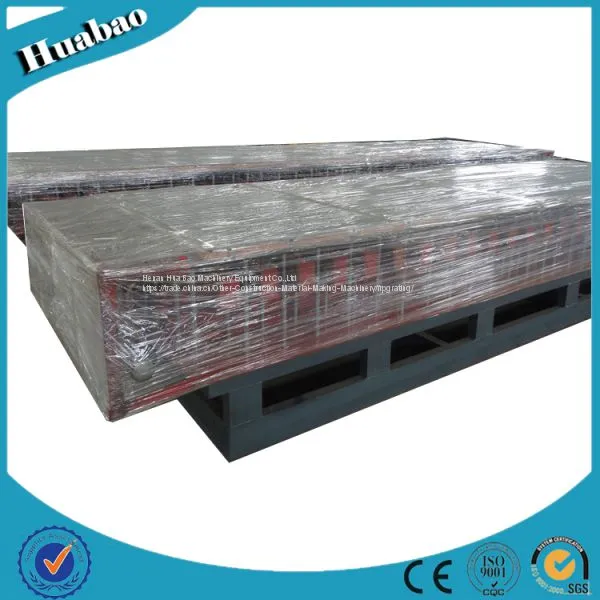

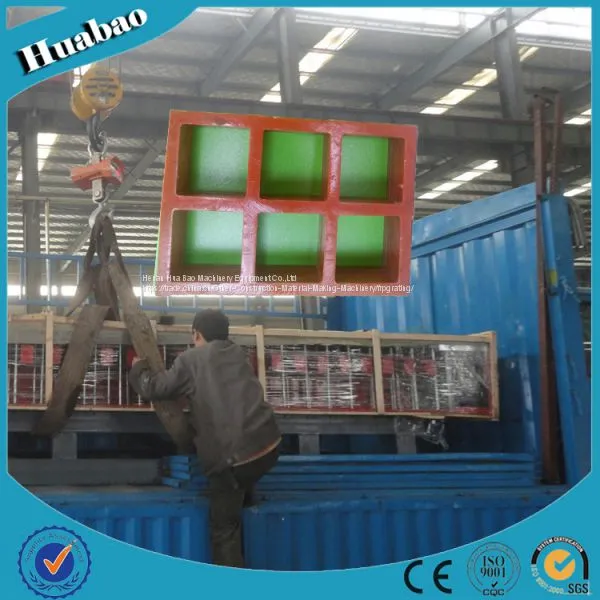

Plastic film package or as your requirement.
Item no.
Height(mm)
Mesh Size(mm)
Standard Panel Sizes(mm)
Bar Thickness(top/bottom-mm)
Open Area Weight(kg/m2)
1 13 50.8×50.8 3660×1220 6.4 / 5.4 76% 5.5
2 15 25.4×25.4 / 50.8×50.8 3660×1220 6.2 / 5 57% 7.2
3 15 38.1×38.1 3660×1225 6.3 / 5.2 69 6.5
4 15 20×20 / 40×40 4047×1247 6.35 / 5.3 47 11.5
5 20 38.1×38.1 3665&am
Mode | 1220*2440 | 1220*3660 | 1220*4040 | 1220*4920 |
Size(mm) | 50*50*50 | 50*50*50 | 50*50*50 | 50*50*50 |
Size(mm) | 38*38*38 | 38*38*38 | 38*38*38 | 38*38*38 |
Size(mm) | 38*38*30 | 38*38*30 | 38*38*30 | 38*38*30 |
Size(mm) | 38*38*25 | 38*38*25 | 38*38*25 | 38*38*25 |
Size(mm) | 38*38*20 | 38*38*20 | 38*38*20 | 38*38*20 |
