Help CenterConcave Surface FRP Grating Machine manufacture Light Weight Frp Grating
Related Products
-
Concave Surface FRP Grating Machine manufacture Light Weight Frp GratingNegotiableMOQ: 1 Set -
Concave Surface FRP Grating Machine From FactoryNegotiableMOQ: 1 Set
-
Concave Surface FRP Grating Machine Make FRP Grating PanelNegotiableMOQ: 1 Set
-
Concave Surface FRP Grating Machine Fiberglass Resin SheetNegotiableMOQ: 1 Set
-
Concave Surface FRP Grating Machine With Standard SizeNegotiableMOQ: 1 Set
Key Specifications/Special Features:
Fibreglass Grid Floor Grating machine with good quality factory price
FRP Grating Features
The FRP grating is integrally constructed for a high strength. The specific gravity is 1.8g/cm3.Its specific gravity is only 1/4 of steel, 2/3 of aluminium. FRP grating distributed evenly loading to all parts on it. The strength is 10 times as much as hard PVC, the absolute strength is more than aluminium, reach the normal steel's level.
FRP grating offers lower cost than steel, long life(more than 20 years), no maintenance, although the first investment is higher than common carbon steel. So it is more economic in terms of the total benefit.
FRP grating resilience, it can make the workers standing on comfortable.
FRP grating can meet all kinds of use requirement,this structural body can be cut easily as the solid board without being disassembled.
The FRP product provides a superior non-conductive property, its insulation grade can reach H-F level, and generally applied in high voltage area.

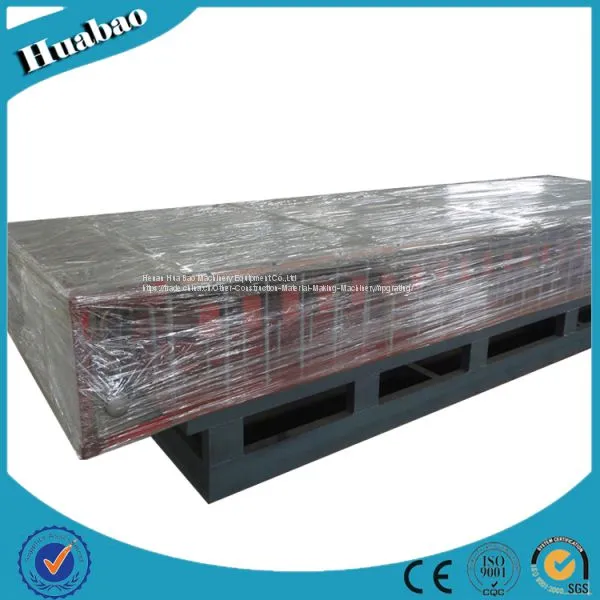

FRP grating machine
Ejector rod lifting device is two cylinder to parallel advance ,smooth ,no waveing.
Stripping plate and stripping beam adopt elasticity connection,go up and down is parallel and steady.
The module using delicate 45# steel,grinding,polishing and the surface is plating.It has antiseptic function,smooth and easy to demould.
Ejector rod can go up and down along with lifting device,easy to change and easy maintenance.
Ejector rod is made from steel parts grinding ,surface smooth,firmness and wear resistance.
Hydraulic station adopt hydraulic parts made by Sino-Japanese joint venture, it is long-life and durable
Mould temperature rise and drop are achieved by rectangular copper pipe, which have large contact area with template, temperature rise and drop fastly,and it can heat the mould top surface. In terms of the four borders of the mould,it is anti-corrosion and durable.Joint adopt stainless soft joint,joint destuffing is convenience,anti-corrosion and durable
Specification
Item no. Height(mm) Mesh Size
(mm) Standard Panel Sizes(mm) Bar Thickness
(top/bottom-mm) Open Area Weight
(kg/m2)
1 13 50.8×50.8 3660×1220 6.4 / 5.4 76% 5.5
2 15 25.4×25.4 / 50.8×50.8 3660×1220 6.2 / 5 57% 7.2
3 15 38.1×38.1 3660×1225 6.3 / 5.2 69 6.5
4 15 20×20 / 40×40 4047×1247 6.35 / 5.3 47 11.5
5 20 38.1×38.1 3665&am
