Help CenterCOMPUTERIZED JACQUARD LOOM
Related Products
Main Technical Parameters of loom
Model |
JYF8/35-192 |
JYF6/55-192-240 |
Numbers of Ribbon |
8 |
6 |
Width of Reed(mm) |
35 |
55 |
Weft Density |
3.5-36.7/cm 8.9-9.3/inch |
3.5-36.7/cm 8.9-9.3/inch |
Numbers of Frame |
8-10 |
8-10 |
Cycle pattern chain |
1:48 |
1:48 |
Speed |
800-1000 |
800-1000 |
Motor Power(KW) |
1.5 |
1.5 |
JYF4/80-192-240-320 |
4 |
80 |
3.5-36.7/cm 8.9-9.3/inch |
8 |
1:48 |
700-900 |
1.5 |

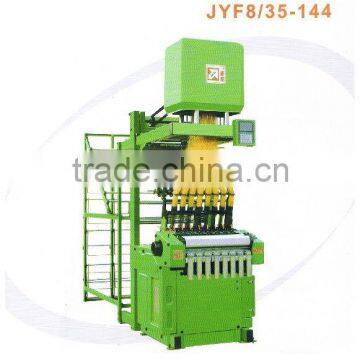

JYF computerized jacquard loom can manufacture kinds of elastic and non-elastic jacquard fabric. This kind of machine adopts the newest computerized electronic jacquard bibcock which makes its typeset is controlled by computer. Its easy to operate, to learn and to use. The machine also adopts two-speed motor system which makes it more fast and convenient when debugging. On the other hand, the weft feeding adopts pulley feeding, that will make the speed steady and equality. The feature highly precision, low depreciation, and convenient in debugging and maintaining.
