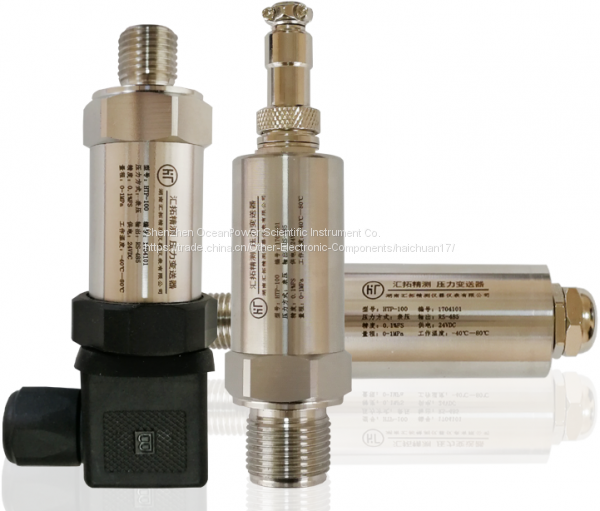

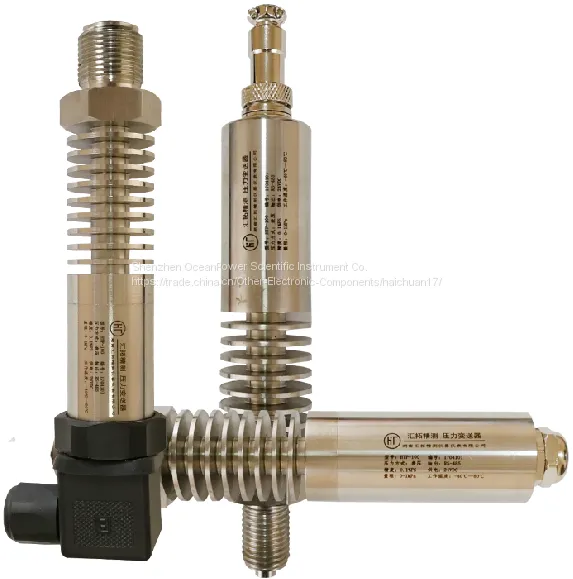

HCS-106 RS485 Digital Remote Transmission Pressure Transmitter

US$ 50 - 95 MOQ: 1 Bag

Key Specifications

Brand Name:

Place of Origin:

China

Model Number:

HCS-106

Shenzhen HaiChuan Scientific Instrument Co.Ltd

Payment & Shipping

Payment Methods:

Port of Shipment:

shenzhen

Delivery Detail:

7 days

Brand Name HC

Place of Origin China

Model Number HCS-106

Usage Other, Industrial pressure sensor

Theory Other, Industrial pressure sensor

Output Other, Industrial pressure sensor

Technical specifications
Pressure parameter				Performance parameter
Pressure range	0-100MPa			Stability		＜0.1%FS
Pressure type	Pressure gauge/ Absolute pressure			Zero point influence		0.005%
Pressure interface	M20*1.5,G1/4,NPT1/2			Response time		＜10ms（V）＜40ms（A）
Pressure medium	Gas/Liquid			Check direction		Vertical direction
Precision parameter				Electrical parameter
Accuracy：Endpoint		＜0.3%FS,＜0.1FS		Incentive range			18-30VDC
Nonlinearity：Endpoint		＜0.03%FS		Preheating drift			＜±0.01%FS
Hysteresis		＜0.01%FS		Reverse connection protection			Reverse excitation protection
Non repeatability		＜±0.02%FS		Signal output mode			0.5-4.5VDC,0-5VDC,0-10VDC,4-20mA
Full-scale drift		＜±0.05%FS
Zero shift		＜±0.05%FS		Maximum power			Current mode≤0.02U（W）Voltage type load=≤0.006U（W）
Temperature error		＜±0.1%FS （0°-50°）		Load characteristic			Current mode≤{（U-9）/0.02}Ω,Voltage type load=≥100kΩ
Environment parameter
Working temperature			-40℃~85℃		Vibration	20g,5-5000Hz（Random）
Compensation temperature			0℃-60℃		Shock	20g,11ms
Storage temperature			-40℃~85℃		Protection level	IP65
