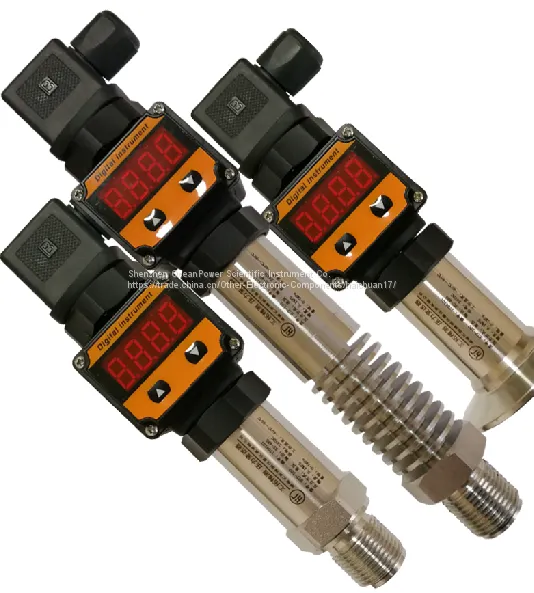

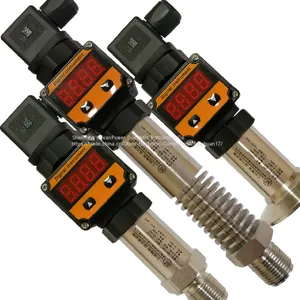

HCS-104 Industrial Grade/High Temperature Pressure Sensor

Pressure parameter

Performance parameter

Pressure range

0-100MPa

Stability

＜0.1%FS

Pressure type

Pressure gauge/

Absolute pressure

Zero point influence

0.005%

Pressure interface

M20*1.5,G1/4,NPT1/2

Response time

＜10ms（V）

＜40ms（A）

Pressure medium

Gas/Liquid

Check direction

Vertical direction

Precision parameter

Electrical parameter

Accuracy：Endpoint

＜0.3%FS,＜0.1FS

Incentive range

18-30VDC

Nonlinearity：Endpoint

＜0.03%FS

Preheating drift

＜±0.01%FS

Hysteresis

＜0.01%FS

Reverse connection protection

Reverse excitation protection

Non repeatability

＜±0.02%FS

Signal output mode

0.5-4.5VDC,0-5VDC,0-10VDC,4-20mA

Full-scale drift

＜±0.05%FS

Zero shift

＜±0.05%FS

Maximum power

Current mode≤0.02U（W）Voltage type load=≤0.006U（W）

Temperature error

＜±0.1%FS

（0°-50°）

Load characteristic

Current mode≤{（U-9）/0.02}Ω,Voltage type load=≥100kΩ

Environment parameter

Working temperature

-40℃~85℃

Vibration

20g,5-5000Hz（Random）

Compensation temperature

0℃-60℃

Shock

20g,11ms

Storage temperature

-40℃~85℃

Protection level

IP65
