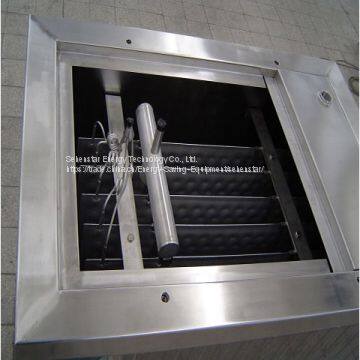

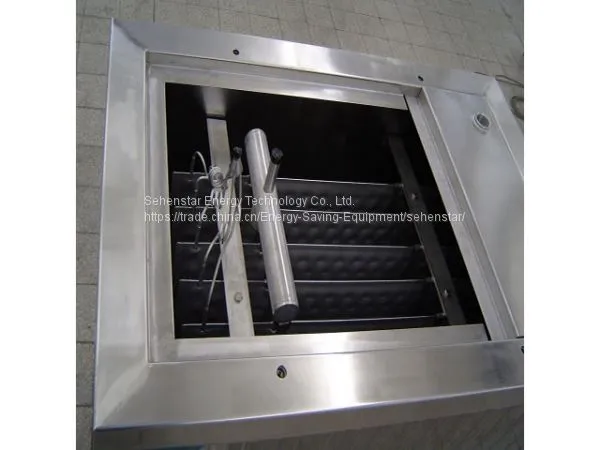

Hot Selling Laser Welding Plate Heat Exchanger Falling Film Water Evaporator Condenser

SPF falling film heat exchanger is applied for cooling large amount of water or other liquid to 0.5℃. It has high heat exchange efficient and operates stable and reliable as well. SPF falling film heat exchanger is based on world leading technology of laser welding pillow plate heat exchange technology. Pillow plates are arranged according to certain distances and form a parallel. Outside plates is the wider channel for one fluid, inside plates is the channel for another fluid to exchange heat. Pillow plate together with wide channel design not only makes high heat exchange coefficient possible, but also has remarkable technical advantages superior to traditional heat exchangers, including low pressure drop, high temperature and high pressure resistance and easy cleaning, apply to contaminated liquid or viscous liquid.

Application:

Cold storage of agriculture products

Poultry processing industry

Bakery processing industry

Food and dairy processing industry

Seafood processing industry

Meat processing industry

Beverage industry

Concrete cooling

Advantages of SPF falling film heat exchanger:

Laser welding pillow plate:

Heat exchange pillow plate is machined by full automatic laser welding and forming process. Its unique pillow structure makes fluid into optimum turbulence state to achieve high efficient heat exchange. It also boasts various advantages such as dust proof, high temperature and high pressure resistance and easy cleaning, etc.

Pillow plate concept:

Pillow plate is laser welded by two plates all around and in the middle area full of weld flowers. After the forming process, the inner part of the heat exchange plate forms a pillow type cavity. Pillow design creates excellent turbulence and provides self supporting structure. In practical applications, the additional welding path is often added in the pillow heat exchange plate, in order to adjust and control the flow of fluid into and out of the heat exchange plate nozzle position, the fluid velocity and flow rate inside plate, so as to optimize the heat exchange effect.

Pillow plate Advantages:

1) Excellent turbulence design, high heat exchange coefficient

2) High welding realiability

3) Small external surface resistance, not easy to product dirt

4) High temperature and high pressure resistance

5) Wide channel, low pressure drop, easy to clean

6) Flexible shape to maintain optimal heat exchange effect
