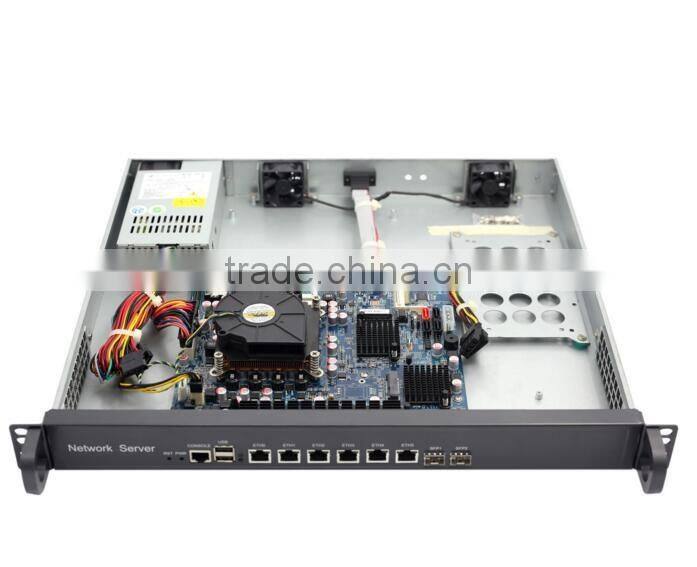

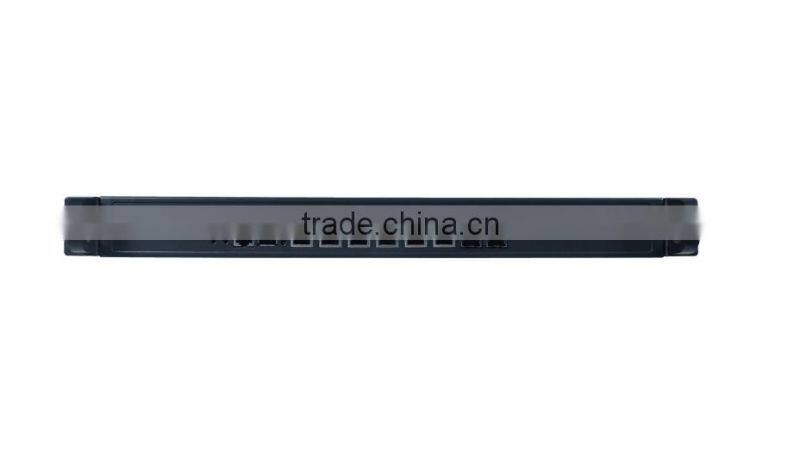

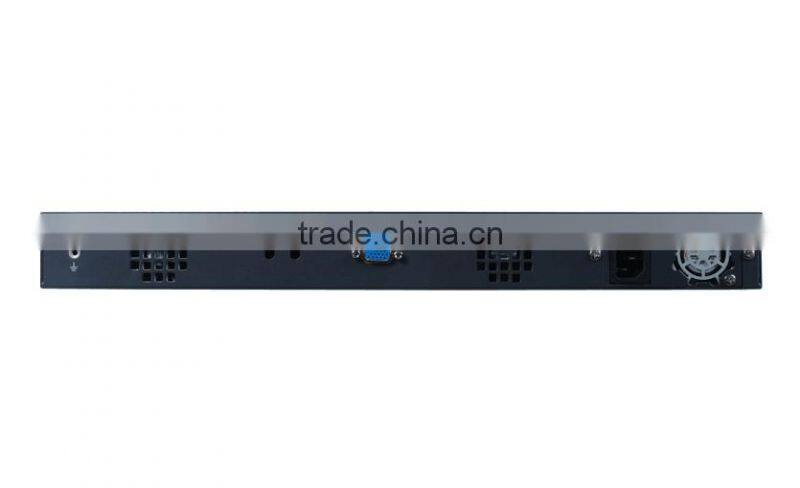

6LAN Intel B75 Embedded Firewall Mini PC

Shenzhen Capital Electronics Co., Ltd.

Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)

Key Specifications

Products Status:

Stock

Place of Origin:

Guangdong, China

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

Delivery time depends on order quantity.

Products Status Stock

Place of Origin Guangdong, China

processor	CPU	Support intel Sandybridge /Ivy Bridge/32nm /22nm processor
	Speed
	Chipset	Intel B75
	TDP
Memory	Slot	2*SO-DIMM,DDR3 160013331066MHz Memory
Memory	Capacity	MAX TO 16GB
Storage	Chipset	3SATA2.0 1SATA 3.0
		1*MSATA
		1MINI PCIE support wifi 1SIM 1*CF
Display	Chipset	Depend on cpu
Display	Output	VGA header
LAN	Chipset	6*Intel 82574 1000M
LAN	Connector	6RJ45 2SFP fiber-optical
Audio	Chipset
Audio	Connector
I/O	Com	1*RJ45 to com
	LPT	1*LPT Header
	USB	2USB2.0 connector,2USB2.0 header(expand to 4*USB2.0 connector)
	GPIO	1*GPIO header
	Header	14pin ATX 124pin ATX 1IDE-PWR 2USB2.0 header (expand to 4USB 2.0) 112PIN VGA header 1LPT header 1GPIO header 1PS/2 header 1COM header 1F-PANEL header 1-6 LAN-LED header 1 CLR_CMOS jumper 1SATA-PWR header 2SYS-FAN header 1*DEBUG-CON
Power	Power supply	ATX 24+4 PIN
OS		WIN7/WIN8/WIN XP /LINUX
BIOS		AMI BIOS
Working environment	Working temp	-10~60℃
	Storage temp	-10~70℃
	Relative humidity	5%~95% non-condensing
Form factor	Size	230*230MM
