2017 Hot selling water supply and drainage PVC UPVC pipe extrusion line

1. Introduction of Tongsan PVC UPVC CPVC pipe making machine

SJPGZ series PVC pipe extrusion machine is used for manufacturing PVC pipes of different diameter and wall thickness which are mainly used applied to agricultural and construction water supply and drainage, overthread or underground wire and cable. Due to the special characteristics of the CPVC pipes they are widely used in the fields of crude oil transportation, pipe lines of chemical industry which require high temperature and corrosion resistance, hot and lukewarm water supply and drainage system, directly buried pipes of high and extra high voltage electricity, protection sleeves of wires and cables, etc.

2. Features of PVC UPVC CPVC pipe making machine

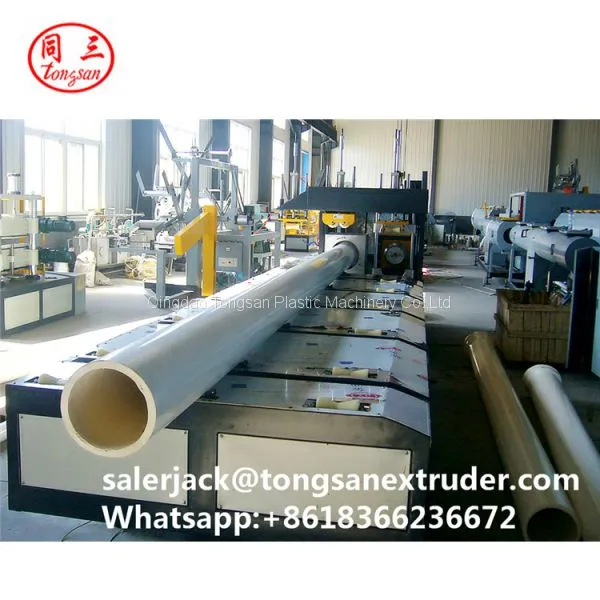

This PVC CPVC pipe extruder machine consists of conical (parallel) double screw extruer, vacuum sizing platform, tractor, cutting machine, stacker, etc.

The extruder and tractor adopts AC frequency control or British Euro DC speed regulator.

Vacuum pump and tractor adopts high quality product. Tractor can be divided into up and down pedrail, three claw, four claw, six-claw etc. In terms of thickness and diameter of the pipes.

The cutter also two cutting types, blade and planet. Additionally, the metering device is equipped. The property of the production line is reliable and the output is high.

In accordance with different requirements if the clients, the company will equip the extrusion line with specific devices to form pipe production lines of inner-wall spiral pipes, inner hollow wall pipes and inner layer foaming pipes.

Process Flow

Material -Mixer -Forced Feeding -Conical double screw extruder -mould calibrator -vacuum spay cooling tank -printer-haul-off -cutter -stacker-pipe belling machine
