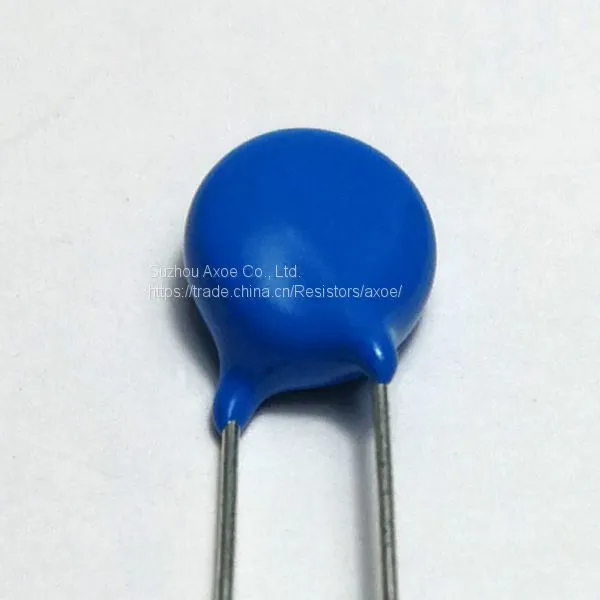

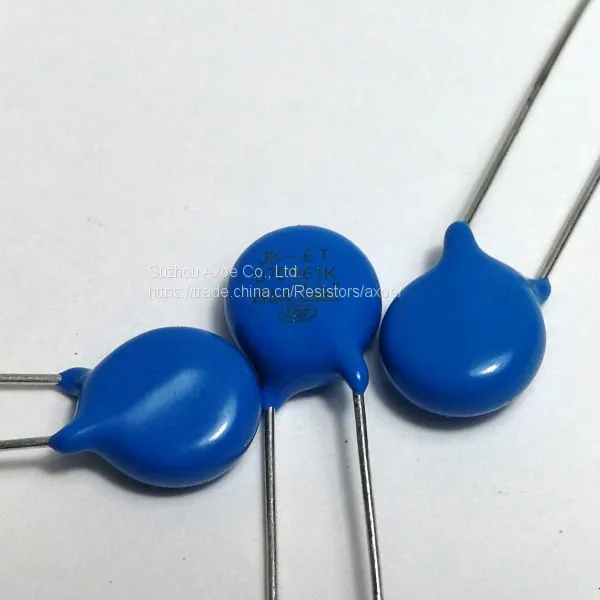

Metal Oxide Varistor radial lead disc ceramic blue epoxy 07D561K/560VAC varistor for surge voltage protection

Model No.: 07D561K-240

Certificates: UL, CSA, VDE, CQC

Specification:

Rated Voltage: 560V

Tolerance: +/-10%

Max. allowable voltage: 350VAC/460VDC

Max. clamping voltage:920V

Max. energy (10/1000μS): 58J

Withstanding surge current(8/20μS): 1200/600

Lead configuration: Straight/Outside Kink/Inside Kink/Vertical Kink to be option

Lead spacing: 5.0mm

Operating temperature range:-40 ℃ ~ +85℃

Temperature coefficient of clamping voltage: 0 ~ 0.05% / ℃

Storage temperature : -40 ℃ ~ +125℃

Hi-pot encapsulation : 2000V

Expoxy coating Insulation resistance: > 1,000 M ohmic
