Home > Electrical & Electronics > Passive Components > Resistor & Potentiometer > Disc Resistors, 07D511K, 510V+/-10%, Metal Oxide Varistors

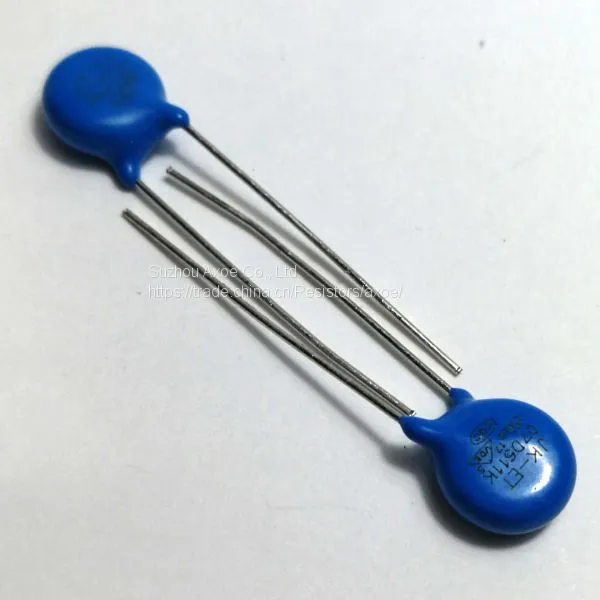

Disc Resistors, 07D511K, 510V+/-10%, Metal Oxide Varistors
US$ 0.0116 - 0.0131
MOQ: 1000 Pieces
Key Specifications
Get Latest Price
Place of Origin:
China
Model Number:
07D511K-240
Type:
Varistor
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
10 days
Related Products
-
Metal Oxide Varistor Radial Lead Disc Ceramic Blue Epoxy 07D561K/560VAC Varistor for Surge Voltage ProtectionUS$ 0.0113 - 0.0135MOQ: 1000 Pieces -
Varistor, Metal Oxide Varistor, MOV, 10D471K Disc. Ceramic ResistorsNegotiableMOQ: 1000 Pieces
-
Varistor, Metal Oxide Varistor, MOV, 14D511K Disc. Ceramic ResistorsNegotiableMOQ: 1000 Pieces
-
Varistor, Metal Oxide Varistor, MOV, 14D561K Disc. Ceramic ResistorsNegotiableMOQ: 1000 Pieces
-
10D470V Metal Oxide Varistor for Circuit Surge Protection, MOV VaristorNegotiableMOQ: 1000 Pieces
Place of Origin
China
Model Number
07D511K-240
Type
Varistor
Rated Power
0.25w
Operating Temperature
-40 ℃ ~ +85℃
Package Type
Throught Hole
Resistance Tolerance
10%
Resistance
1000 M ohmic
Technology
Metal Oxide
Temperature Coefficient
0 ~ 0.05% / ℃
Model No.: 07D511K-240
Certificates: UL, CSA, VDE, CQC
Specification:
Rated Voltage: 510V
Tolerance: +/-10%
Max. allowable voltage: 320VAC/415VDC
Max. clamping voltage: 845V
Max. energy (10/1000μS): 56J
Withstanding surge current(8/20μS): 1200/600
Lead configuration: Straight/Outside Kink/Inside Kink/Vertical Kink to be option
Lead spacing: 5.0mm
Operating temperature range:-40 ℃ ~ +85℃
Temperature coefficient of clamping voltage: 0 ~ 0.05% / ℃
Storage temperature : -40 ℃ ~ +125℃
Hi-pot encapsulation : 2000V
Expoxy coating Insulation resistance: > 1,000 M ohmic
