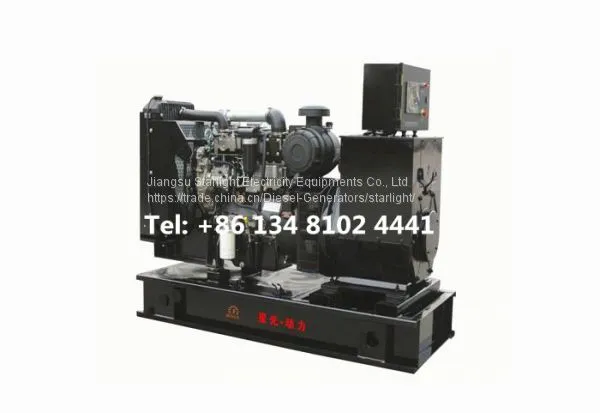

[Hot Item] High Power Perkins Power Generator/Diesel Generator 1200KW/1500KVA Open Type

Diesel Generator Set Data

Manufacturer: Jiangsu Starlight Generating Equipments Co.,Ltd

Set Type: XG-1200GF

Prime Power: 1200KW/1500KVA

Rated Current: 1964(A)

Rated Frequency: 50（Hz）

Start-up time: 5～6（s）

Power Factor: 0.8（Lag）

Rated Voltage: 400/230（V）

Standard Features

Engine: PERKINS 4012-46TAG2A

Radiator 50℃ max

Fans are driven by belt, with safety guard

24V charge alternator

Dry type air filter, fuel filter, oil filter

Alternator: single bearing alternator

IP23, insulation class H/H

Main line circuit breaker

Standard control panel

Absorber

Muffler

User manual

Diesel Engine Data

Manufacturer:  PERKINS

Model: 4012-46TAG2A

Output Power: 1394KW

Rated Speed: 1500（r/min）

Cycle: 4 stroke

Cylinder Arrangement: 12in line

Displacement: 45.84L

Bore and Stroke: 160*190（mm）

Compression Ratio: 13.0:1

Governor Type: Electronic

Start battery voltage: 24V DC

Air Intake System

Air Intake System: Turbo

Burning Capacity: 92m³/min

Air Flow: 1020 m³/min

Exhaust System

Exhaust Gas Flow: 260 m³/min

Exhaust Temperature: 425℃

Max Back Pressure: 10.2kpa

Fuel System

Fuel System: Direct injection

100%( Prime Power) Load: 209g/kwh

50%( Prime Power) Load: 224g/kwh

Cooling System

Cooling Way: Water-cooled

Total Coolant Capacity: 207L

Thermostat: 71-85℃

Max Water Temperature: 101℃

Alternator Data

Manufacturer: STARLIGHT/STAMFORD/SIEMENS/MARATHON/ENGGA/KEPU

Excitation Mode: Brushless and self- exciting

Number of phase and Access Act: 3-phase 4-wire

Connecting Type:“Y” type connecting

Alternator Capacity: 1500KVA

Alternator Efficiencies: 95％

Overload:（PRP）110% load can run 1h

Protection Level: IP22-IP23

Insulation Class, Temperature Rise: H/H

Telephone Influence Factor (TIF): ＜50

THF: ＜2%

Voltage Regulation, Steady State: ≤±1%

Air Cooling Flow: 0.216m3/s

Altitude: ≤1000m
