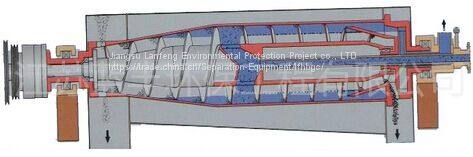

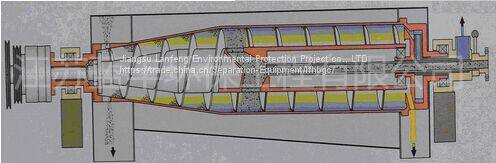

Principle of work
1、Solid - liquid - liquid separation
The Working Principle of Three-phase Separation Type Horizontal Spiral Discharging Sedimentation Centrifuge is similar with the Plain Type one. When two kinds of liquid and one kind of solid flows into the centrifuge, expanding thousands of times by using the solid - liquid- liquid weight difference and relying on centrifugal force field, then the solid phase is subsided under the action of centrifugal force, two kinds of liquid is layered, in order to achieve the solid - liquid- liquid three-phase separation, and flow out the organism respectively by the function of special organization. The whole charge in and separation process is continuous, airproof and automatic.
2、Solid - liquid - solid Separation
The Working Principle of Three-phase Separation Type Horizontal Spiral Discharging Sedimentation Centrifuge is similar with the Plain Type Centrifuge. When two kinds of solid and one kind of liquid flows into the centrifuge, expanding thousands of times by using the solid - liquid- solid weight difference and relying on centrifugal force field, then the heavy solid phase is subsided under the action of centrifugal force, liquid is layered, light liquid surface， in order to achieve the solid - liquid- solid three-phase separation, and flow out the organism respectively by the function of special organization. The whole charge in and separation process is continuous, airproof and automatic.
If you want to order, please specify the characteristics of the separated materials.
We accept the LWS series custom-made from 220 to 1600mm.
We accept different materials such as carbon steel, stainless steel
304, 321, 316L, double phase stainless steel 2205 and titanium.
