LiFePO4 battery 3.2v 80Ah Prismatic LiFePO4 Cell for UPS and electric bus

Our product details will be sent to you at once,if we can got your phone number and email. By the way,the latest industry news can be shared with you by phone.

LiFePO4 battery 3.2v 80Ah Prismatic LiFePO4 Cell for UPS and electric bus

Feature:

1. High-discharge rate(3C 240A)

2. Quality Lithium-ion cells with high power and energy density;Passed abuse tests of over-charge/discharge test, high-low temperature test, impact test and puncture test

3. With good safety performance, without problems of short-circuit, leakage, inflammation and explosion;
4. No memory effect, low self-discharge rate;
5. Long cycle life to over 2000 times or 3-5 years

LiFePO4 Prismatic Cell Rechargeable Lithium Battery 3.2V 80Ah

1)Model: 27135206

2)Nominal Voltag: 3.2V

3)Capacity Max: 80Ah

4)Charging Current Standard Charging: 80A (1C rate)

   Max. Charging: 25A (1C rate)

5)Max. Discharging Rate·  Max. Continuous Discharging: 3C

   Max. Peak Discharging: 5C

6)Cut-off Voltage Charging: 4.20V

   Discharging: 2.0V

7)Internal Resistance≤ 0.7mΩ  (At 0.2C rate, 2.0V cut-off)

8)Dimensions28.5*136*206.5mm

9)Working Temperature Charging:   0℃~45℃

   Discharging: -20℃~60℃

10)Storage Temperature ≤1month:  -10–45℃

                                         ≤3month:    0–30℃

                                         ≤6month:   20±5℃

11)Life Cycle>2000 times (80% of initial capacity at 1C rate)

12)Global Insurance: OEM/ODM

Application:

Widely used for Electric bicycle,golf car,electric wheelchair,power tools,scooter, UPS,Solar&Wind

energy storage system,EV,etc.

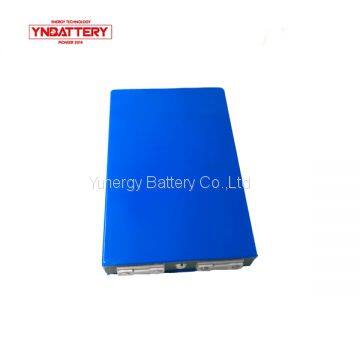

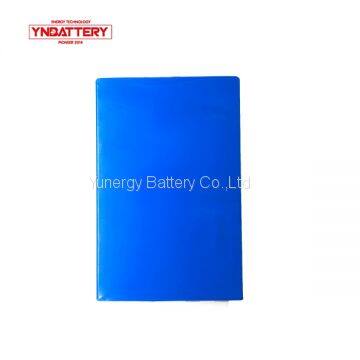

Photos Reference:
