Coin battery CR2016 3v LiMnO2 lithium ion no-rechargeable button battery 75mAh
Our product details will be sent to you at once,if we can got your phone number and email.By the way,the latest industry news can be shared with you by phone
3V lithium button cell battery CR2016 for car key battery
Specification of car key battery CR2016:
Model No.: CR2016
Dimension: H1.6*D20.0mm
MOQ:10000pcs
Packing: bulk pack or blister packing
Delivery time: within 7days
Warranty: 12 months
Both OEM and ODM orders are welcome.
Main features on 3V lithium button cell battery
Compact and lightweight;
Extremely high energy density per unit weight
Have higher volt and stable power supply quality
Extremly small self-discharge for long service and shelf life
A wide compact operational temperature range of -20°C~60°C
It has wide range of applications, optimum for memory and RTC backup
Chemical structure for CR2016:
Positive electrode-Manganese dioxide
Negative electode-Lithium
Electrolyte-organic electrolyte
Average weight: 0.8g

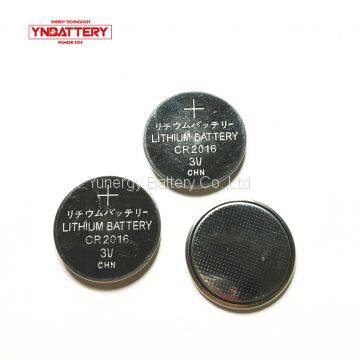

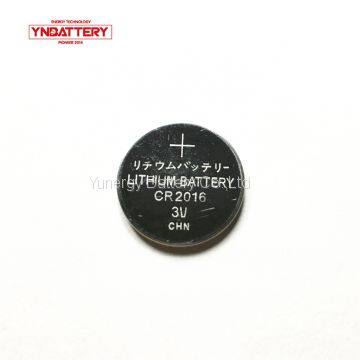

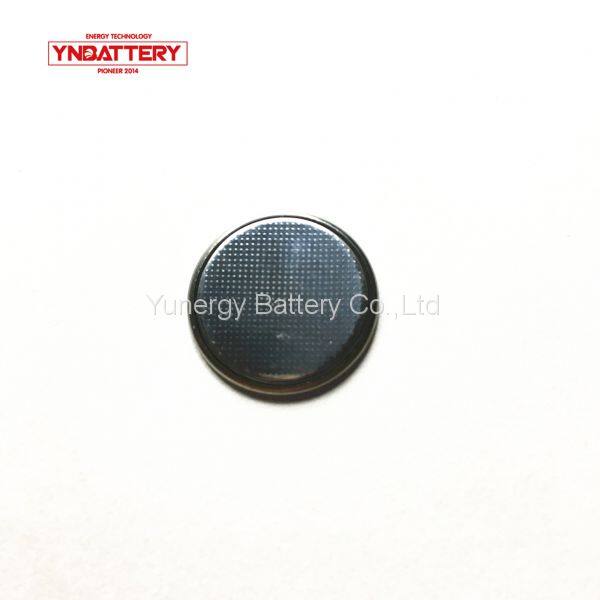

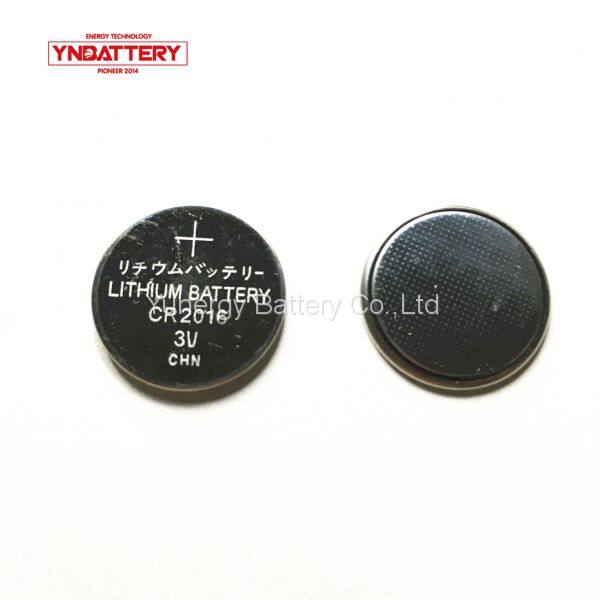

Product picture of car key battery CR2016
Other similar Lithium Manganese Button cells are showed as the following form:
| Model | Nominal | Dimensions | Discharge Characteristics(23°C) | Weight(g) | |||
| Nominal | Standard | High Drain | High Drain | ||||
| Voltage | W×H | Capacity | Current | Continuous | pulse | ||
| (v) | (mm) | (mAh) | (mA) | (mA) | (mA) | ||
| CR2032 | 3 | 20.0×3.2 | 210 | 0.4 | 3 | 15 | 3.1 |
| CR2025 | 3 | 20.0×2.5 | 150 | 0.4 | 3 | 15 | 2.4 |
| CR2016 | 3 | 20.0×1.6 | 75 | 0.4 | 2 | 10 | 1.6 |
| CR1220 | 3 | 12.5×2.0 | 40 | 0.2 | 1 | 5 | 0.8 |
| CR927 | 3 | 9.5×2.7 | 30 | 0.1 | 0.5 | 5 | 0.6 |
| CR1616 | 3 | 16.0×1.6 | 50 | 0.2 | 2 | 10 | 1.2 |
| CR2477 | 3 | 24.5×7.7 | 850 | 0.4 | 2 | 10 | 8.2 |
| CR2450 | 3 | 24.5×5.0 | 550 | 0.5 | 3 | 20 | 6.2 |
| CR2430 | 3 | 24.5×3.0 | 270 | 0.5 | 3 | 20 | 4.3 |
| CR1225 | 3 | 12.5×2.5 | 50 | 0.2 | 1 | 5 | 1.0 |
| CR732 | 3 | 7.5×3.2 | 28 | 0.1 | 0 | 5 | 0.5 |
| CR1216 | 3 | 12.5×1.6 | 25 | 0.2 | 1 | 5 | 0.7 |
| CR2 | 3 | 15.5×27 | 750 | 20 | 500 | 1000 | 13 |
| CR123A | 3 | 17.0×33.0 | 1300 | 20 | 1000 | 2000 | 20 |
