Sunflower Seed Vibration Screening Washing Equipment

Sunflower seed vibration screening washing equipment

The machine is the multi functional grain cleaner sorting separating dust machine which  selection rate of cereal seeds is more than 95%.This machine can separate the grain seed in three grades: big size, medium size and small size .it cleans dust, leaf, light impurities in the meantime.Multifunction machine is not only owning various processing function,but also it can apply to lots of materials,such as beans, cotton seed and camellia.

Feeding the grain material by grain auger /belt conveyor/ bucket elevator into the grain cleaner inside, the light impurities can be sucked out by air blower and top axial flow fan system; After that the gravity platform will make good seed and bad seed separate by different weight; The heavy seed move to the triple screen decks while the light bad seed go back and sucked out by back air blower system.

1st procedure for impurities removing and separation: Forced by the gravity and vibration, the grain materials is forward to the 1st screening surface for sieving and grading, and the impurities is backward to the impurities outlet.

2nd procedure for grain and impurities separation: The grain particles is sieved from 1st screen surface to the 2nd surface. The hole size of screen mesh is equal to the grain particle size, in this case, the small impurities and the broken grains will be sieved to the 3rd screen surface,the refined grain particles will forward to the finished product outlet for packing or conveying to the grain depot.

3rd procedure for tiny impurities and broken grain separation: The hole size of the 3rd mesh is only for passing the tiny impurities and food debris and then to the impurities outlet. And the small grain particles will forward to the outlet for bagging.

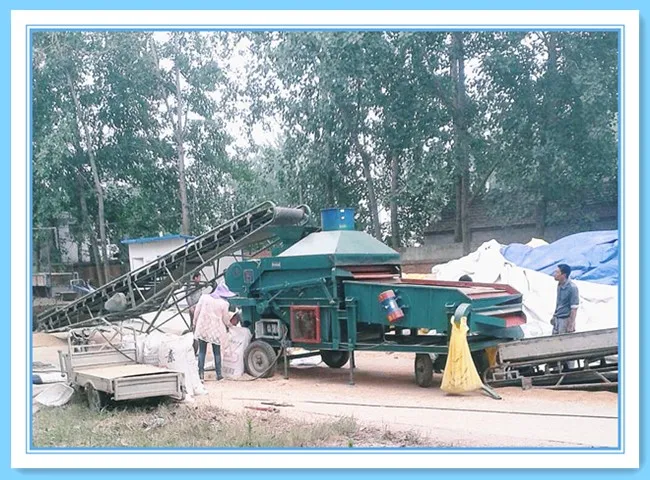

Working Site





      Material: Paddy

      Capacity: 18-20 ton per hour

      Feeding Method: By belt conveyor

      Machine Structure:

      Gravity Separator Platform;

      Triple Screen Layers.

      Air Blower

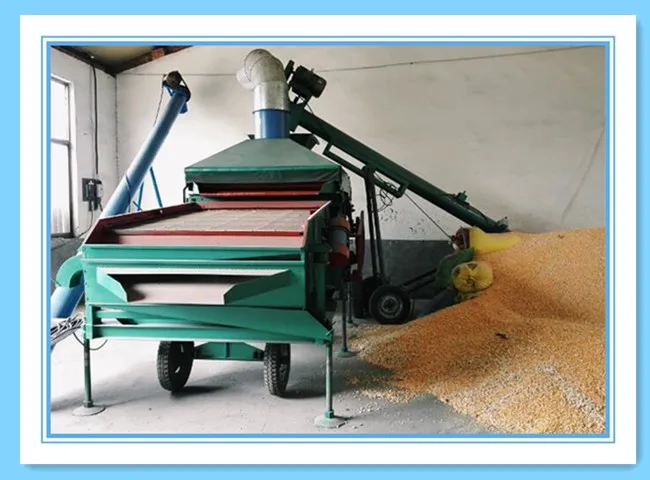

Material: Maize Corn
Capacity: 18-20 ton per hour
Feeding Method: By grain auger

Machine Structure:
Gravity Separator Platform;
Triple Screen Layers.
Air Blower

Packaging
Size	MM:5010(L) * 2100 (W) * 1950 (H)
Weight	1.9T
Packaging Details	Bulk Packing; Machine size just exactly suitable loaded in to 20 feet container.





 Hey! Look there.

• Please kindly tell us the following answers when you send us inquiry:

• For more information on Sunflower seed vibration screening washing equipment just contact us freely by:

E-mail: cnhongyuan at

Mob/Whatsapp/Wechat: +8615560250277

Contact person: July
