Home > Products > LCD CCTV monitor > 46inch LCD Video Wall With Hdmi Video Wall Processor(HQ460-V,support Touch and Pc)

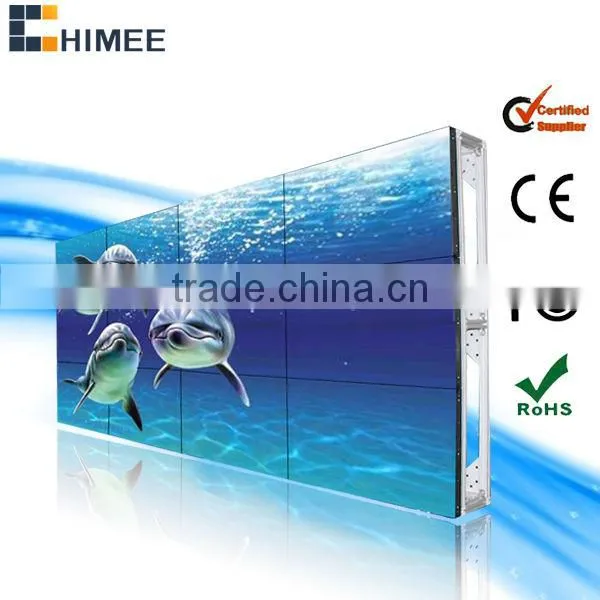

46inch LCD Video Wall With Hdmi Video Wall Processor(HQ460-V,support Touch and Pc)

Name: 46inch LCD Video Wall With Hdmi Video Wall Processor(HQ460-V,support Touch and Pc)
Brand: Chimee
Availability: InStock

FOB Price

US$ 499 - 9,999 / Unit

1 Unit(Min. Order)

Port shenzhen
Payment TermsCredit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Guangdong, China	Brand Name	Chimee
Model Number	HQ460-V	Type	Other, DID Screen
Application	Indoor	Panel Size	46 jnch
Max Resolution	1920 x 1080	Viewing Angle	178°/178°(H/V)
Pixel Pitch	0.4845(H)*0.4845 (V)	Color	16.7M
Contrast Ratio	4000:1	Brightness	450cd/m2
Response Time	6ms	Input Voltage	AC100~240V 50 /60 HZ, AC110V-240V, 50/60HZ

Product Description

Buying Guides

Product Model:

HQ460-V

46inch LCD video wall with hdmi video wall processor(HQ460-V,support touch and pc)

Product Pictures:

Panel Specifications:

Specifications
Model No.	HQ460-V
Panel Size	46'' Samsung DID LCD Screen(narrow bezel 5.3mm)
Aspect Ratio	16:9
Max Resolution Support	*19201080**
Color	8Bit,16.7M
Brightness (nits)	700cd/m2,500cd/m2
Contrast	4000:1
Visual Angle (H/V)	178
Response Time	<=6ms
Life(hrs)	>60,000(hrs)
Video Wall Processor Secifications

Input

CVBS

3*BNC inputs, support PAL/NTSC, 2*BNC loop outputs

VGA

1* D15 port, support SVGA/XGA/WXGA

YPbPr

1* YPbPr Input, Support PAL/NTSC

Y/C

2* BNC inputs, support PAL/NTSC

Output

LVDS

Support single or double LVDS output, and WUXGA(1920*1080)

Operate Mode

Panel key operation (Need customization)

Infrared Remote Control Operation

Standard RS232 port (provide free control software)

Engineering Software

Customized

Temperature

-20°C ~ 50°C

Humidity

5% ~ 95%

Power Supply

AC 110V ~ 240V, 50/60Hz

Power Consumption

Max 300W, according to different screen models

Processor Size

307×282×53.8 (mm)

Weight

19Kg to 45Kg

Product Features:

1.Narrow bezel design ---Industrial grade LCD panel ,high quality ,Practical ,good vision effect.

2.Signal interface rich --- RS232, HDMI,DVI,VGA,Y Pb Pr ,AV

3.HD video wall unit--- High brightness,high contrast,High gamut .

4.Flexible structure design ---easy installation ,extensible,arbitrary combination

5.table performance,suitable working for a long time

Product Functions:

Video wall Project:

Video Wall Application :

Product Package:

Product Certification:

A/S Terms:

1. Online technical support with Skype, Yahoo messenger, MSN, Teamview etc.

2. Free spare parts shipping, after checking by pictures and videos, if we confirm the damage not cause by human, we will ship spare parts to do the replacement for free.

3.Online support and sending user manual for buyer's technician to do the replacement of the damage parts.

♥ If you want to know more about our products and company, welcome to contact us at any time. ♥

Hot-line: 0086-15818572697

Skype ID: lizchimee

Chimee has own factory,can also support OEM and Customization sevice.
