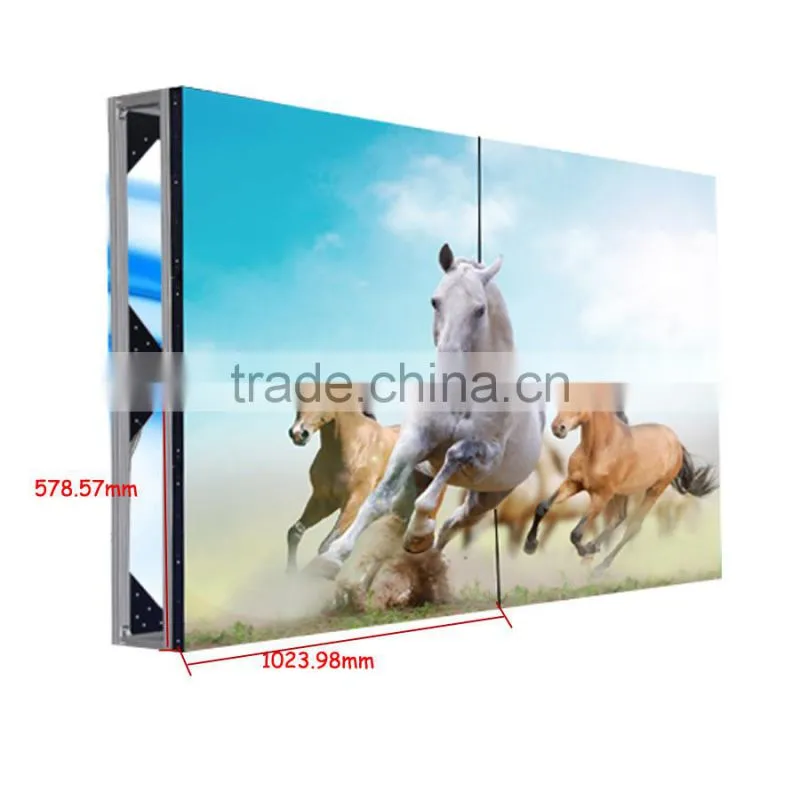

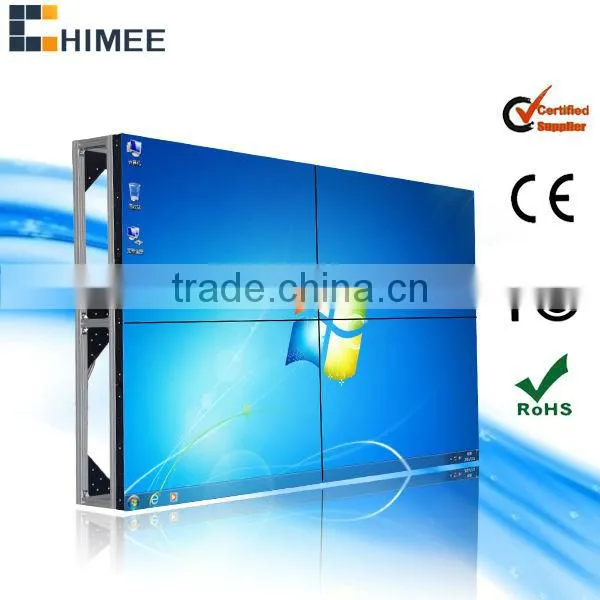

46inch full color backlit led DID lcd screen indoor video wall (HQ460-V,2X2 models,5.3mm or 6.7mm)

FOB Price

USD $1,500 - $10,000 / Set

1 Set(Min.Order)

Port shenzhen
Payment TermsCredit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Guangdong, China		Brand Name	CHIMEE
Model Number	HQ460-V		Type	TFT

Product Description

Specifications

46inch full color backlit led DID lcd screen indoor video wall
tal outer frame
2.SAMSUNG DID LCD Screen

product name: 46inch full color backlit led DID lcd screen indoor video wall (HQ460-V,2X2 models,5.3mm or 6.7mm)

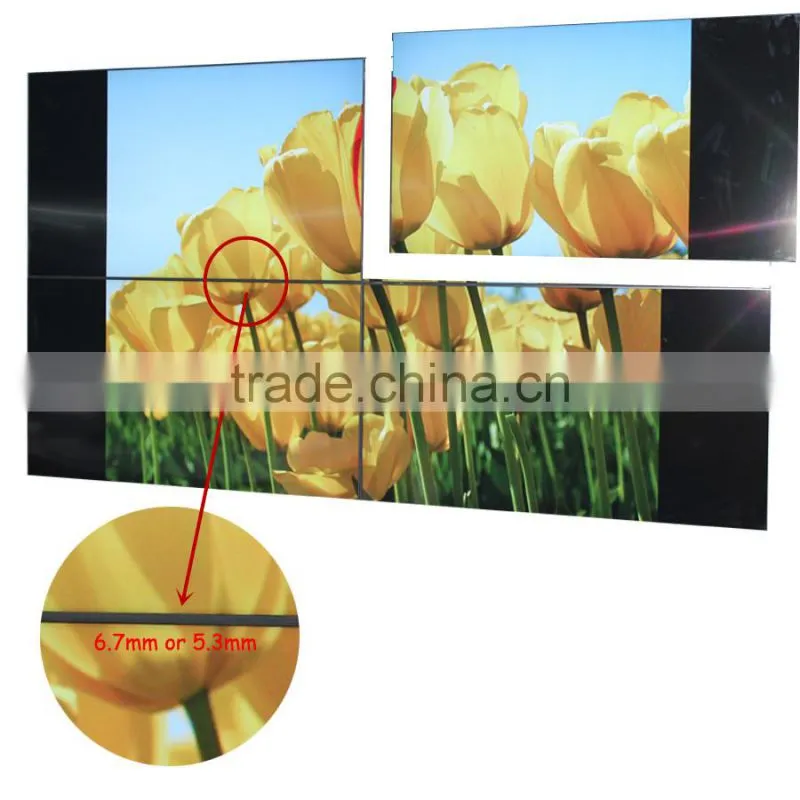

narrow bezel 6.7mm(450cd/m2 or 700cd/m2 )or 5.3mm( 450cd/m2 or 700cd/m2)

Model NO HQ460-V

Panel size 46'' Samsung DID LCD Screen (narrow bezel 6.7mm&5.3mm)

Aspect Ratio 16:9

Max Resolution Support 1920*1080

Color 8Bit,16.7M

Brightness (nits) 450cd/m2 or 700cd/m2

Contrast 4000:1

viewing angle(HxV) 178°

Response Time 5ms

panle life >50,000hours

Panel Brand DID LCD Screen

Active Area 1018.08(H) x 572.67(V)

backlight LED

HDMI Input 1

VGA Input 1

DVI Input 1

Composite Video Input/Output(AV) BNCx2

Control Signal input and loop out RS232(RJ45-8)

Split Screen Support Picture in Picture

	D525	I3	I5	I7
CPU	Intel Atom D525 (Dual Core)	Inte i3 (Dual Core)	Intel i5 (Quad Core)	Intel i7, Quad Core
RAM	DDR III / 1333 / 2G (Up to 4GB)	DDR3 / 4GB / 1333MHz (Up to 16GB)	DDR3 / 4GB / 1333MHz (Up to 16GB)	DDR3 / 8GB / 1333MHz (Up to 16GB)
Chipset	NVIDIA ION2 Chipset	H61 Chipset
Graphics	NVIDIA GT218	Integrated with CPU
H.D.D.	320G HDD or 64G SSD
NIC	10/100/1000M Auto-adjust Gigabit Ethernet Controller
Wi-Fi	150Mbps 802.11n Wi-Fi Integrated
Audio	HD 8 channel audio system
Speaker	2 build-in high quality stereo speakers (3w or 5w)
O.D.D	DVD-RW (Optional)
Mouse/Keyboard Bluetooth suit	Optional
Tv tuner	optional
Pre-Installed OS	Windows 8/ VISTA / 7 or Linux (Setting Official Version will be added extra cost)

Input

CVBS

3*BNC inputs, support PAL/NTSC, 2*BNC loop outputs

VGA

1* D15 port, support SVGA/XGA/WXGA

YPbPr

1* YPbPr Input, Support PAL/NTSC

Y/C

2* BNC inputs, support PAL/NTSC

Output

LVDS

Support single or double LVDS output, and WUXGA(1920*1080)

Operate Mode

Panel key operation (Need customization)

Infrared Remote Control Operation

Standard RS232 port (provide free control software)

Engineering Software

Customized

Temperature

-20°C ~ 50°C

Humidity

5% ~ 95%

Power Supply

AC 110V ~ 240V, 50/60Hz

Power Consumption

Max 300W, according to different screen models

Processor Size

307×282×53.8 (mm)

Weight

19Kg to 45Kg

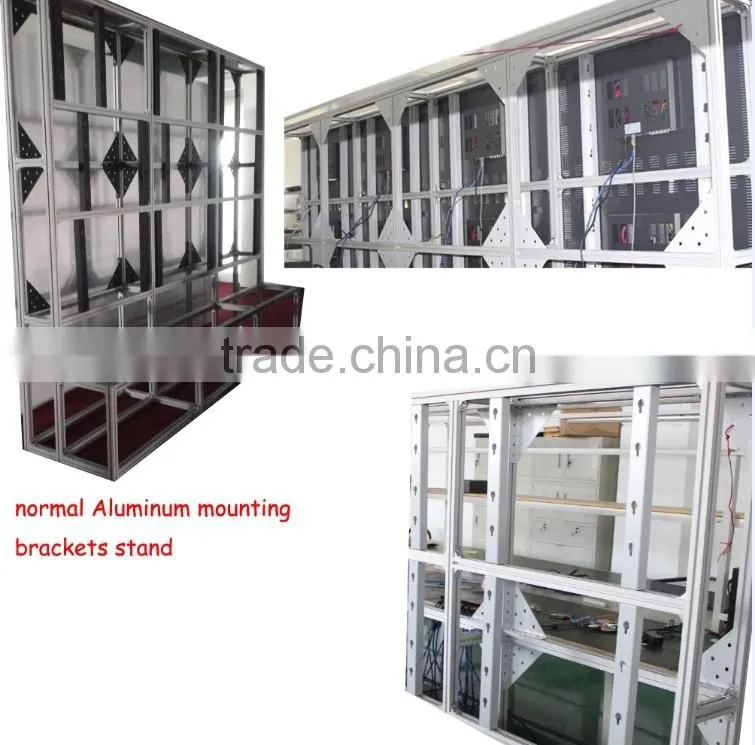

2kinds of mounting brackets optional

one:

Two:

Packaging & Shipping

FAQ

1.Q:what HS code for LCD monitor ?

A:85285110 lcd monitor

2.Q:how long is your warranty? And what’s the detail content?

A:one year warranty from the shipping date. And it is ok upgrade to two or three years guarantee with additional cost

Under guarantee: Free spare parts shipping, after checking by pictures and videos, if we confirm the damage not cause by human, we will ship spare parts to do the replacement for free.

Out of guarantee: we offer repairing parts at lower cost, and service free in charge.

3Q:what payment can you accept?

A:HSBC T/T,western union,paypal

For sample order:100% payment

For bulk orders:30% deposit in advance to start the production. balance payment clear before the delivery.
