Crop Grain Rapeseed Inclusion-free Screening Machine

Crop grain rapeseed inclusion-free screening machine

There are three layers of sieve bottom of this machine. At first,the front screen will sort out the dust and samilar impurities. Then the main fan will select at last part. After the grains finished cleaning, it will be casted out by Grain Casting Machine to realise sort out the stone and mildew grains. This machine also solves the question of feeding grains after screened. First layer is for the big impurity, second layer for small impurity, three layer is for half a grain, and fourth layer for sand etc.

The grain granule can be thrown straight line shape, throwing distance can reach 6-8 meters, the machine without food conveyor belt can be directly run into the house of the rolls, it is also called "grain thrower without wind".

This new type grain winnowing machine is suitable for grains corns wheat sorghums millets rapeseeds sunflower seeds,beans and so on .It is widely applied in the livestock breeding, small farm, small feed producing cocompany,grain and cooking oil processing factory,wind plant,chemical plant and pharmaceutical factory etc.

1.With wheels , it is very easy to move .

2.With hand crank , you can use it for manual or electrie

3.The machine can be changed the punching mesh or the stainless steel mesh according to the grain granule size.

4.Multi-purpose by change the mesh or adjust the blowers so as to meet the different sieving or throwing demand.

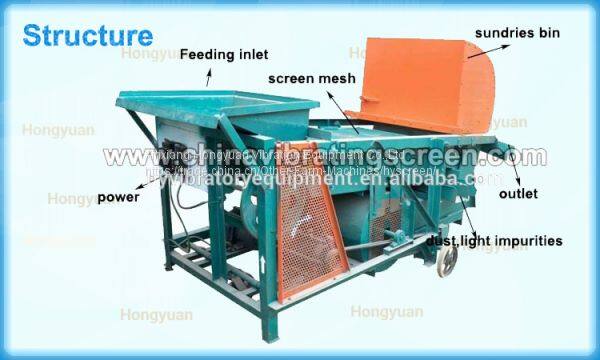

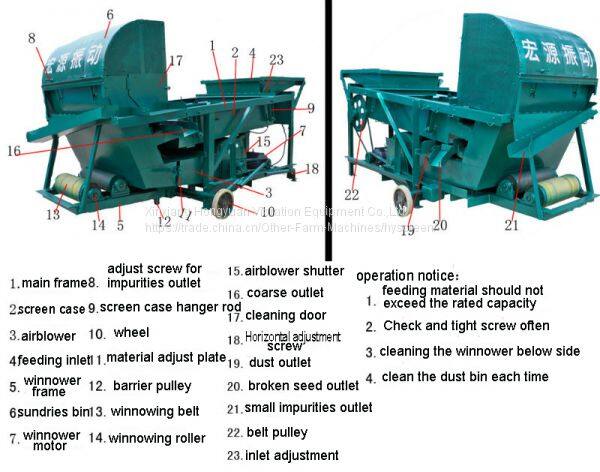

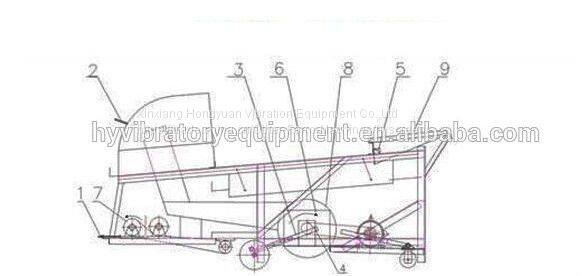

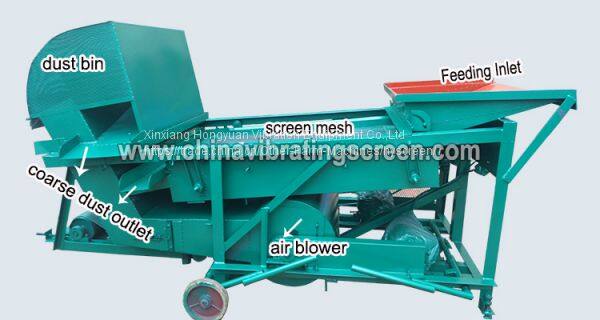

1.regulating screw                                                                           2.adjust the grains      3.handle

4. air controlling                                                                               5.feed regulator

6.motor reversal are strictly prohibited

7.grain throwing machine                                                                8.main air blower       9.feeding hole

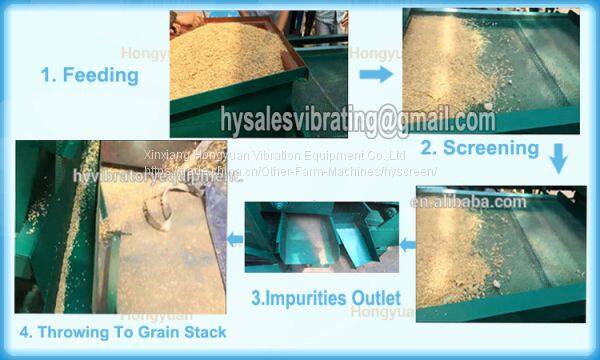

Working Principle

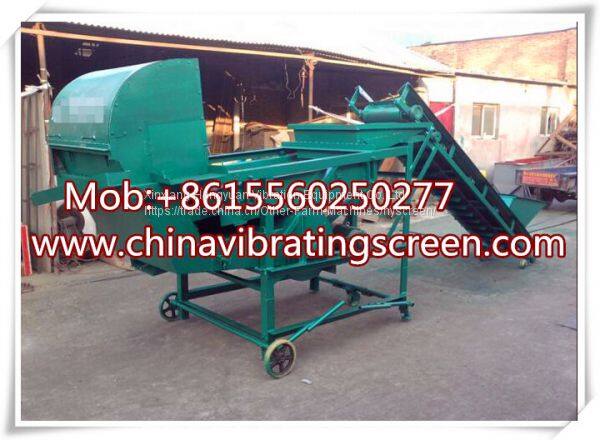

1.The grain is conveyed into feed hopper by belt conveyor or bucket conveyor and then flows from feed hopper to vibrating screen.

2.The vibrating screen is a triple-deck screen , grain on the screen cloths bounces forward.

3.The first layer screen sieves out the big corn cobs, corn cobs with niblet and pebbles and then the grain flows to the second layer screen.

4.The stones and lumps smaller than grains can be sifted out and flow out from the third outlet.

5.The grain on the second layer screen flows into the trash bin , and then the fan blows out the dust and stive in the grain.

6.The grain granule can be thrown straight line shape, throwing distance can reach 6-8 meters.

7.Finally the net grain flows out from the discharge hole .

8.It can be used for separating and removing the impurities from wheat, rice, corn, soybean and others kinds of grain.

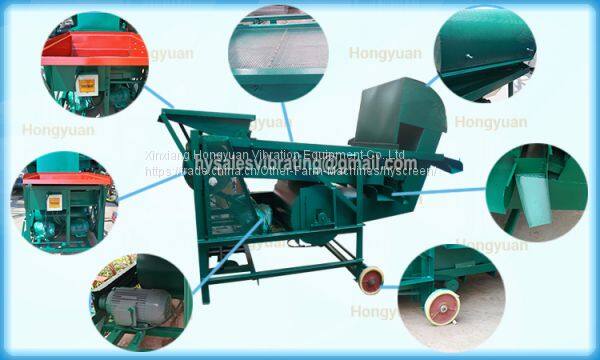

^{Detailed Images}

Packing & Delivery

Packaging Details:

In standard fumigation or wooden case or as your request

Delivery Detail:

7-15 working days after receiving your deposit

Note:

The HYL-8 grain seed screen cleaning machine is widely used for cleaning and grading agricultural products, such as grain seed, tree seed, grass seed, oilseed, commodity grain, etc
