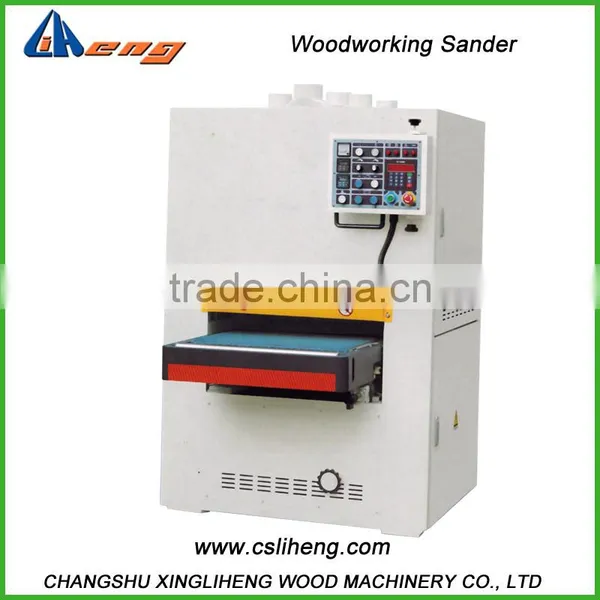

SRU630 Wide belt woodworking sander
woodworking sanding machine, sanding machine, woodworking machinery, sanding equipment, woodworking wide belt sander, wood sander, wood panel wide belt sander
Characteristics:
1. For model SRU630woodworking sander, sanding unit and hanging-pad adopt foundry frame, low noise and have good effect of vibration absorption to guarantee running smooth.
2. Sanding roller and polishing roller adopt frequency controller thru variable frequency motor to guarantee sanding of painting surface.
3. Polishing roller are independently adjusted to rise and fall, meanwhile equipped with sand belt cleaning device to better optimize polishing effect.
Technical parameters:
Model | SRU630 | SR-DU630 | SR-RRU630 |
Max. working width mm | 630 | 630 | 630 |
Working Thickness mm | 2.5~100 | 2.5~100 | 2.5~100 |
Working Length mm | >=280 | >=270 | >=260 |
Feeding speed m/min. | 6~20 | 6~20 | 6~20 |
Size of sanding belt (width*circumference) mm | 650*1650 | 650*1650 | 1030*1650 |
Dia. of roller mm | 190 | 190/190(3M) | 190/190 |
Total power KW | 7.445 | 12.445 | 12.96 |
Main motor power KW | 5.5 | 10.5 | 11 |
Air pressure mPa | 0.55 | 0.55 | 0.55 |
Consumption of compressed air m3/min. | 0.1 | 0.1 | 0.1 |
Dust collection volume m3/h | 5000 | 5000 | 5000 |
Dust collection speed m/s | 20~30 | 20~30 | 20~30 |
Dimensions (L*W*H) mm | 1236*1052*1690 | 1690*1560*1080 | 900*1120*1760 |
Net weight kg | 900 | 1100 | 1200 |
Factory View
