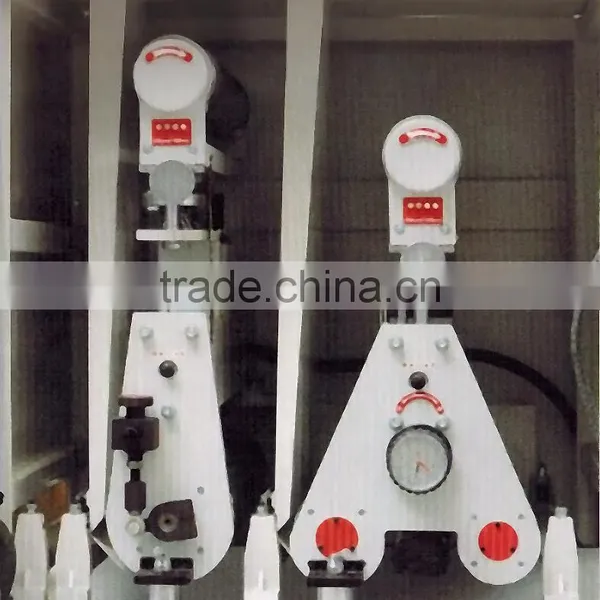

SRP630 Wide belt sander
Characteristics:
1. Model SRP630 is designed rationally in structure, belt unit adopt foundry frame, low noise, and have a good effect of vibration absorption, firm welding to guarantee running smooth.
2. Suitable for thickness abrasive belt grinding and surface polishing solid wood board, finger-joint board, artificial wooden board, flake board, composite flooring, veneer board etc.
3. Fault display makes maintenance and repair easy. When fault happens, the machine will be powered off, brake, the table fall and protect work pieces from being damaged.
Technical parameters:
Model | SR-RP630 | SR-P630 | SR-R630 | SR-R-RP630 |
Max. working width mm | 40~630 | 40~630 | 40~630 | 40~630 |
Thickness mm | 2.5~100 | 2.5~100 | 2.5~100 | 2.5~160 |
Length mm | >=460 | >=460 | >=460 | >=460 |
Feeding speed m/min. | 6~20 | 6~20 | 6~20 | 6~20 |
Size of sanding belt (width*circumference) mm | 650*1900 | 650*1900 | 650*1900 | 650*1900 |
Dia. of roller mm | 190/140 | 190/140 | 190/190 | 190/190/140 |
Total power KW | 20.43 | 20.43 | 23.93 | 31.43 |
Main motor power KW | 11/7.5 | 11/7.5 | 11/11 | 11/11/7.5 |
Air pressure mPa | 0.55 | 0.55 | 0.55 | 0.55 |
Consumption of compressed air m3/min. | 0.1 | 0.1 | 0.1 | 0.1 |
Dust collection volume m3/h | 5000 | 5000 | 5000 | 7000 |
Dust collection speed m/s | 25~30 | 25~30 | 25~30 | 25~30 |
Dimensions (L*W*H) mm | 1900*1120*1870 | 1900*1120*1870 | 1900*1120*1870 | 1900*1120*2370 |
Net weight kg | 1500 | 1500 | 1500 | 1750 |
